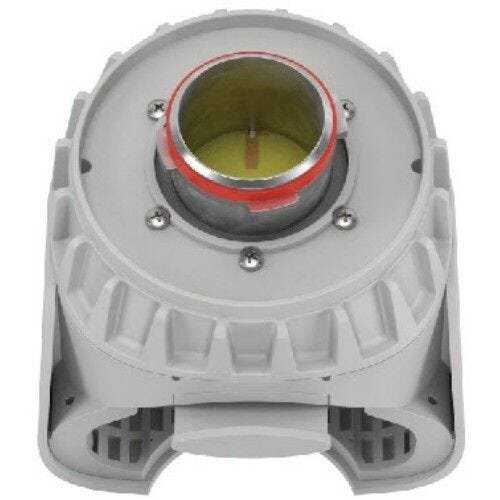

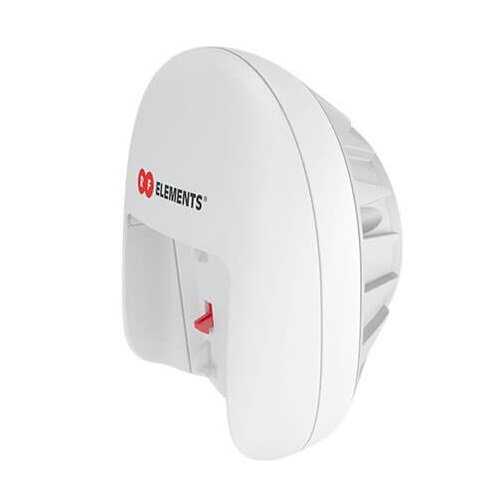

TwistPort™ Adapter V2This model, a member of the series, is used to quickly and securely integrate Ubiquiti Rocket 5AC-PTP/PTMP devices with TwistPort-compatible antennas.
No tools are required for assembly and disassembly; the Rocket device slides into place with a "click" sound to secure it and can be removed with a single button press.

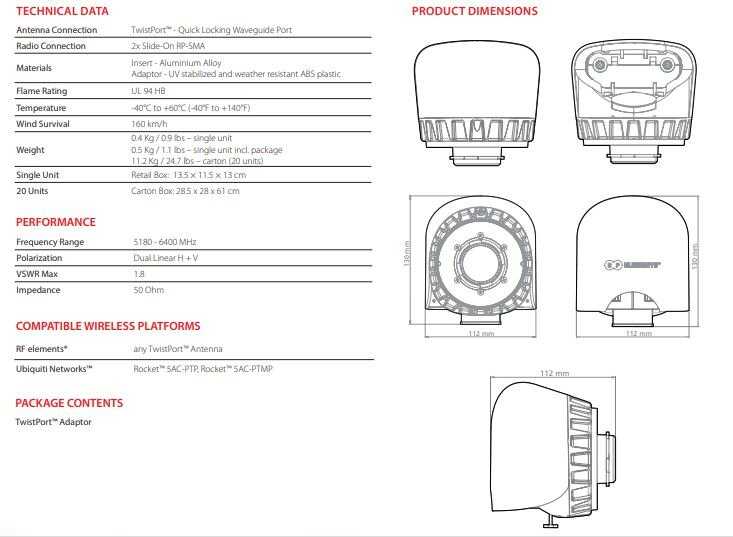

| Frequency Range | 5180 – 6400 MHz (ultra-wideband) |
| Polarizasyon | Dual Linear (H + V) |
| VSWR | Maximum 1.8, Typical 1.4 |
| Empedans | 50 Ω |
| Inter-Port Isolation | Approximately 37 dB |
| Malzeme | Insert – Aluminum alloy; Adapter body – UV resistant ABS plastic, UL 94 HB class |
| Operating Temperature | –40 °C to +60 °C |
| Wind Resistance | Maximum 160 km/h |
| Ağırlık | 0.4 kg (device), 0.5 kg (including package) |
| Boyutlar | Approximately 130 × 112 × 112 mm |
Ubiquiti Rocket 5AC-PTP/PTMPIt easily adapts your devices to TwistPort antennas; provides practical and quick installation.
It offers long-lasting use thanks to its UV-resistant material structure suitable for outdoor conditions.
It minimizes interference or signal loss with a wide frequency range and high isolation.
