TP-ADAP-R5AC-PRISM

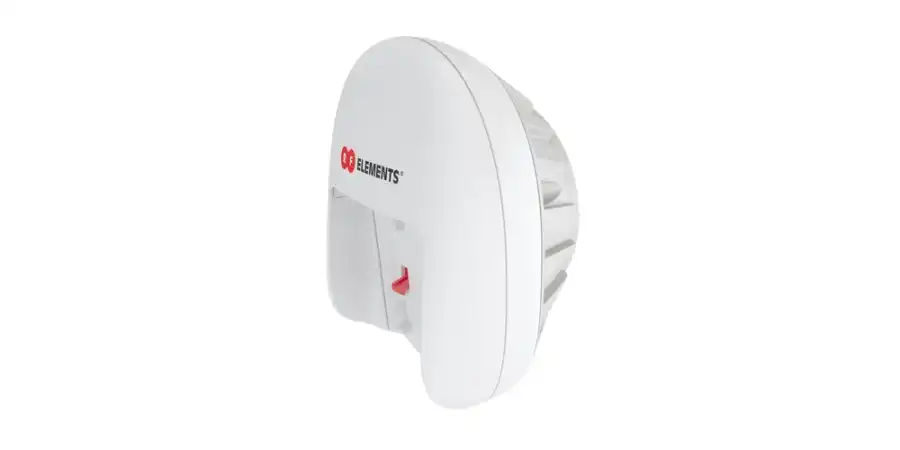

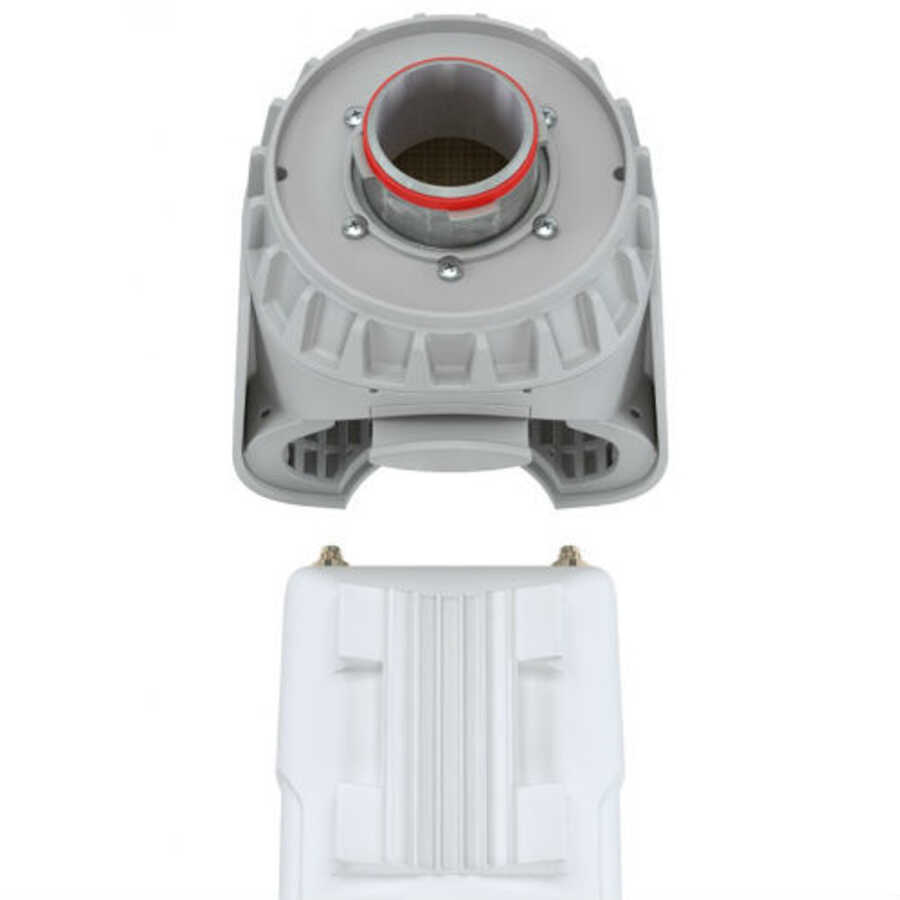

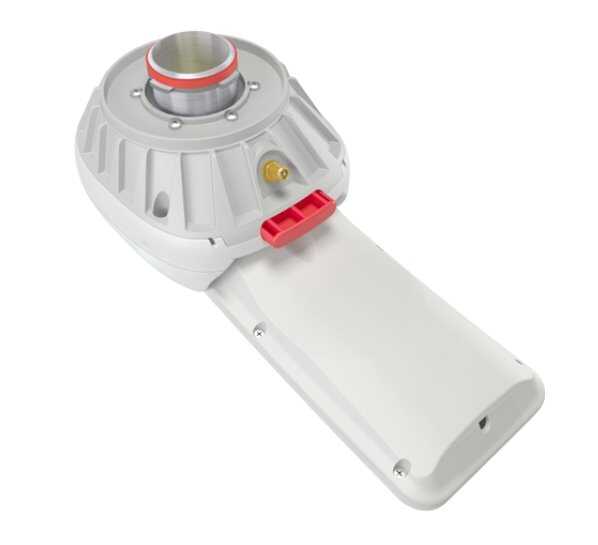

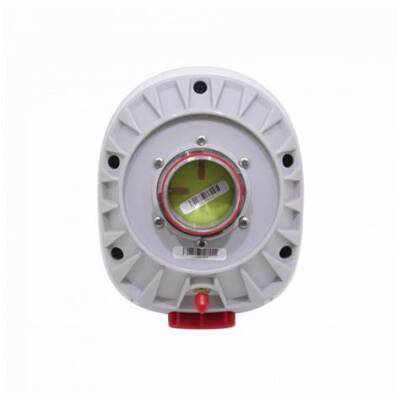

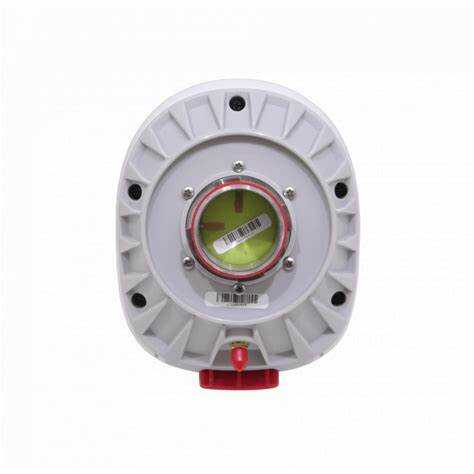

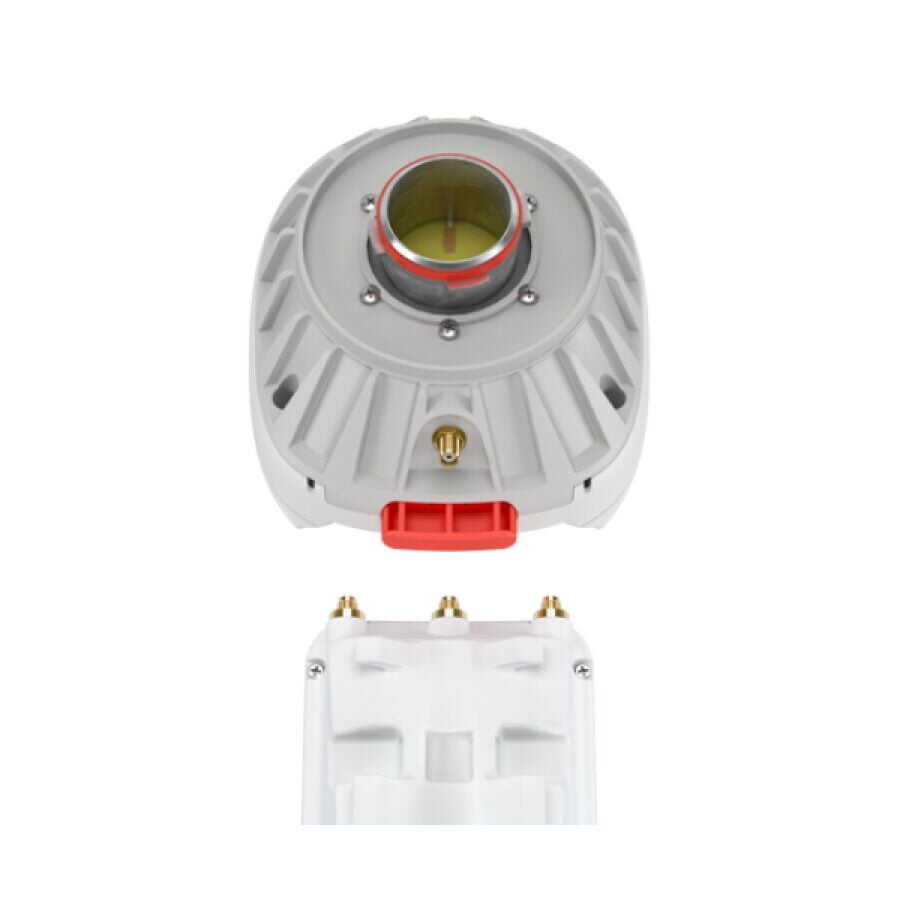

RF elements TP-ADAP-R5AC-PRISMIt is an adapter that makes Ubiquiti's Rocket 5AC Prism and Rocket Prism 5AC Gen2 devices compatible with RF elements' TwistPort™ antennas. This adapter provides flexibility and efficiency in network infrastructures by enabling quick and tool-free installation.

📡 Technical Specifications

• Frequency Range: 5180 – 6400 MHz

• Polarizasyon: Bilinear (H + V)

• VSWR (Max.)1.8

• Empedans: 50 Ohm

• Antenna Connection: TwistPort™ – Quick-Locking Waveguide Port

• Radio Connection: 2 × Slide RP-SMA and 1 × RP-SMA (for GPS)

• Malzeme:

  • Inner Part: Aluminum Alloy

  • Adapter: UV stabilized and weather-resistant ABS plastic

• Flame Resistance: UL 94 HB

• Operating Temperature: -40°C to +60°C

• Wind Resistance: 160 mph

• Ağırlık: 0.36 kg

• Boyutlar: 156 mm x 123 mm x 123 mm

✅ Featured Features

• Quick and Tool-Free Installation: Thanks to the TwistPort™ mechanism, the radio and antenna connection is fast and easy.

• High Compatibility: Ubiquiti Rocket 5AC Prism is compatible with Rocket Prism 5AC Gen2 devices.

• Durable Design: It offers high resistance against challenging external environmental conditions.

• High Performance: It provides efficient signal transmission with a low VSWR value and 50 Ohm impedance.
