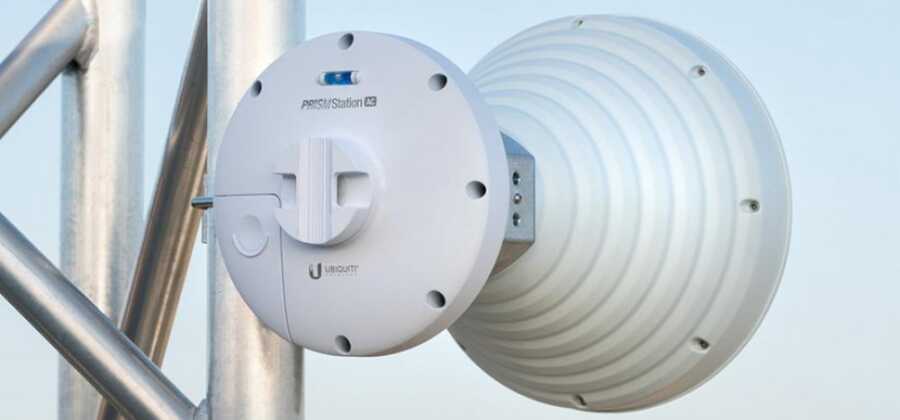

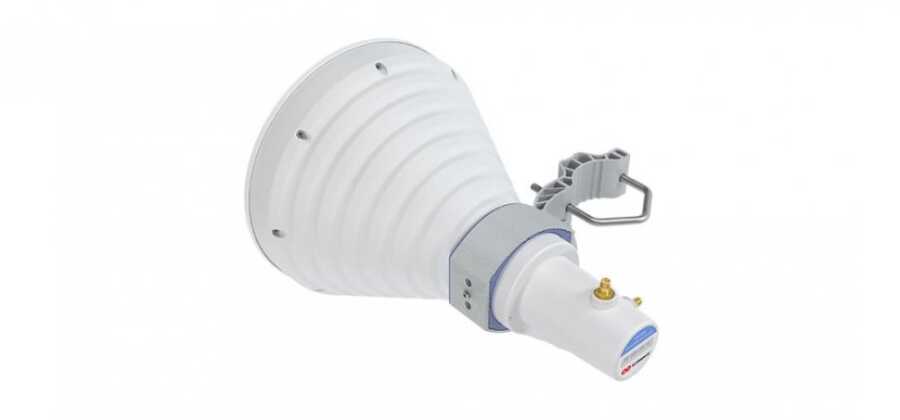

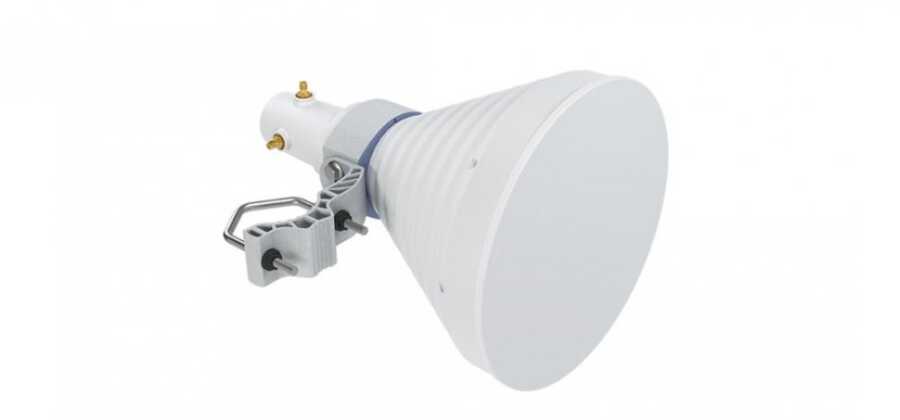

RF elements STH-30-USMAIt is a sector antenna operating in the 5 GHz band, featuring a symmetrical horn structure. This antenna is specifically designed for those who want high noise rejection and wide coverage area.
Frequency Range: 5150 – 5950 MHz
Kazanç: 18 dBi
Beamwidth (-3 dB):
Azimuth: 20° (Both horizontal and vertical)
Trend: 20° (Both horizontal and vertical)
Beamwidth (-6 dB):
Azimuth: 30° (Both horizontal and vertical)
Trend: 30° (Both horizontal and vertical)
Beam Efficiency: %92
Front-Back Ratio: 33 dB
Connection Type: 2 × RP-SMA female, 1 × waveguide port
Malzeme: UV resistant ABS plastic, polyethylene, aluminum, stainless steel
Protection ClassIP55
Flame Resistance: UL 94 HB
Operating Temperature: -30°C to +55°C
Wind Resistance: 160 km/h
Mounting Rod Diameter: 20–55 mm (55 mm recommended)
Ağırlık: 1.3 kg (alone)
Boyutlar: 300 × 262 × 214 mm
Symmetric Radiation Pattern: It provides high noise rejection and stable coverage area thanks to its zero side lobes.
Frequency Independent Performance: It provides consistent performance between the U-NII-1 and U-NII-3 bands.
High Beam Efficiency: With a 92% BE value, it has lower side lobes and higher efficiency compared to traditional patch array antennas.
Flexible Connection Options: Wide compatibility with RP-SMA interface and waveguide port.
Durable and Compact Design: It is manufactured with UV-resistant and weather-resistant materials.
Dense AP Clusters: It is ideal for stable connections in high-noise environments.
Tight Co-locations: It minimizes performance loss in areas where multiple antennas are closely positioned.
WISP Distributions: It is used in networks requiring constant performance over a wide frequency range.
