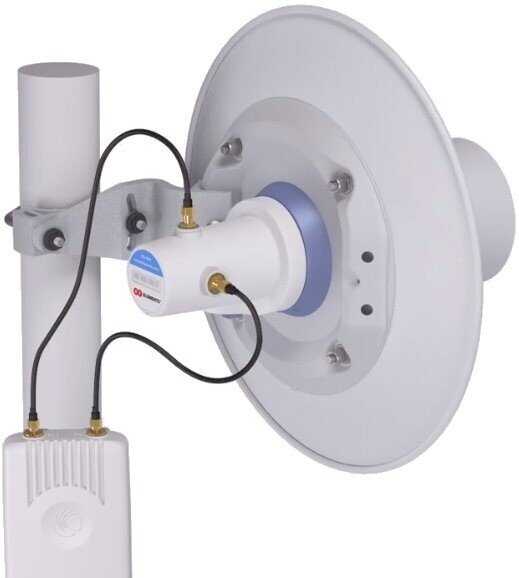

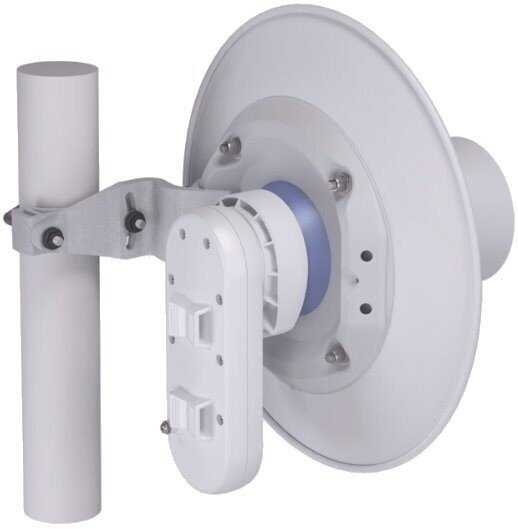

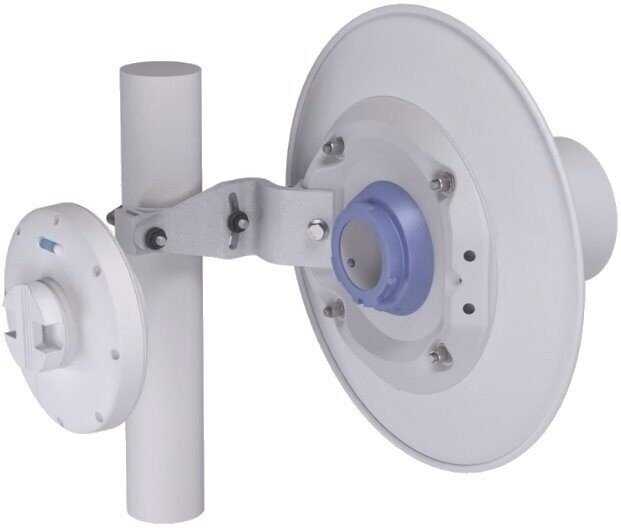

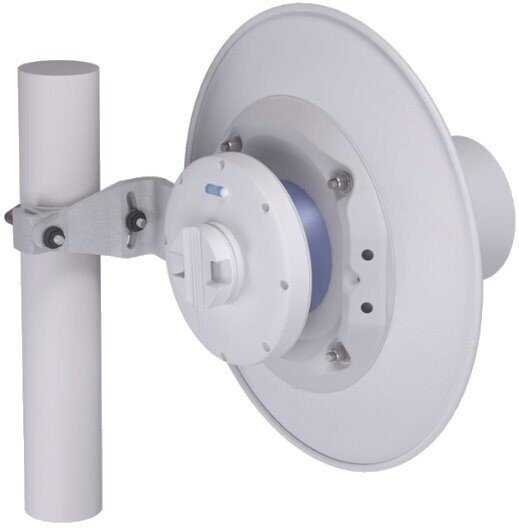

STD-24-UMa product manufactured by RF ElementsStarterDish™ 24 UMIt is a model and a high-gain directional parabolic antenna operating in the 5 GHz band. This antenna is specifically designed for client installations and offers easy assembly with its lightweight structure.
Frequency Range: 5150 – 6400 MHz
Kazanç: 24 dBi
Beam Width (-3 dB): Horizontal and Vertical 8°
Beam Width (-6 dB): Horizontal and Vertical 12°
Polarizasyon: Bilinear (Horizontal and Vertical)
Empedans: 50 Ohm
VSWR (Maximum)1.8
Front to Back Ratio: 27 dB
Antenna Connection: Waveguide Port
Malzeme: UV resistant ABS plastic and aluminum
Environmental Protection ClassIP65
Compatibility of Assembly Rod Diameter: 20–55 mm
Operating Temperature: Between –35°C and +55°C
Wind Resistance: 160 km/h
High Gain: 24 dBi gain provides strong signal transmission over long distances.
Narrow Beam Width: The 8° narrow beam width reduces interference and provides targeted communication.
Durable Design: It is resistant to harsh weather conditions thanks to its IP65 protection class and robust material structure.
Uyumluluk: It offers flexible usage through a waveguide connection compatible with various radio devices.
