STA-SMA

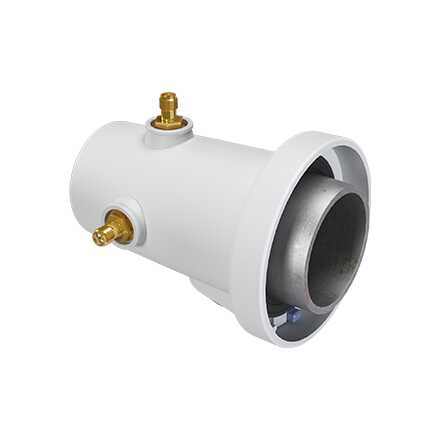

RF Elements TPA-SMAThe TwistPort™ Adapter is an adapter that enables radio devices operating in the 5 GHz band to be compatible with RF elements' TwistPort™ antennas. This adapter is specifically designed for devices with an RP-SMA connection interface and offers tool-free, quick installation.

📡 Technical Specifications

• Frequency Range: 5180 – 6400 MHz

• Polarizasyon: Bilinear (H + V)

• VSWR (Max.)1.8

• Empedans: 50 Ohm

• Antenna Connection: TwistPort™ – Quick-Locking Waveguide Port

• Radio Connection: 2 × RP-SMA female

• Malzeme:

  • Inner Part: Aluminum Alloy

  • Adapter: UV stabilized and weather-resistant ABS plastic

• Flame Resistance: UL 94 HB

• Operating Temperature: -40°C to +60°C

• Wind Resistance: 160 mph

• Ağırlık:

  • Single Unit: 0.21 kg

  • Packaged: 0.28 kg

  • 100-Piece Box: 29.0 kg

• Boyutlar:

  • Single Unit: 155 × 100 × 97 mm

  • 100-Piece Box: 990 × 480 × 320 mm

✅ Compatibility

• RF elements: Compatible with all TwistPort™ antennas.

• Ubiquiti Networks:

  • Rocket™ M5

  • Rocket™ AC

  • Rocket™ Prism 5AC

  • PrismStation™ 5AC

  • IsoStation™ 5AC

  • airFiber® 5X

  • LTU™ Rocket

⚙️ Featured Features

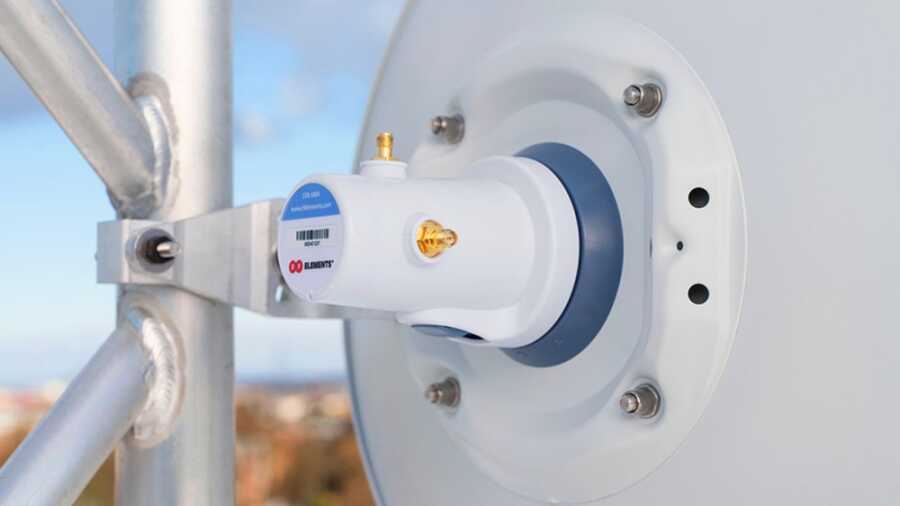

• Quick and Tool-Free Installation: Thanks to the TwistPort™ mechanism, the radio and antenna connection is fast and easy.

• High Compatibility: It is compatible with devices that have an RP-SMA connection interface.

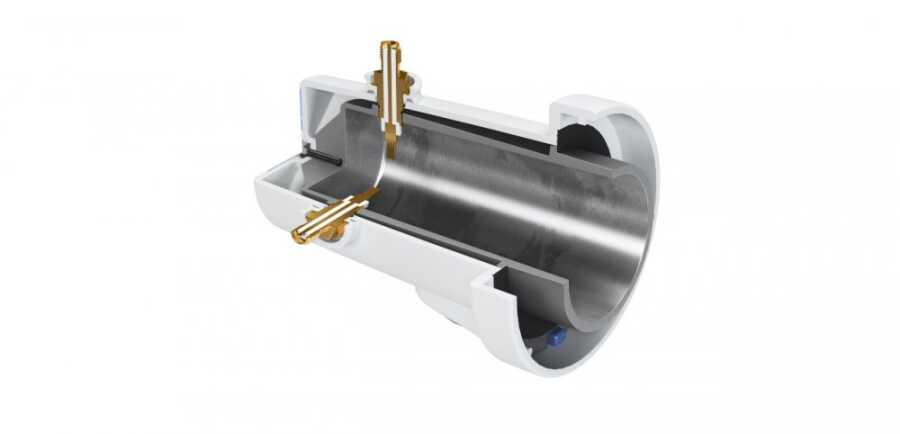

• Low Loss Design: RP-SMA connectors are directly inserted into the waveguide, minimizing the use of internal coaxial cables and reducing connection points.

• Durable and Weather-Resistant: UV-stabilized and weather-resistant ABS plastic material is used to ensure suitability for outdoor conditions.
