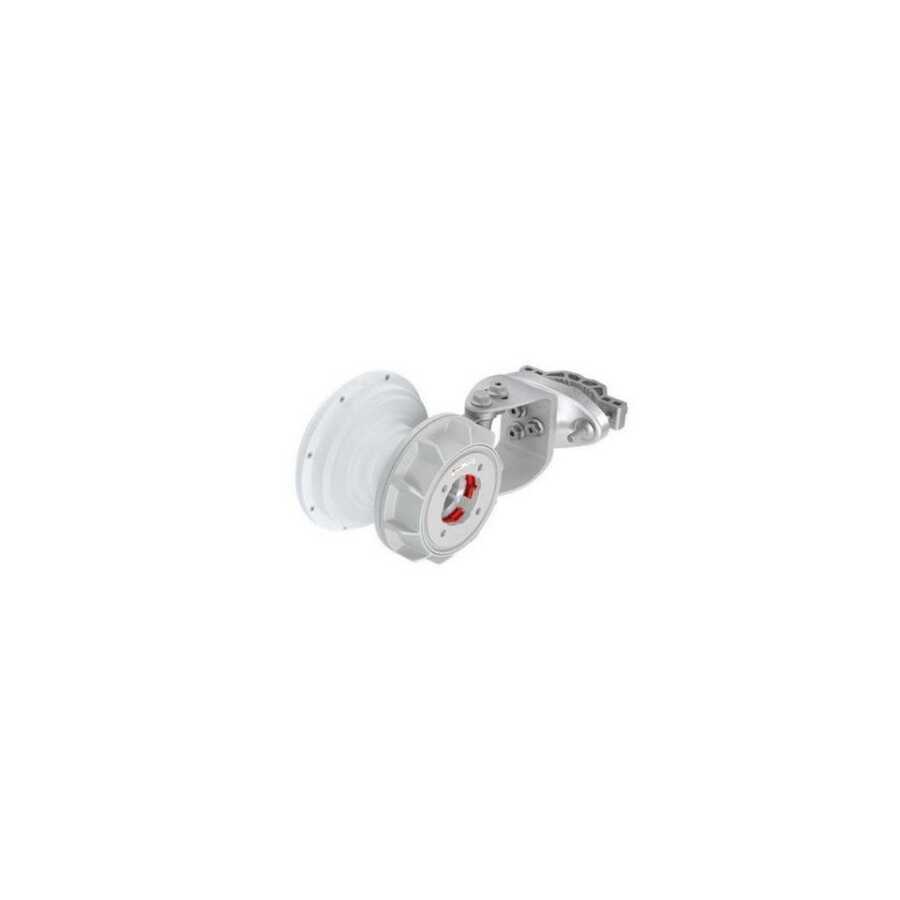

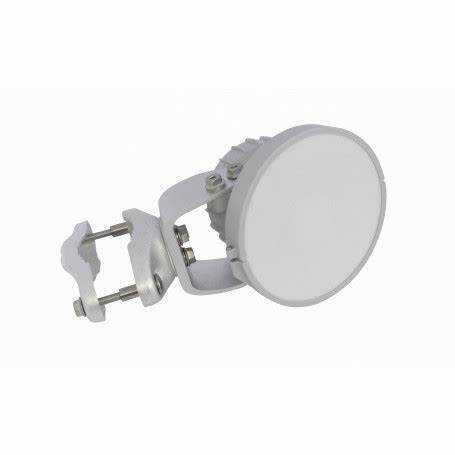

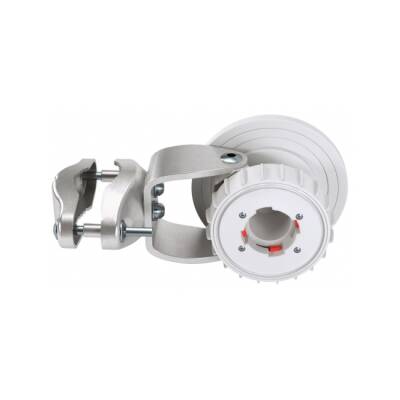

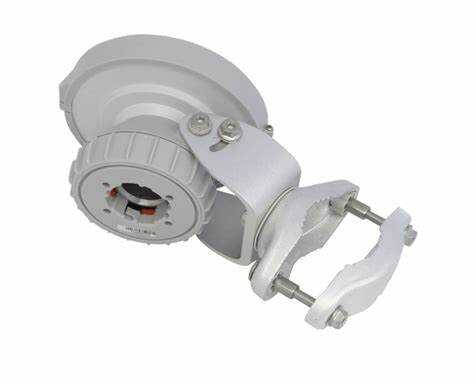

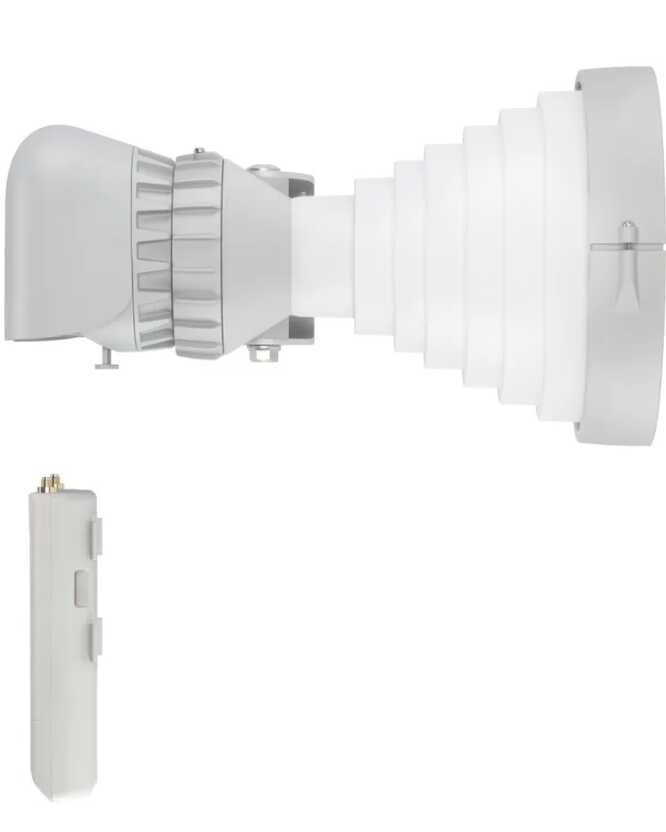

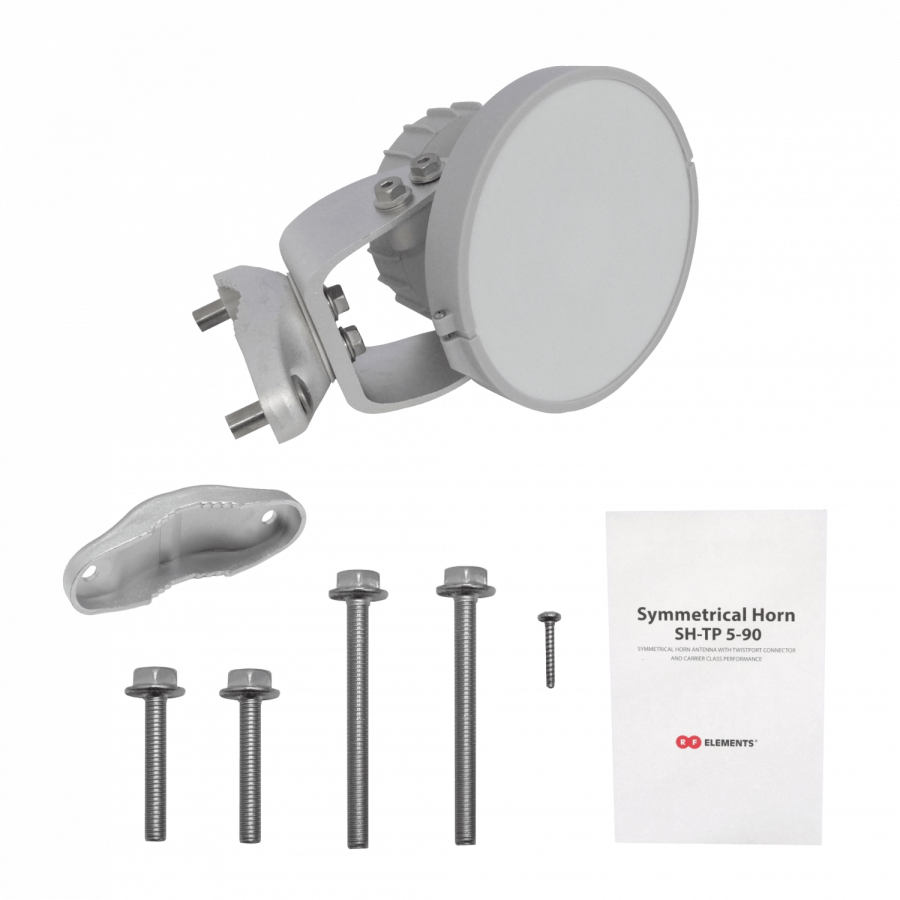

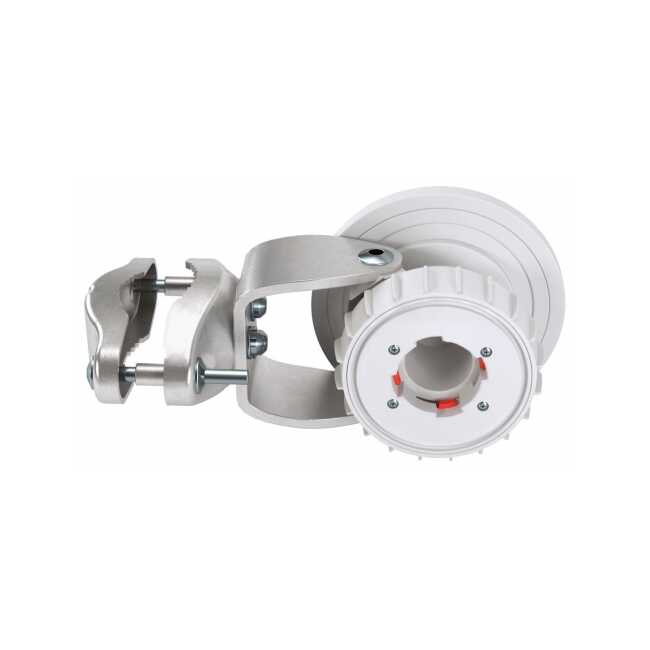

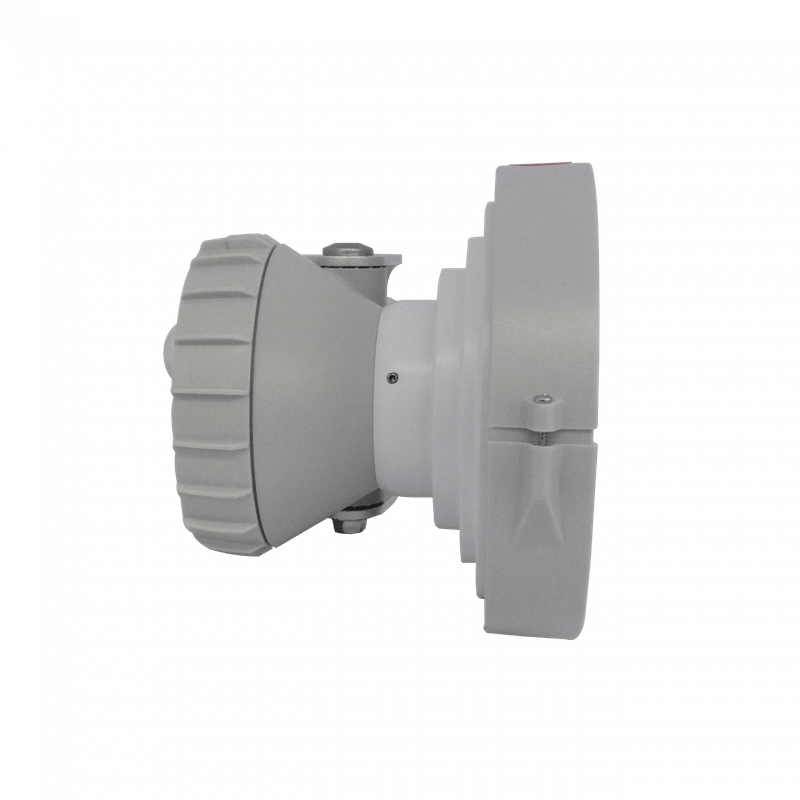

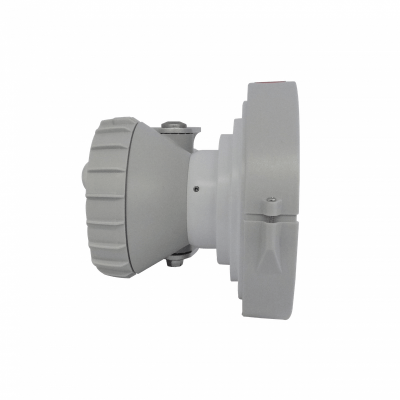

SH-TP-5-90a product manufactured by RF ElementsSymmetrical Horn AntennaIt is a model and offers superior performance particularly in environments where high-density access point clusters and radio devices are used together. This antenna operates in the 5 GHz band andTwistPort™It provides the opportunity for low-loss, fast, and easy connection thanks to its connector.
Frequency Range: 5180 – 6400 MHz
Kazanç: 10 dBi
Beam Width (-3 dB): Horizontal (H) 67°, Vertical (V) 67°
Beam Width (-6 dB): Horizontal (H) 90°, Vertical (V) 90°
Front to Back Ratio: 28 dB
Polarizasyon: Bilinear (Horizontal and Vertical)
Connection Type: TwistPort™ – Quick-Locking Waveguide Port
Malzeme: UV resistant ABS plastic, polycarbonate, polypropylene, aluminum, and stainless steel
Protection Class: IP55 (protected against dust and water splashes)
Mounting Pole Diameter Compatibility: 15–86 mm
Operating Temperature: Between –30°C and +55°C
Wind Resistance: 160 km/h
Mechanical Bending Angle: ±25°
Boyutlar: 260 x 159 x 127 mm
Ağırlık: 1.5 kg (packaged: 1.9 kg)
Symmetric Beam Structure: Having an equal beam pattern in horizontal and vertical planes minimizes the formation of blind spots in the coverage area.
Low Side Lobes: Minimal side lobes reduce interference, providing a cleaner signal.
Compact Design: Its small size reduces tower rental costs and offers easy installation in tight spaces.
High-Density Installations: It provides effective coverage in areas with short-range clients.
Wide Compatibility: Thanks to RF Elements' TwistPort™ adapters, it is compatible with various radio devices such as Ubiquiti, MikroTik, and Cambium Networks.
