SH-TP-5-50

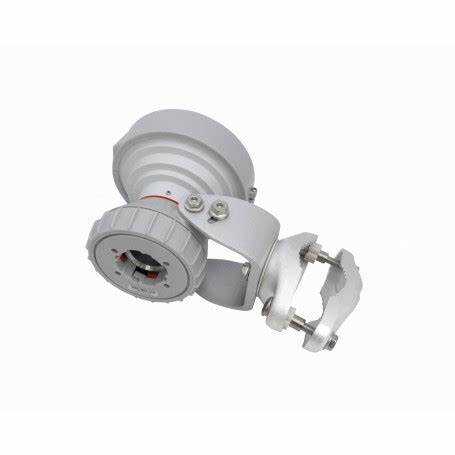

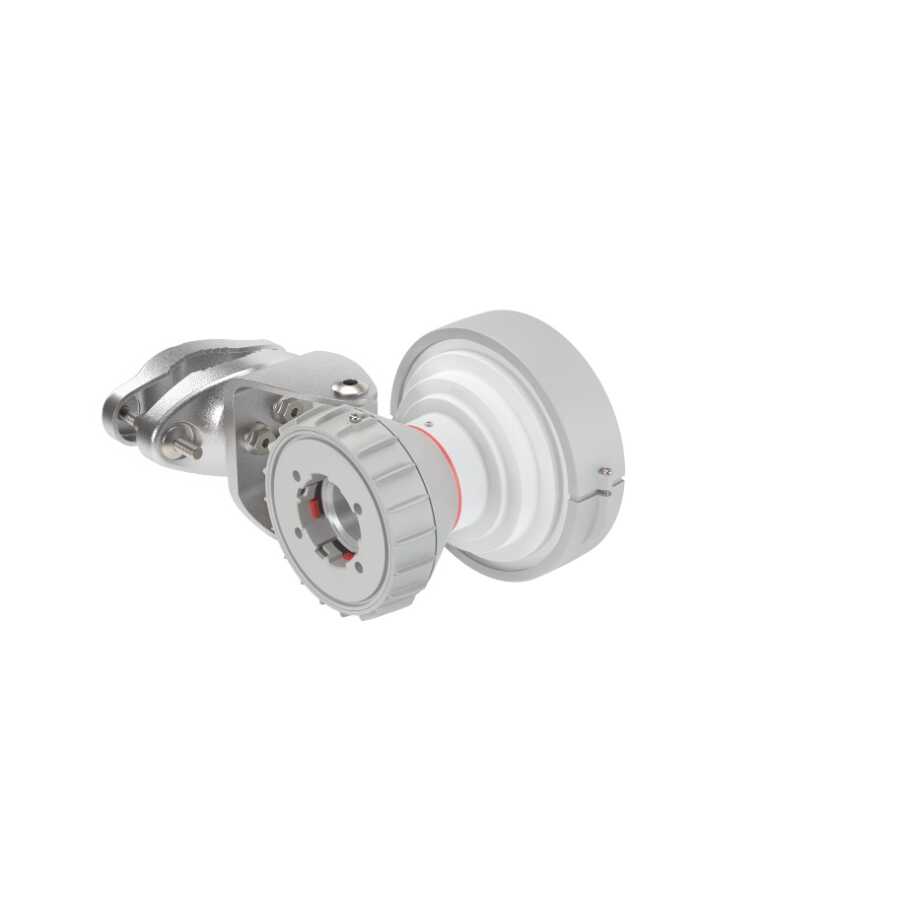

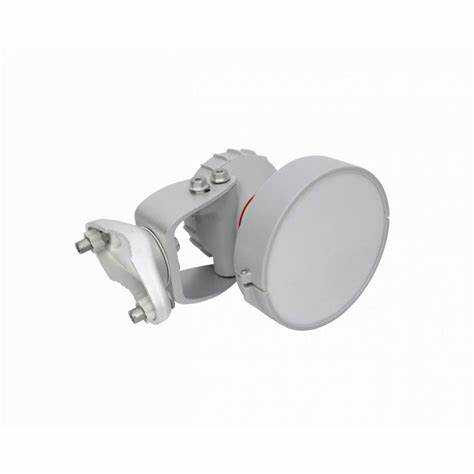

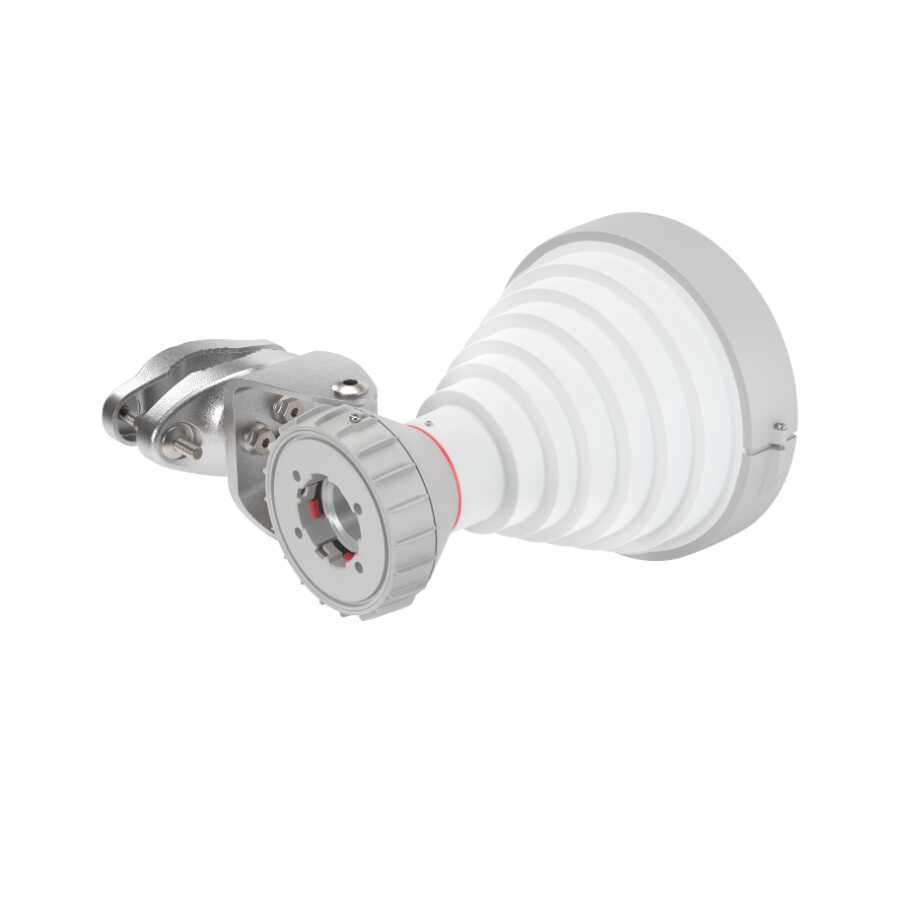

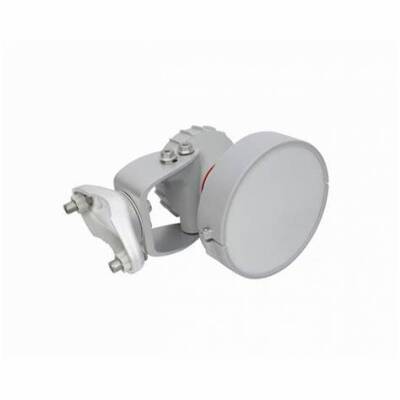

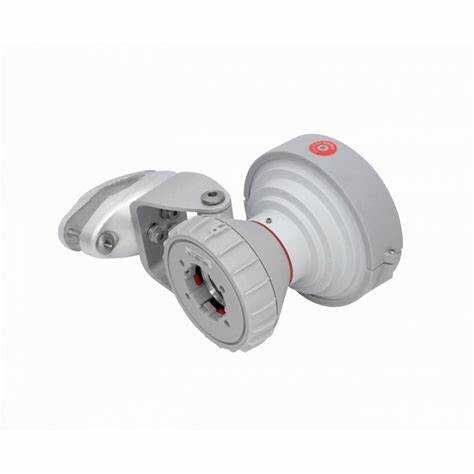

RF Elements SH-TP-5-50It is a horn antenna operating in the 5 GHz band, with a 50° symmetrical beam angle. This antenna is designed to provide superior performance in high-density access point clusters and noisy environments.

📡 Technical Specifications

• Frequency Range: 5180 – 6400 MHz

• Kazanç: 14.3 dBi (maximum), 14.1 dBi (typical)

• Beam Width (-3 dB): Horizontal: 33°, Vertical: 33°

• Beam Width (-6 dB): Horizontal: 50°, Vertical: 50°

• Front-Back Ratio: 53 dB

• Polarizasyon: Bilinear (H + V)

• Empedans: 50 Ohm

• VSWR (Max.)1.8

• Connection Type: TwistPort™ - Quick Lock Waveguide Port

• Antenna TypeHorn

• Malzeme: UV-resistant ABS plastic, polycarbonate, polypropylene, aluminum, stainless steel

• Protection ClassIP55

• Operating Temperature: -30°C to +55°C

• Wind Resistance: 160 km/h

• Mechanical Incline: ±25°

• Ağırlık: 1.7 kg (single unit), 1.9 kg (packaged)

• Dimensions (Packaged): 30 × 19 × 17 cm

• Mounting Pole Diameter: 15 – 86 mm

✅ Featured Features

• Symmetric Beam Structure: It provides homogeneous coverage by ensuring equal beam width in horizontal and vertical planes.

• Absence of Side Lobes: It provides lower levels of interference and noise compared to traditional sector antennas.

• Broadband Performance: It provides constant gain and beam structure across the frequency range.

• Durable Design: It is manufactured with materials resistant to harsh outdoor conditions.

• Easy Installation: It comes pre-assembled and can be set up with a single tool.

🔧 Application Areas

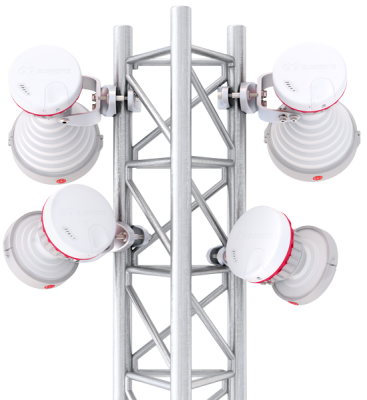

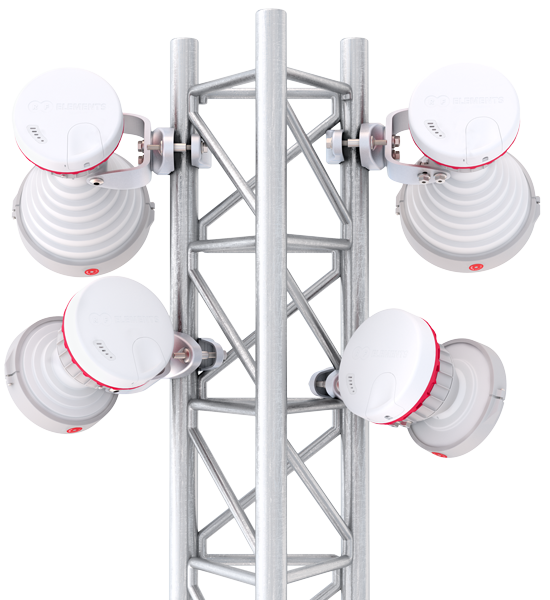

• High-Density Access Points: It provides ideal performance in areas where multiple access points are closely positioned.

• Noisy Environments: It minimizes interference levels due to the absence of side lobes.

• WISP Distributions: It is suitable for wireless internet service providers that require consistent performance across a wide frequency range.
