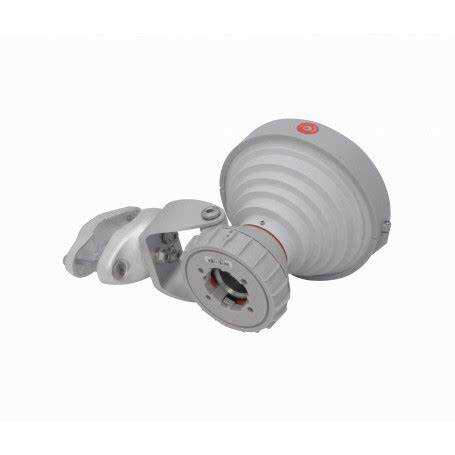

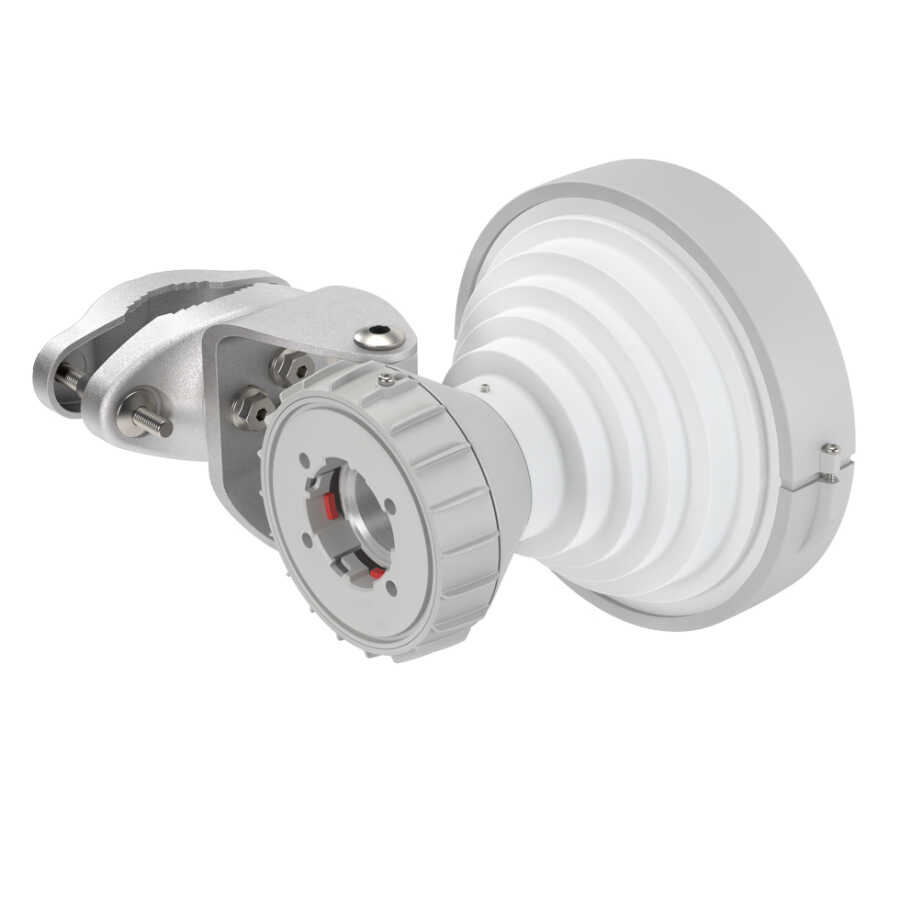

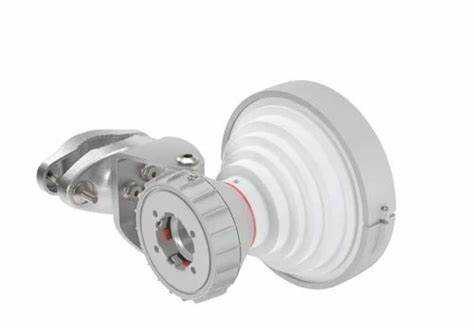

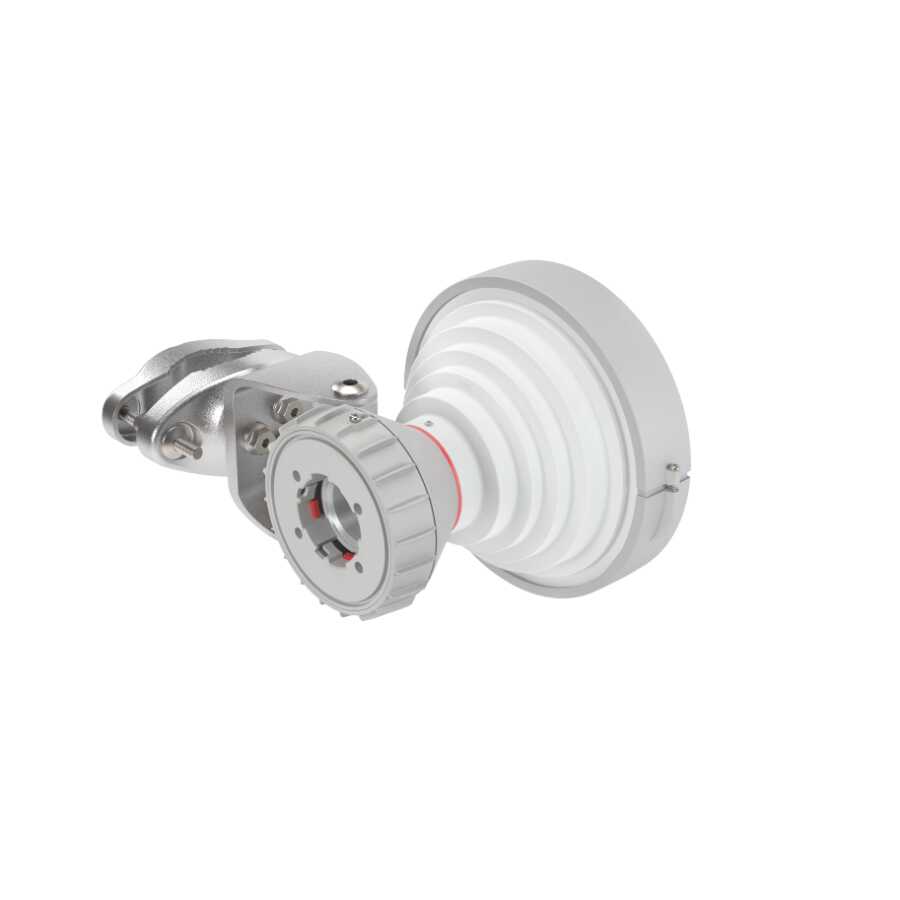

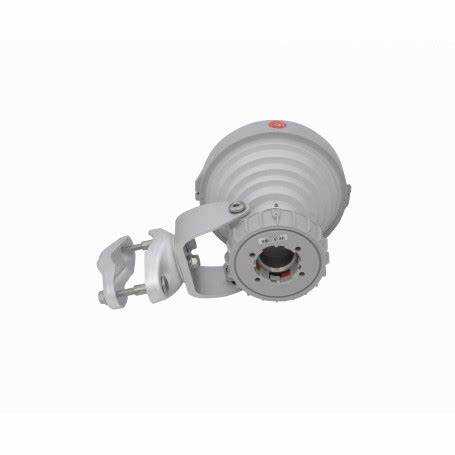

RF Elements SH-TP-5-40It is a horn antenna operating in the 5 GHz band with a symmetrical beam structure. This antenna is designed to provide superior performance in high-density access point clusters and noisy environments.
Frequency Range: 5180 – 6400 MHz
Kazanç: 16.2 dBi
Beam Width (-3 dB): Horizontal: 27°, Vertical: 27°
Beam Width (-6 dB): Horizontal: 40°, Vertical: 40°
Front-Back Ratio: 40 dB
Polarizasyon: Bilinear (H + V)
Connection Type: TwistPort™ – Quick-Locking Waveguide Port
Antenna TypeHorn
Malzeme: UV-resistant ABS plastic, polycarbonate, polypropylene, aluminum, stainless steel
Protection ClassIP55
Operating Temperature: -30°C to +55°C
Wind Resistance: 160 km/h
Mechanical Bending Angle: ±25°
Ağırlık: 2 kg (single unit)
Boyutlar: 31.5 × 20 × 21.5 cm (single unit boxed)
Mounting Pole Diameter: 15 – 86 mm
Symmetric Beam Structure: It provides homogeneous coverage by ensuring equal beam width in horizontal and vertical planes.
Absence of Side Lobes: It provides lower levels of interference and noise compared to traditional sector antennas.
Broadband Performance: It provides constant gain and beam structure across the frequency range.
Durable Design: It is manufactured with materials resistant to harsh outdoor conditions.

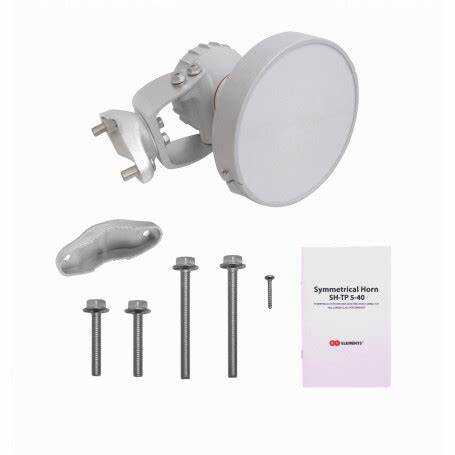

Easy Installation: It comes pre-assembled and can be set up with a single tool.

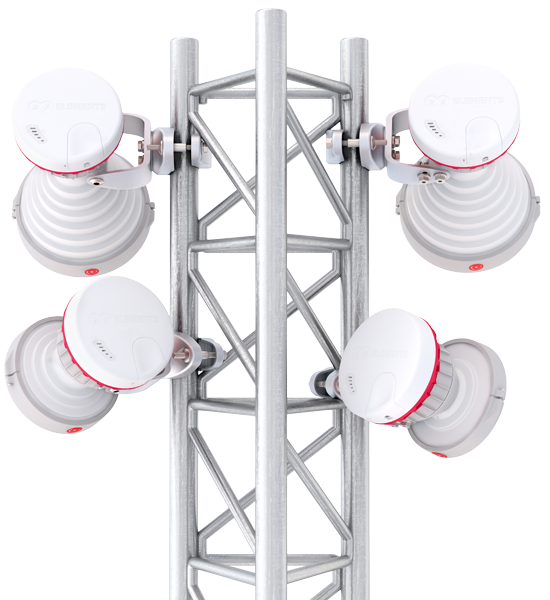

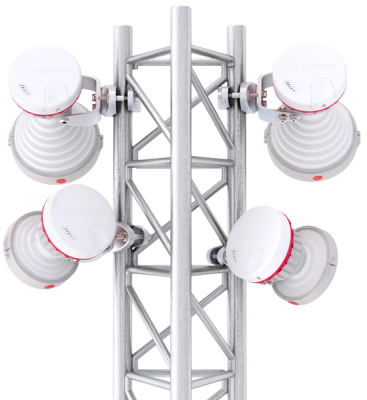

High-Density Access Points: It provides ideal performance in areas where multiple access points are closely positioned.
Noisy Environments: It minimizes interference levels due to the absence of side lobes.
WISP Distributions: It is suitable for wireless internet service providers that require consistent performance across a wide frequency range.
