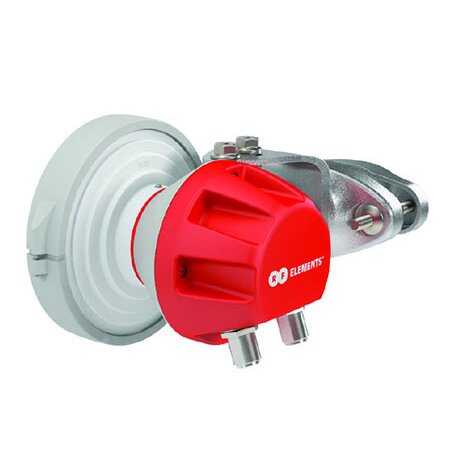

RF Elements SH-CC-5-70It is a horn antenna operating in the 5 GHz band, with 11.5 dBi gain and a 70° symmetric beamwidth. This antenna is specifically designed to deliver superior performance in high-density access point clusters and noisy environments. Thanks to the TwistPort™ connector, it provides nearly lossless connectivity, enabling easy integration and maintenance of radio devices.
Frequency Range: 5180 – 6100 MHz
Kazanç: 11.5 dBi
Beam Width (-3 dB):
Horizontal (Azimuth): 50°
Vertical (Slope): 50°
Beam Width (-6 dB):
Horizontal (Azimuth): 70°
Vertical (Slope): 70°
Front-Back Ratio: 30 dB
Polarizasyon: Bilinear (H + V)
Empedans: 50 Ohm
VSWR (Max.)1.8
Connection Type: 2x N-female connector
Antenna TypeHorn
Malzeme: UV-resistant ABS plastic, polycarbonate, polypropylene, aluminum, stainless steel
Protection ClassIP55
Operating Temperature: -30°C to +55°C
Wind Resistance: 160 km/h
Wind Load: 21 N @ 160 km/h
Mechanical Incline: ±25°
Mounting Pole Diameter: 15 – 86 mm
Ağırlık: 1.7 kg (single unit), 2.4 kg (packaged)
Dimensions (Packaged): 32 × 20 × 22 cm
Symmetric Beam Structure: It provides homogeneous coverage by ensuring equal beam width in horizontal and vertical planes.
Absence of Side Lobes: It provides lower levels of interference and noise compared to traditional sector antennas.

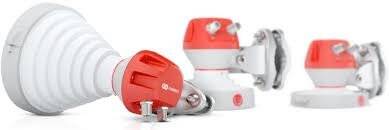

BeamSwitch™ Feature: By rotating the antenna mount 90°, it offers the possibility to achieve different beam angles.
Durable Design: It is manufactured with materials resistant to harsh outdoor conditions.
High-Density Access Points: It provides ideal performance in areas where multiple access points are closely positioned.
Noisy Environments: It minimizes interference levels due to the absence of side lobes.
WISP Distributions: It is suitable for wireless internet service providers that require consistent performance across a wide frequency range.
