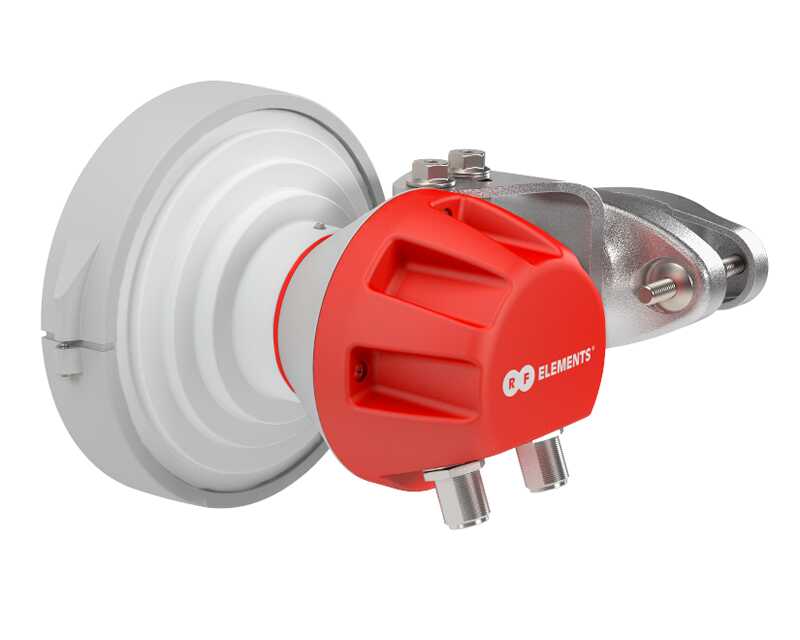

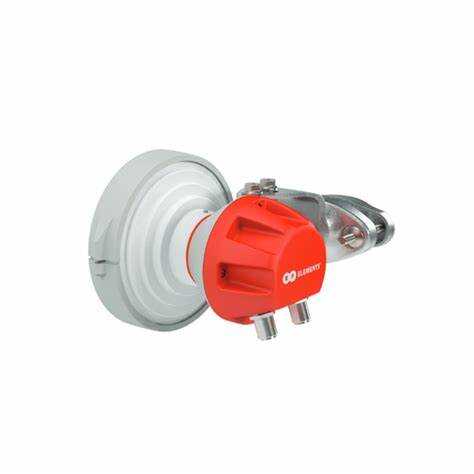

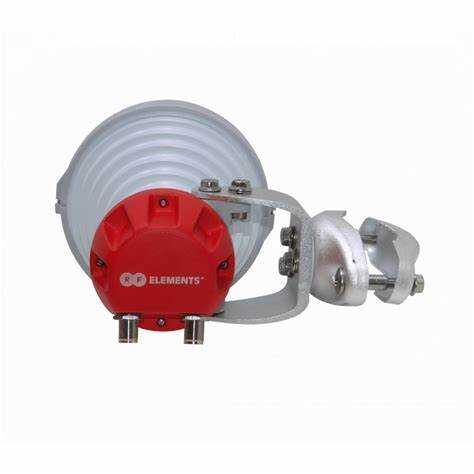

RF Elements SH-CC-5-60It is a Carrier Class horn antenna operating in the 5 GHz band with a symmetrical beam structure. This antenna is designed to provide superior performance in high-density access point clusters and noisy environments.
Frequency Range: 5180 – 6100 MHz
Kazanç: 13.2 dBi
Beam Width (-3 dB): Horizontal: 41°, Vertical: 41°
Beam Width (-6 dB): Horizontal: 60°, Vertical: 60°
Front-Back Ratio: 36 dB
Polarizasyon: Bilinear (H + V)
Empedans: 50 Ohm
VSWR (Max.)1.8
Connection Type: 2 × N Female Bulkhead Connector
Antenna TypeHorn
Malzeme: UV resistant polycarbonate, polypropylene, aluminum, zinc, stainless steel
Protection ClassIP55
Operating Temperature: -30°C to +55°C
Wind Resistance: 160 km/h
Ağırlık: 1.8 kg
Boyutlar: 260 × 161 × 162.5 mm
Mounting Pole Diameter: 15 – 86 mm
Symmetric Beam Structure: It provides homogeneous coverage by ensuring equal beam width in horizontal and vertical planes.
Absence of Side Lobes: It provides lower levels of interference and noise compared to traditional sector antennas.
Broadband Performance: It provides constant gain and beam structure across the frequency range.
Durable Design: It is manufactured with materials resistant to harsh outdoor conditions.

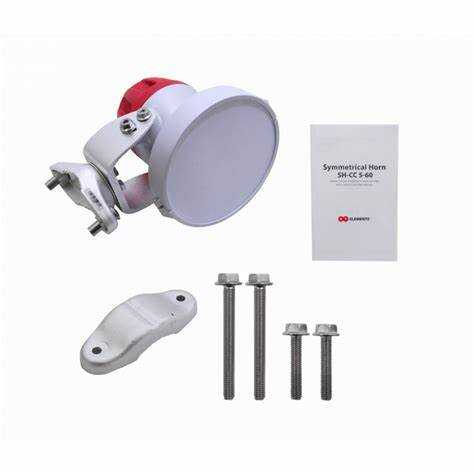

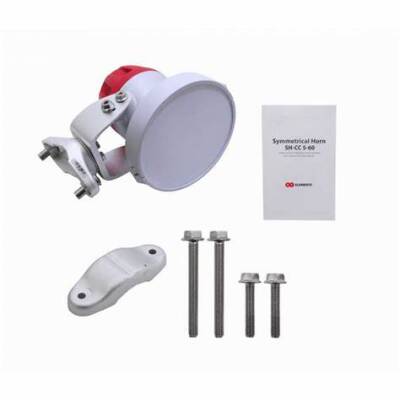

Easy Installation: It comes pre-assembled and can be set up with a single tool.
High-Density Access Points: It provides ideal performance in areas where multiple access points are closely positioned.
Noisy Environments: It minimizes interference levels due to the absence of side lobes.
WISP Distributions: It is suitable for wireless internet service providers that require consistent performance across a wide frequency range.
