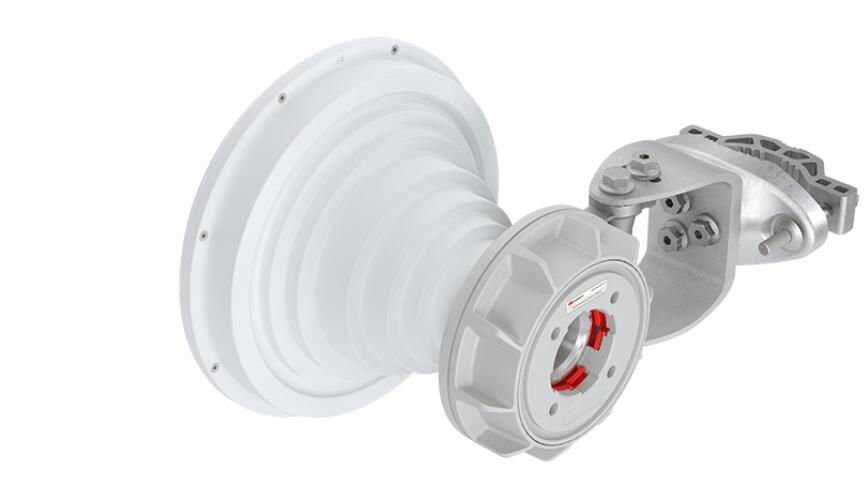

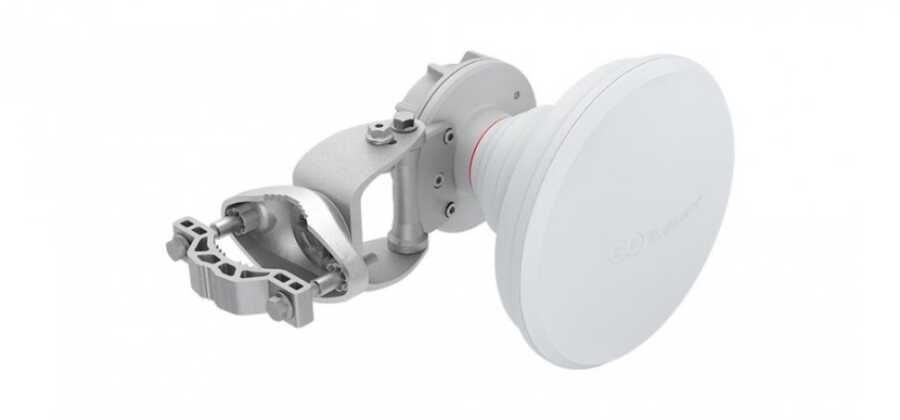

RF Elements HG3-TP-S40It is a horn antenna operating in the 5 GHz band, with a gain of 16.2 dBi and a 40° symmetrical beam width. This antenna is specifically designed to deliver superior performance in high-density access point clusters and noisy environments. Thanks to the TwistPort™ connector, it provides nearly lossless connectivity, enabling easy integration and maintenance of radio devices.
Frequency Range: 5180 – 6400 MHz
Kazanç: 16.2 dBi
Beam Width (-3 dB):
Horizontal: 27°
Vertical: 27°
Beam Width (-6 dB):
Horizontal: 40°
Vertical: 40°
Front-Back Ratio: 35 dB
Polarizasyon: Bilinear (H + V)
Empedans: 50 Ohm
VSWR (Max.)1.8
Connection Type: TwistPort™ - Quick Lock Waveguide Port
Antenna TypeHorn
Malzeme: UV resistant ABS plastic, polycarbonate, polyethylene, aluminum, stainless steel
Protection ClassIP55
Operating Temperature: -30°C to +55°C
Wind Resistance: 160 km/h
Wind Load: 44 N @ 160 km/h
Mechanical Incline: ±25°
Mounting Pole Diameter: 30 – 90 mm
Ağırlık: 1.8 kg (single unit), 3.2 kg (packaged)
Dimensions (Packaged): 41.2 × 27.7 × 23.4 cm
Symmetric Beam Structure: It provides homogeneous coverage by ensuring equal beam width in horizontal and vertical planes.
Absence of Side Lobes: It provides lower levels of interference and noise compared to traditional sector antennas.
BeamSwitch™ Feature: By rotating the antenna mount 90°, it offers the possibility to achieve different beam angles.
TwistPort™ Connector: It offers almost lossless connection and easy setup.
Durable Design: It is manufactured with materials resistant to harsh outdoor conditions.
High-Density Access Points: It provides ideal performance in areas where multiple access points are closely positioned.
Noisy Environments: It minimizes interference levels due to the absence of side lobes.
WISP Distributions: It is suitable for wireless internet service providers that require consistent performance across a wide frequency range.
