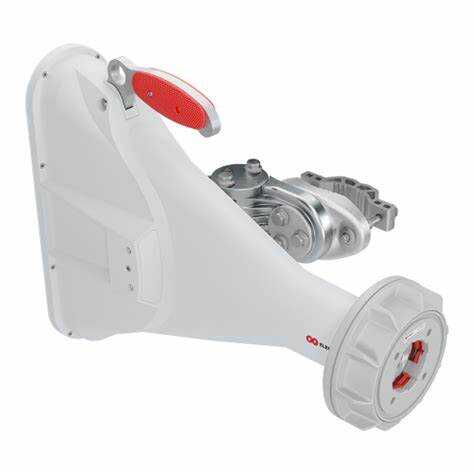

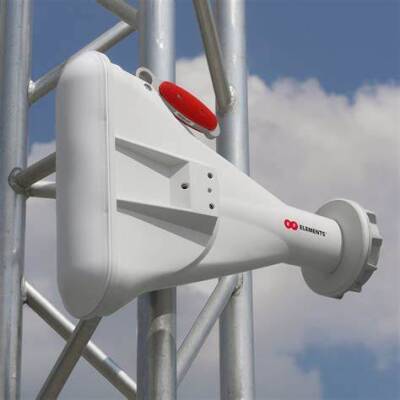

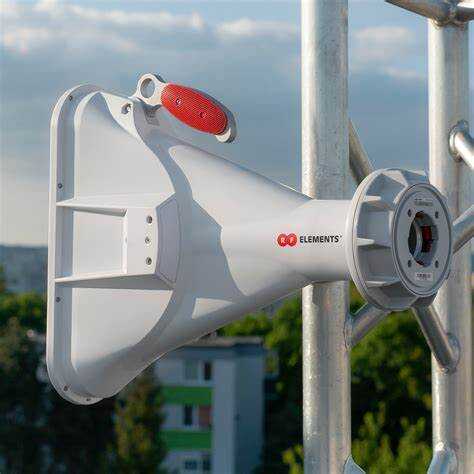

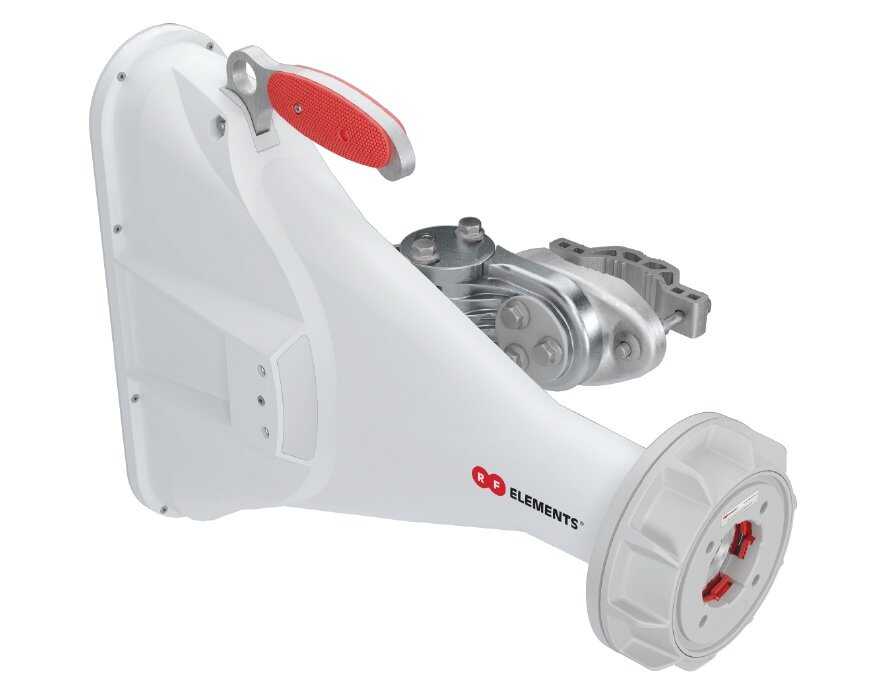

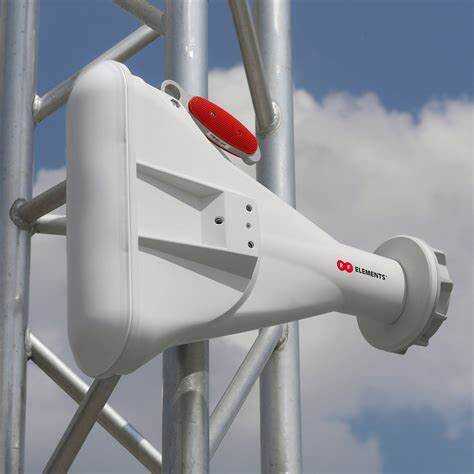

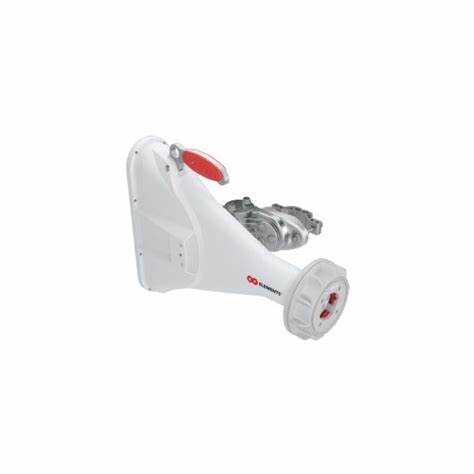

HG3-TP-A60, a developed by RF Elements60° Asymmetric Horn AntennaIt is a model and offers superior performance particularly in environments where high-density access point clusters and radio devices are used together. This antenna operates in the 5 GHz band andTwistPort™It provides the opportunity for low-loss, fast, and easy connection thanks to its connector.
Frequency Range: 5180 – 6000 MHz
Kazanç: 17 dBi
Beam Width (-3 dB):
Azimuth (Horizontal): 45°
Elevation (Vertical): 17°
Beam Width (-6 dB):
Azimuth (Horizontal): 60°
Elevation (Vertical)25°
Front to Back Ratio: 27 dB
Ray Efficiency95%
Polarizasyon: Bilinear (Horizontal and Vertical)
Connection Type: TwistPort™ – Quick-Locking Waveguide Port
Malzeme: UV resistant ABS plastic, polycarbonate, HDPE, aluminum, and stainless steel
Protection Class: IP55 (protected against dust and water splashes)
Mounting Pole Diameter Compatibility: 40–80 mm (80 mm recommended)
Operating Temperature: Between –35°C and +60°C
Wind Resistance: 160 km/h
Wind Load: 43 N @ 160 km/h
Mechanical Adjustment: ±20° Elevation, ±20° Azimuth
Ağırlık: 4.8 kg (packaged: 6.5 kg)
Package Dimensions: 515 × 370 × 140 mm
High Gain and Narrow Beam Width: It provides strong signal transmission over long distances with 17 dBi gain and 60° azimuth beamwidth.
Low Side Lobes: Minimal side lobes reduce interference, providing a cleaner signal.
Compact and Durable Design: Its small size and robust material structure make it resistant to harsh weather conditions.
Wide Compatibility: Thanks to RF Elements' TwistPort™ adapters, it is compatible with various radio devices such as Ubiquiti, MikroTik, and Cambium Networks.
