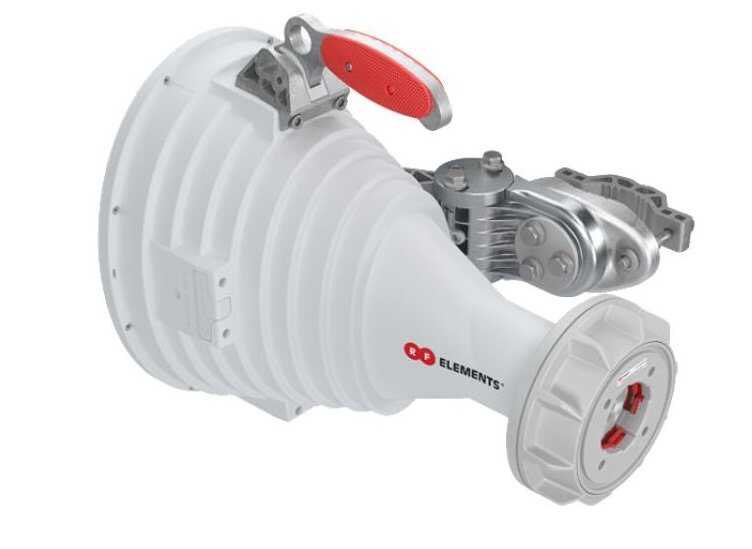

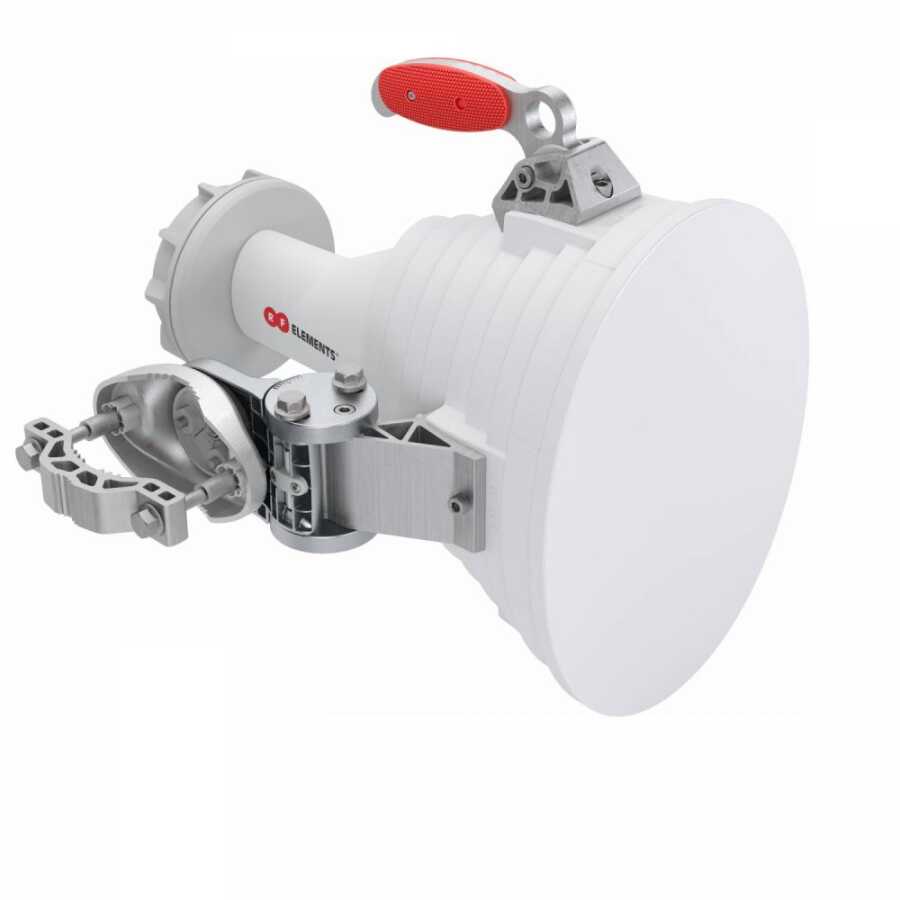

RF Elements HG3-TP-A20-30It is an asymmetric horn antenna operating in the 5 GHz band with a gain of 20.5 dBi. This antenna is specifically designed to deliver superior performance in high-density access point clusters and noisy environments. Thanks to the TwistPort™ connector, it provides nearly lossless connectivity, enabling easy integration and maintenance of radio devices.
Frequency Range: 5180 – 6000 MHz
Kazanç: 20.5 dBi
Beam Width (-6 dB):
Horizontal (Azimuth): 30°
Vertical (Slope): 20°
Front-Back Ratio: 35 dB
Polarizasyon: Bilinear (H + V)
Empedans: 50 Ohm
VSWR (Max.)1.8
Connection Type: TwistPort™ - Quick Lock Waveguide Port
Antenna TypeHorn
Malzeme: UV resistant ABS plastic, polycarbonate, polyethylene, aluminum, stainless steel
Protection ClassIP55
Operating Temperature: -35°C to +55°C
Wind Resistance: 160 km/h
Wind Load: 67 N @ 160 km/h
Mechanical Incline:
Vertical (Slope): ±25°
Horizontal (Azimuth)±20°
Mounting Pole Diameter: 22 – 80 mm (80 mm is recommended)
Ağırlık: 4.2 kg (single unit), 6.3 kg (packaged)
Dimensions (Packaged): 393 × 347 × 318 mm
Asymmetric Beam Structure: It offers a wide beam width in the horizontal plane and a narrow beam width in the vertical plane, providing more efficient coverage around tall buildings.
Absence of Side Lobes: It provides lower levels of interference and noise compared to traditional sector antennas.
BeamSwitch™ Feature: By rotating the antenna mount 90°, it offers the possibility to achieve different beam angles.
TwistPort™ Connector: It offers almost lossless connection and easy setup.
Durable Design: It is manufactured with materials resistant to harsh outdoor conditions.
High-Density Access Points: It provides ideal performance in areas where multiple access points are closely positioned.
Noisy Environments: It minimizes interference levels due to the absence of side lobes.
WISP Distributions: It is suitable for wireless internet service providers that require consistent performance across a wide frequency range.
