AS-5-20

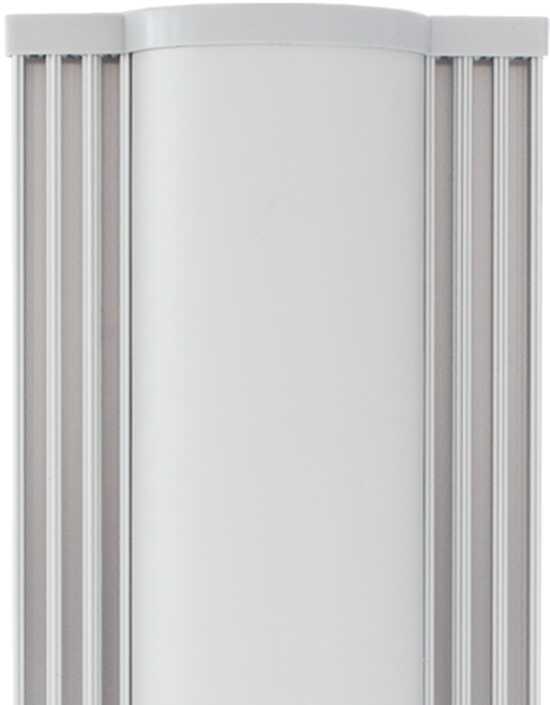

AS-5-20a product manufactured by RF Elements5 GHz 20 dBi Array Sector Antenna modelidir. This antenna is designed to deliver superior performance in high-density installations and interference-prone environments.

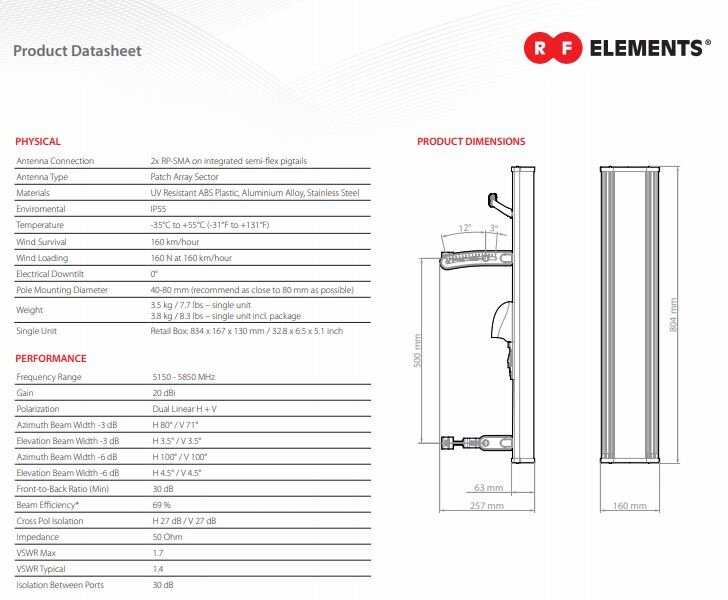

📡 Technical Specifications

• Frequency Range: 5150 – 5850 MHz

• Kazanç: 20 dBi

• Polarizasyon: Bilinear (Horizontal and Vertical)

• Beam Width (-3 dB):

  • Azimuth (Horizontal)80°

  • Elevation (Vertical)3.5°

• Beam Width (-6 dB):

  • Azimuth (Horizontal)100°

  • Elevation (Vertical)4.5°

• Front to Back Ratio: ≥ 30 dB

• Ray Efficiency: 69%

• Cross Polarization Isolation: 27 dB

• Empedans: 50 Ohm

• VSWR:

  • Maksimum1.7

  • Tipik1.4

• Inter-Port Isolation: 30 dB

• Antenna Connection: 2x RP-SMA (integrated semi-flexible pigtail cables)

• Antenna Type: Patch Array Sector

🛠️ Physical Properties

• Malzeme: UV resistant ABS plastic, aluminum alloy, stainless steel

• Protection ClassIP55

• Operating Temperature: Between –35°C and +55°C

• Wind Resistance: 160 km/h

• Wind Load: 160 N @ 160 km/h

• Mounting Pole Diameter Compatibility: 40–80 mm (80 mm recommended)

• Electrical Deflection Angle0°

• Ağırlık:

  • Anten: 3.5 kg

  • Paketli: 3.8 kg

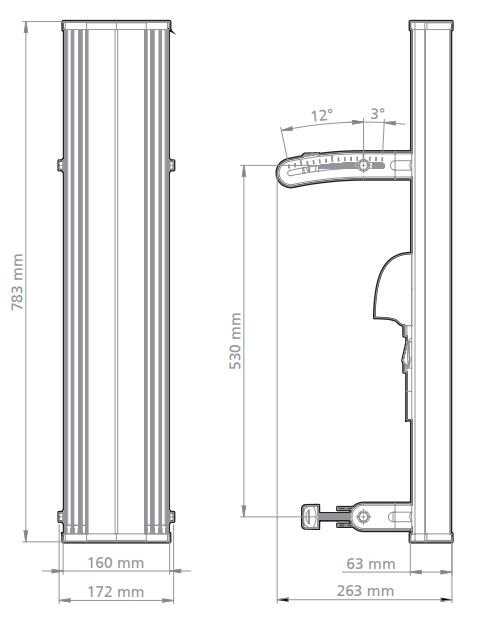

• Package Dimensions: 834 x 167 x 130 mm

🔧 Application Areas and Advantages

• Wide Frequency Support: It operates in the 5150 – 5850 MHz range, covering the U-NII-1 to U-NII-3 bands.

• BackShield™ Technology: The patented BackShield™ structure minimizes interference and enhances co-location capability by reducing side lobes and back radiation.

• High Compatibility: It is compatible with various radio devices such as Ubiquiti Rocket M5, Rocket 5ac, airFiber 5X, MikroTik BaseBox, NetBox, NetMetal, Cambium ePMP 1000/2000/3000L, Mimosa A5x, and TP-Link WBS510.

• Easy Installation: It offers quick and easy installation thanks to integrated semi-flexible pigtail cables and an innovative mounting system.
