Reyee RG-ES228GS-P Switch, is a high-capacity and manageable network solution.28-port gigabit structureIt offers professional use for large-scale enterprises, campuses, and security systems.

Featured Features:

• Toplam 28 Gigabit port24 PoE+ supported ports, 2 SFP uplinks, 2 Gigabit RJ45 uplinks

• 370W PoE power budgetIdeal for IP cameras, access points, and VoIP phones.

• Manageable switchVLAN, QoS, security, and loop prevention features

• Ruijie Cloud integrationwith easy remote management

• Suitable for high-performance network backbones, enterprise-level solution

Reyee RG-ES228GS-P Switch, with strong PoE support and flexible management featuresReliability and high performance in corporate network projects sunar.

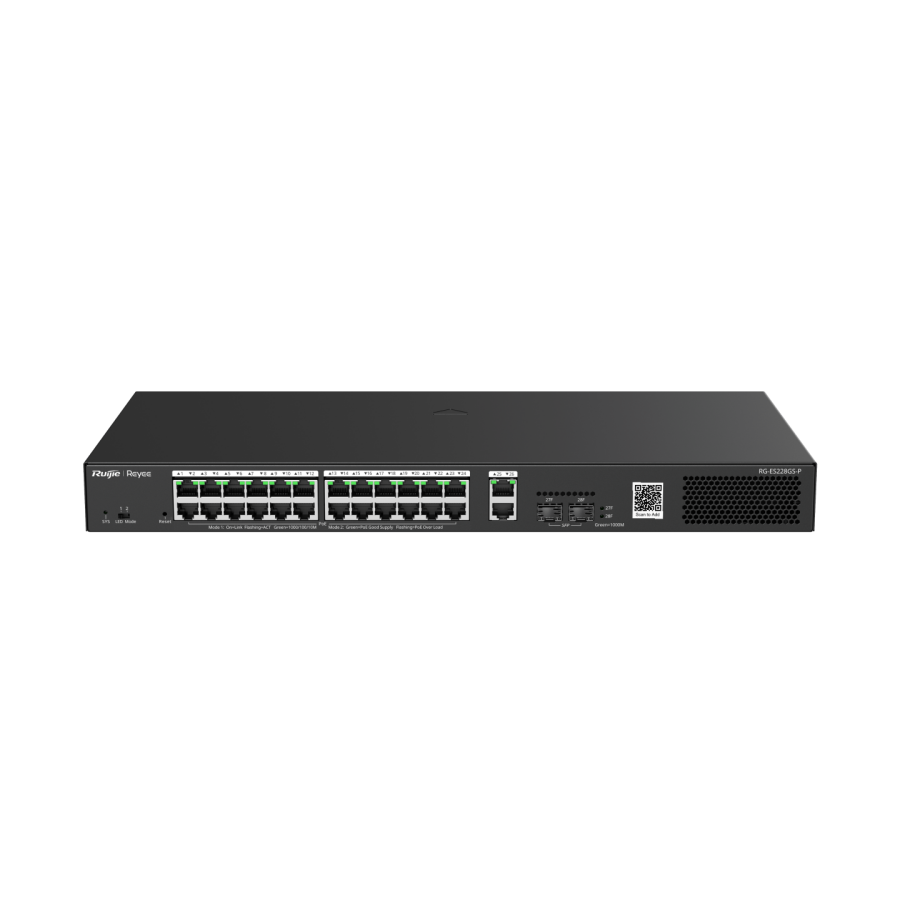

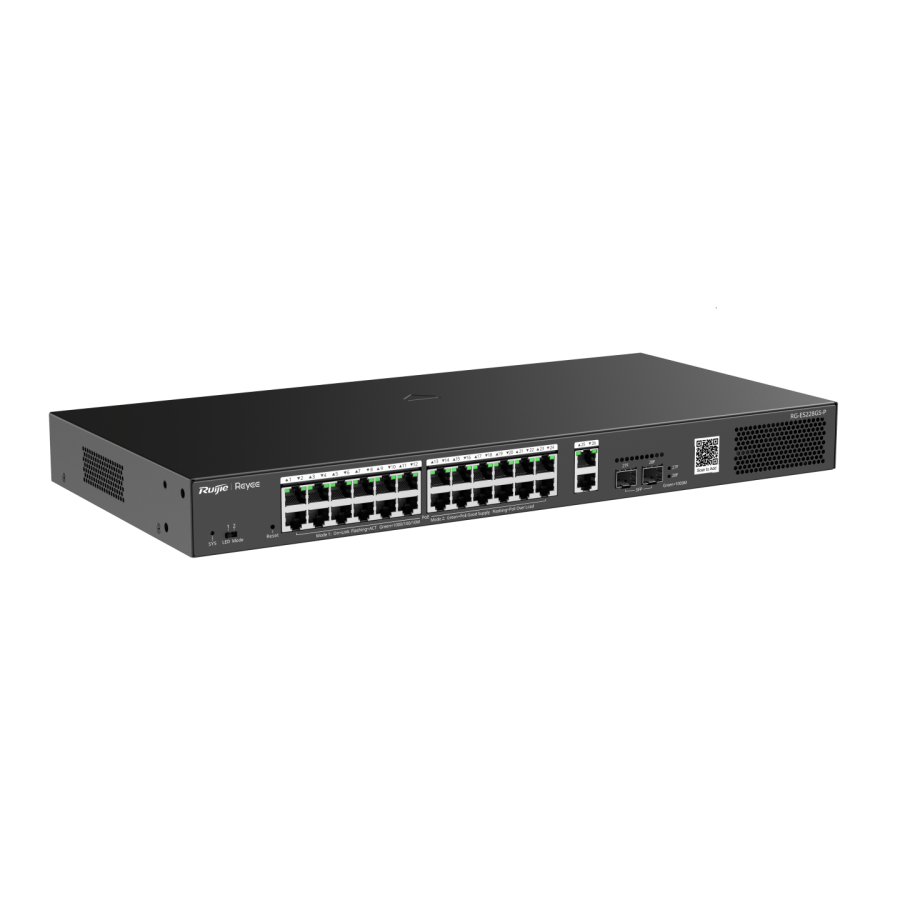

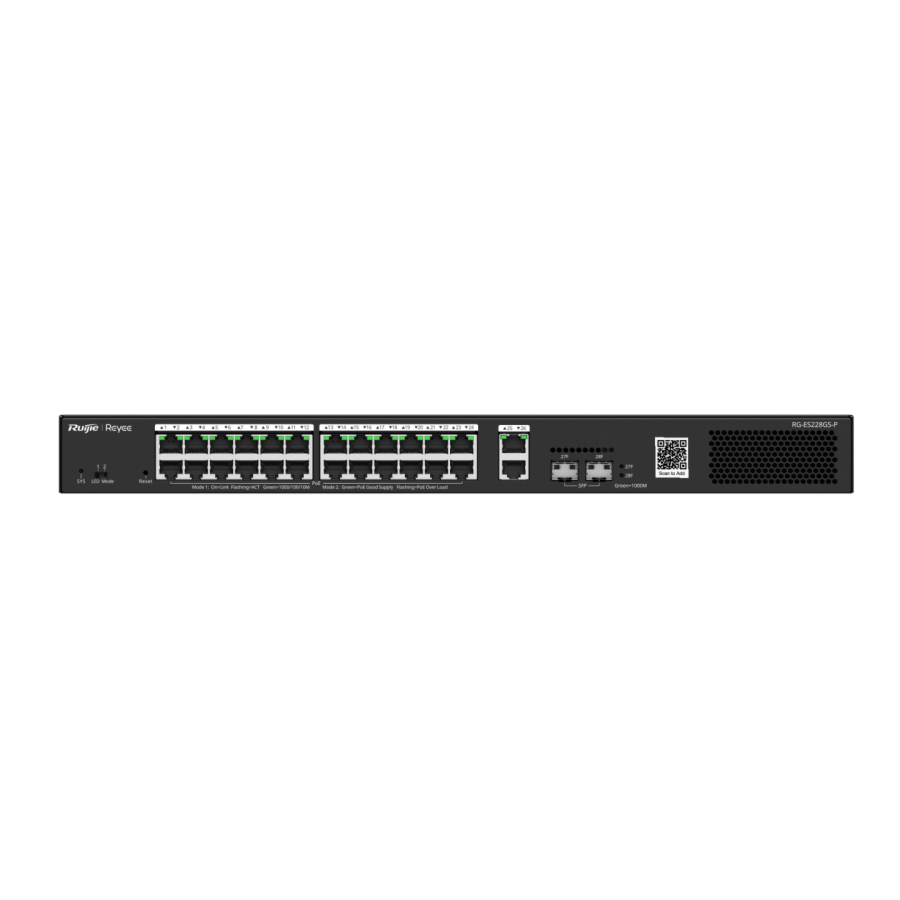

🔌 Reyee RG-ES228GS-P – 28 Port Gigabit Smart Cloud Manageable PoE Switch

🔧 Hardware Specifications

• ModelRG-ES228GS-P

• Switch Type: Smart Cloud Manageable

• Total Port: 28

  • 24 × Gigabit PoE/PoE+ (10/100/1000 Mbps)

  • 4 × Gigabit SFP uplink port

• Max. Switching Capacity56 Gbps

• Transmission Capacity41.66 Mpps

⚡ PoE Features

• PoE StandardIEEE 802.3af/at

• Total PoE Power370W

• Max. PoE Port Power30W

🛡️ Security and Management

• VLAN Support802.1Q VLAN

• Storm ControlSupported

• Loop PreventionThere is

• Central AdministrationReyee Cloud / Ruijie Cloud App

• QoS SupportPresent (L2–L4)

📡 Network Features

• MAC Address Table8K

• Jumbo Frame9K

• IGMP SnoopingSupported (Multicast optimization)

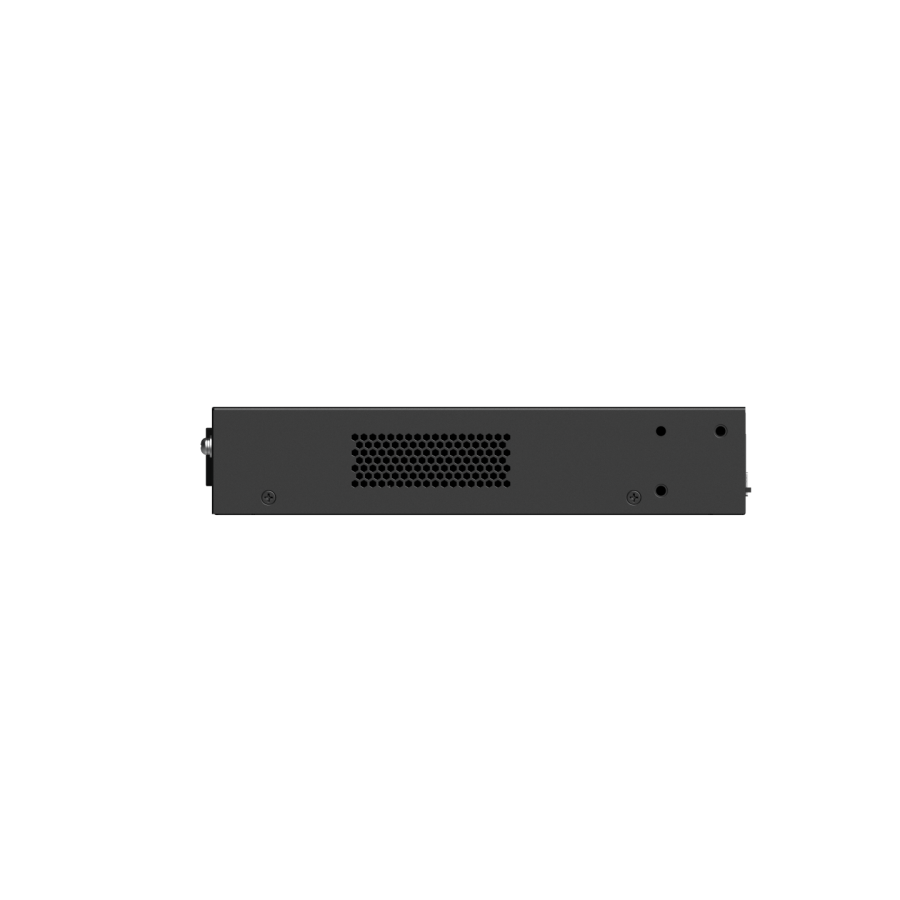

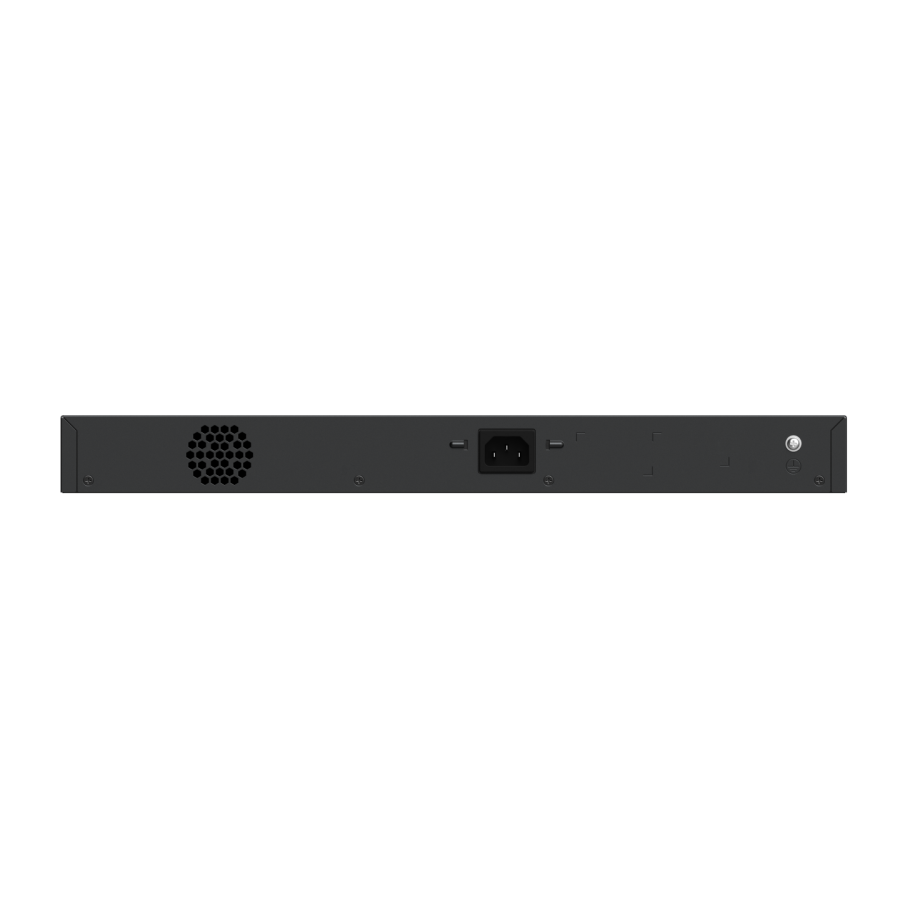

📐 Physical Properties

• Boyutlar440 × 290 × 44 mm (1U, rack-mountable)

• Ağırlık: ~4.5 kg

• Power ConsumptionMax. 400W (when PoE is loaded)

• Operating Temperature0°C ~ 50°C
