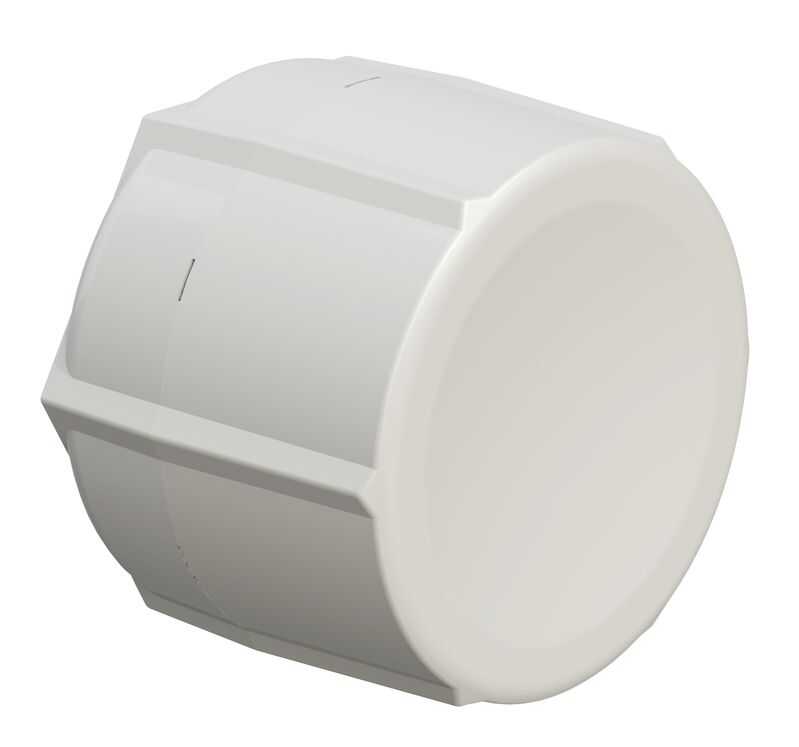

MikroTik RBSXTG-5HPnD-HGr2, also known asSXT HG5, it is a high-gain and high-power outdoor wireless device. It operates in the 5 GHz band and is ideal for point-to-point (PtP) connections, backhaul solutions, and remote client (CPE) applications thanks to its integrated 17 dBi panel antenna.
Model Code: RBSXTG-5HPnD-HGr2
İşlemci: Atheros AR9344, 600 MHz, 1 core
RAM: 64 MB
Depolama: 128 MB NAND Flash
Operating System: RouterOS (License Level 4)
Boyutlar: 140 x 140 x 100 mm
Ağırlık: Approximately 380 g
Operating Temperature: Between -30°C and +80°C
MTBF: Approximately 100,000 hours @ 25°C
Frequency Band: 5 GHz (4920–6100 MHz; may vary depending on country regulations)
Wireless Standards: 802.11a/n (Wi-Fi 4), 2x2 MIMO
Maximum Data Rate: 300 Mbps
Antenna Gain: 17 dBi (±2 dB)
Beam Width: 24°
Polarizasyon: Pair (vertical and horizontal)
Inter-Port Isolation: -30 dB
VSWR: 1.43
Wireless Chipset: AR9344
| Modülasyon | Output Power (dBm) | Purchase Sensitivity (dBm) |
|---|---|---|
| 6 Mbps | 31 | -92 |
| 54 Mbps | 28 | -77 |
| MCS0 | 30 | -93 |
| MCS7 | 26 | -71 |
Ethernet Port: 1 x 10/100/1000 Mbps Gigabit Ethernet
USB Port: 1 x USB 2.0 Type-A (for example, for 3G/4G modem)
Power Input: 6–30 V Passive PoE
Maximum Power Consumption:11 W
Soğutma: Pasif
LED Indicators: Power, Ethernet, and 5 wireless signal level LEDs.
Ekstralar: Reset button, beeper, voltage and temperature monitor, 16 kV ESD protection
Case Features: Weather-resistant, suitable for outdoor use.

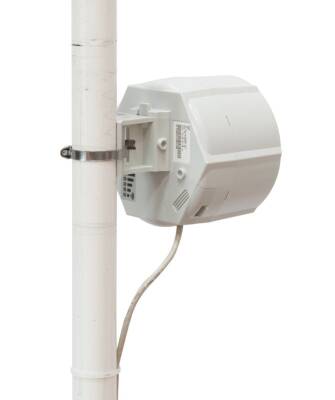

Montaj: Integrated mounting ring and hose clamp for direct installation.
Package Contents:
SXT HG5 device
24V 0.8A power adapter
Gigabit PoE injector
Assembly apparatus
