RBMQS MOBILE QUICK SETUP

MikroTik RBMQS(Mobile Quick Setup) is a compact Wi-Fi interfaced auxiliary device specifically designed for field installations and maintenance operations. The device allows you to manage MikroTik and other devices via a smartphone or tablet, even in environments without an Ethernet connection.

🔧 Technical Specifications

• Product Code: RBMQS

• İşlemci: ESP32, 160 MHz

• Depolama: 2 MB flash memory

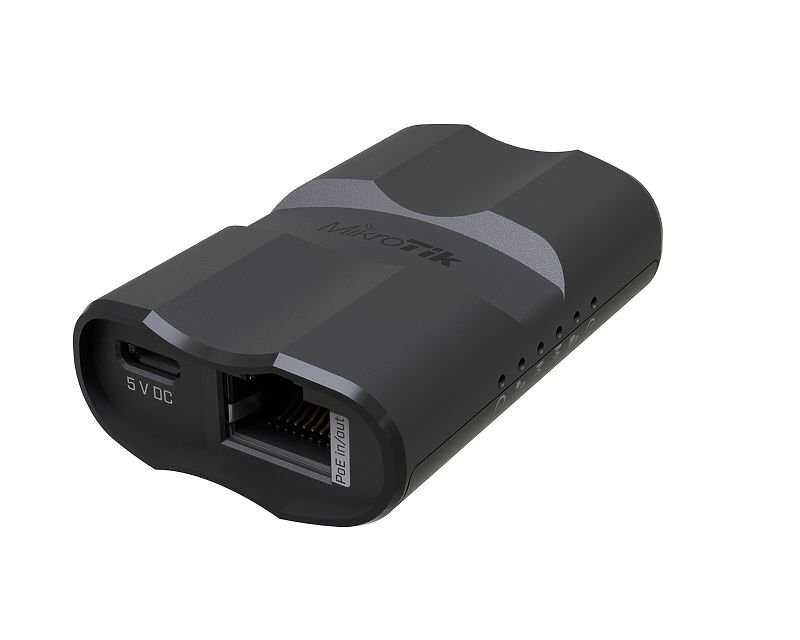

• Ethernet Port: 1 × 10/100 Mbps RJ45

• Wireless Connection: 2.4 GHz 802.11b/g/n (Wi-Fi 4)

• Antenna Gain: 1.5 dBi (internal antenna)

• Power Input:

  • MicroUSB 5 V (recommended power bank output >2.1 A)

  • Passive PoE, 5 – 30 V

• PoE Output: Passive PoE, 12 V 400 mA (only when using USB 5 V input)

• Maximum Power Consumption: 7 W (with additional devices), 1 W (device only)

• Boyutlar: 40 x 64 x 21 mm

• Operating Temperature: -20°C to +70°C

📦 Box Contents

• 1 × MikroTik RBMQS device

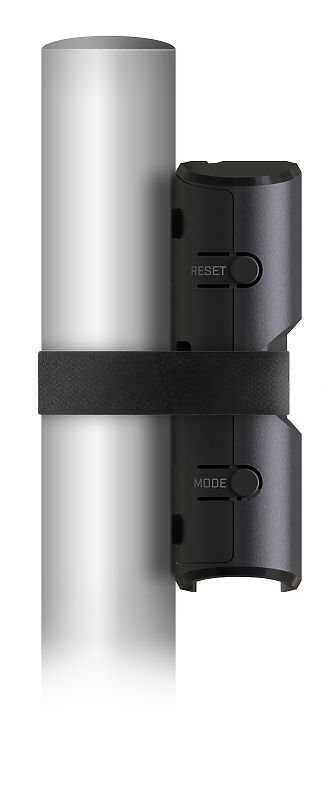

• Assembly belt

⚙️ Usage Scenarios

• Field Installations: It is ideal for the installation and basic configuration of CPE devices.

• Maintenance and Diagnosis: With the PoE output, devices can be operated to perform maintenance and diagnostic procedures.

• Temporary Access Point: It can be used as a temporary Wi-Fi access point for a limited number of clients.

• Netinstall Support: It can be used to perform the Netinstall process on MikroTik devices.
