RB912UAG-6HPnD-OUT

Product Code : ST01225
3,063.60 TL + VAT
Price Alert
3,063.60 TL + VAT

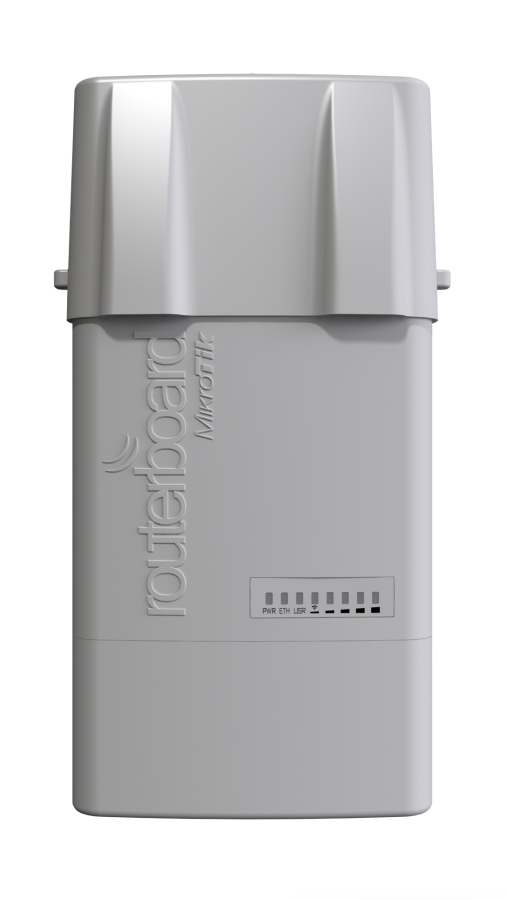

MikroTik RB912UAG-6HPnD-OUT, also known asBaseBox 6, is a high-power wireless access point designed for outdoor use. This device, built on the RB912 platform, operates in the 6 GHz frequency band and is particularly suitable for professional network installations that use licensed spectrum.


🔧 Technical Specifications

  • Product Code: RB912UAG-6HPnD-OUT

  • İşlemci: AR9342, single-core, 600 MHz

  • RAM: 64 MB

  • Depolama: 128 MB NAND Flash

  • RouterOS License: Level 4

  • Boyutlar: 246 x 135 x 50 mm

  • Operating Temperature: -40°C to +70°C

  • Mean Time Between Failures (MTBF): Approximately 100,000 hours @ 25°C


📡 Wireless Features

  • Frequency Range: 5.9 – 6.4 GHz (for licensed use only)

  • Standartlar: 802.11a/n (Wi-Fi 4)

  • Maximum Data Rate: 300 Mbit/s

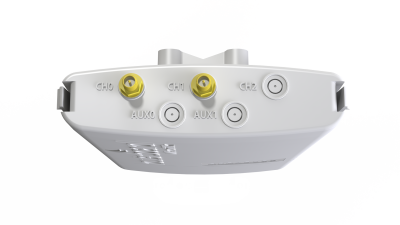

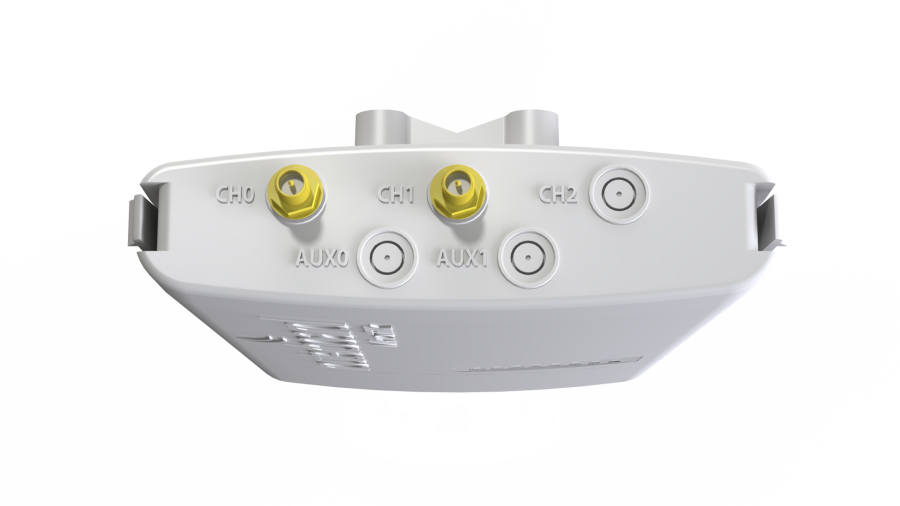

  • Antenna Connections: 2 RP-SMA connectors (3 additional connection points can be added)

  • Wireless Chip: AR9342

  • Chain Count: 2 (2x2 MIMO)


🔌 Connection and Power

  • Ethernet: 1 x 10/100/1000 Mbps Gigabit Ethernet port

  • PoE Input: Passive PoE (10–30 V)

  • Maximum Power Consumption23 W

  • USB: 1 x USB Type-A (max. 1 A)

  • miniPCIe Slot: 1 unit (for additional wireless interface or 3G/4G modem)

  • SIM Slot: 1 piece Mini SIM (for modem support)


🛠️ Physical and Other Properties

  • Kasa: IP54 certified, water and dust resistant outdoor enclosure

  • Soğutma: Pasif

  • Embedded Features: PCB temperature monitor, voltage monitor, beeper

  • Montaj: Direct mounting ring and DIN rail mounting (K-27) are included.


📦 Box Contents

  • RB912UAG-6HPnD-OUT device

  • 24V 1.2A power adapter

  • Gigabit PoE injector

  • DIN mounting fixture (K-27)

  • Metal mounting ring
