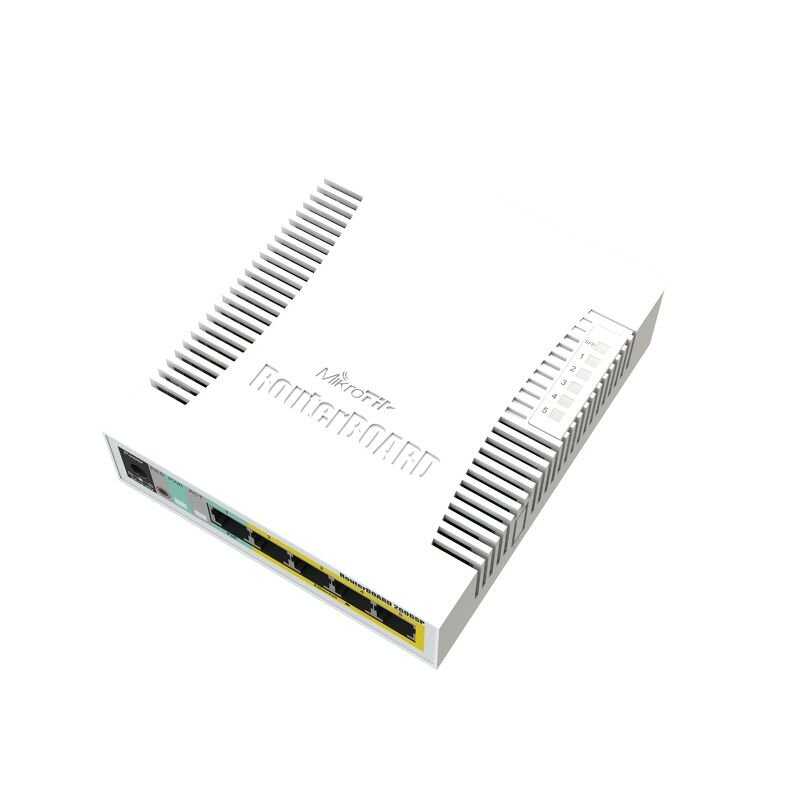

RB260GSP (CSS106-1G-4P-1S) 5 Port PoE Switch

MikroTik RB260GSP veya CSS106-1G-4P-1SIt is a 5-port Gigabit Ethernet switch designed for small office and home use.It provides passive PoE output through Ethernet ports, enabling it to power PoE-supported devices such as IP cameras, access points, and VoIP phones. Additionally, it offers fiber connection support with one SFP port.

🔧 Technical Specifications

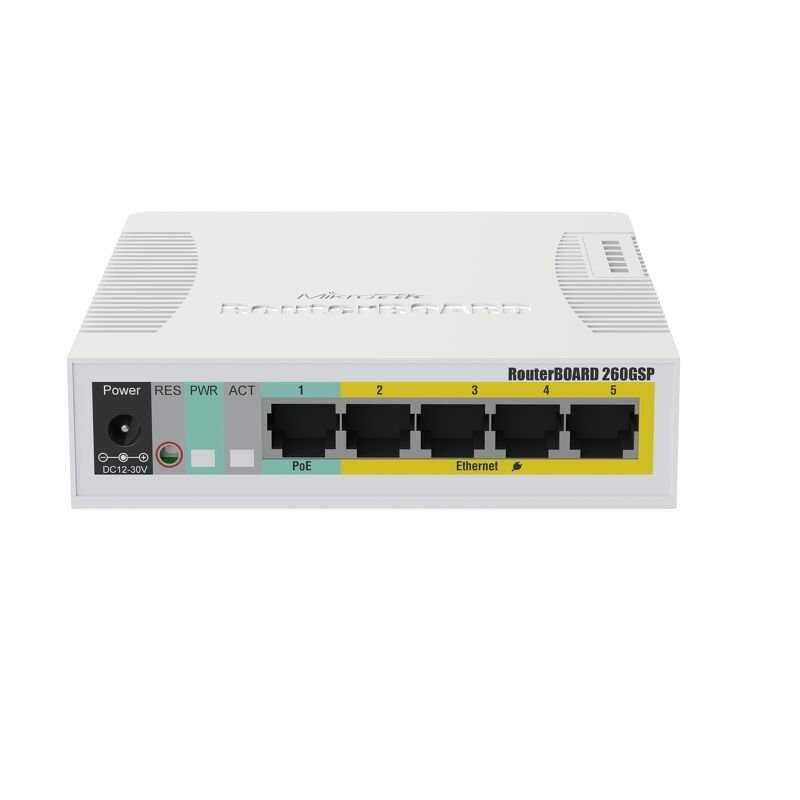

• Ethernet Ports: 5 x 10/100/1000 Mbps (RJ45)

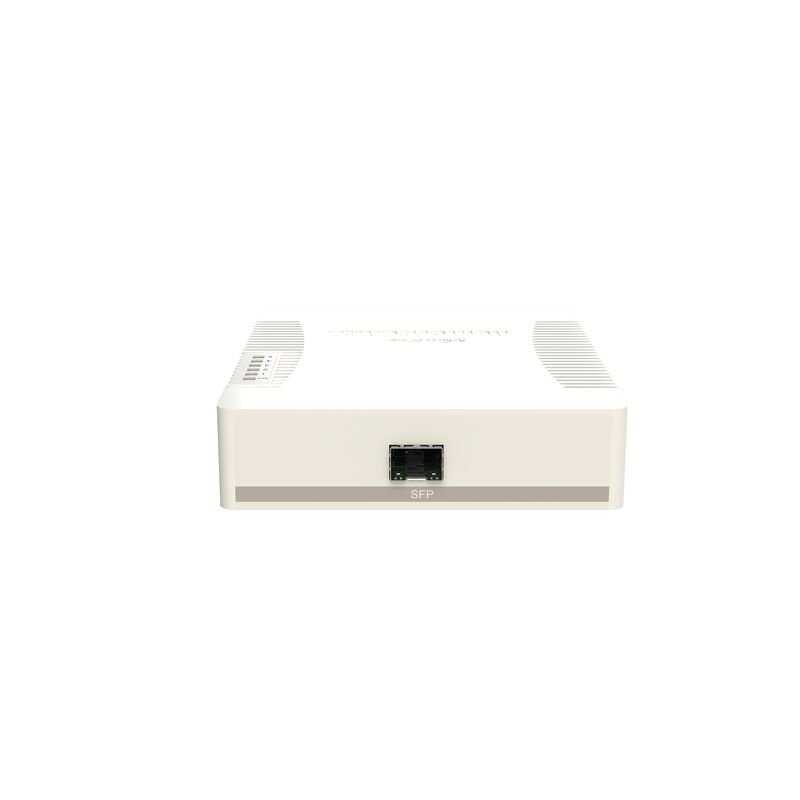

• SFP Port: 1 x Gigabit SFP (mini-GBIC)

• PoE Output: Passive PoE output through Ether2–Ether5 ports

  • Maximum output: 1 A / port (total 2 A)

  • Input voltage: 11–30 V (DC jack or PoE-IN)

• İşlemci: Atheros Switch Chip (QCA8337)

• RAM: 128 KB FLASH

• Operating System: MikroTik SwOS

• Boyutlar: 113 x 139 x 28 mm

• Maximum Power Consumption: 53 W

• Operating Temperature: -20°C to +70°C

• Soğutma: Pasif

• Sertifikalar: CE, EAC, RoHS

• IP RatingIP20

⚙️ Management and Features

• Web-Based Management: Access via SwOS

• VLAN Support: 802.1Q VLAN tagging

• Port Forwarding: Transmission control on a port basis

• Bandwidth Limitation: Speed limit per port

• MAC Filtering: MAC address-based access control

• Port Reflection (Port Mirroring): Network traffic monitoring

• Broadcast Storm Control: Wax broadcast storm prevention

• Temperature and Voltage Monitoring: Hardware status monitoring

📦 Box Contents

• RB260GSP (CSS106-1G-4P-1S) device

• 24V 2.5A power adapter

• IEC power cable

🎯 Areas of Use

• Small Offices (SOHO): Ideal for powering and managing network devices.

• For Home Use: To power PoE-supported devices in home networks

• IP Camera Systems: Providing camera feed and network connection

• Access Points: To power and connect Wi-Fi access points
