QM

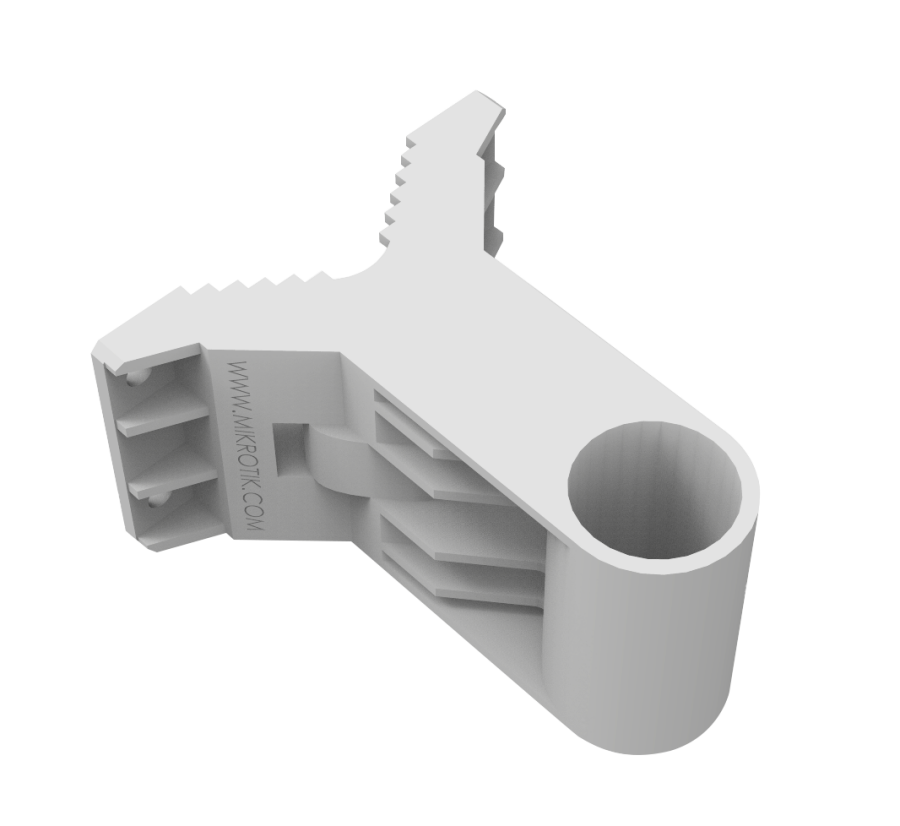

MikroTik QM(quickMOUNT) is a cost-effective and durable wall mount adapter designed for small point-to-point and sector antennas. Additionally, it can also be used as an adapter for transitioning from large-diameter poles to small-sized antenna mounting clips. This mounting apparatus allows antennas to be rotated up to 190° and enables the installation of two SXT devices simultaneously, facilitating the creation of a repeater access point or wide sector coverage area.​

📐 Technical Specifications

• Product Code: QM

• Boyutlar: 96 x 107.5 x 56 mm

• Tube Diameter: 35 mm

• Maximum Assembly Tube Diameter: 65 mm

• Maximum Antenna Weight: 1.5 kg

• Maximum Wind Load: 100 N

• Compatible Devices: SXT series, Omnitik, BaseBox, or other devices that can be mounted on a pole.

• Rotation Angle190°

• Operating Temperature Range: ±40°C

• Malzeme: anvilNITE™ composite

• Mounting Ring: K-41 screw set​

📦 Box Contents

• 1 x QM assembly fixture

• 1 x Metal ring

• 1 x K-41 screw set​

🧰 Areas of Use

• Mounting of small dot-dot and sector antennas on the wall or pole

• Used as a transition adapter from large diameter poles to small-sized antenna mounting clips.

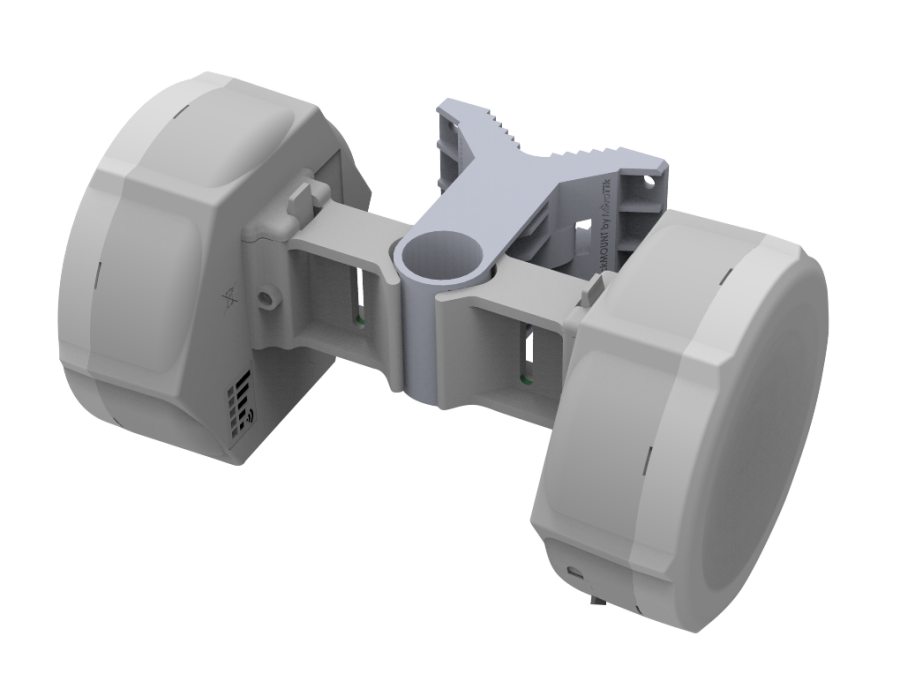

• Mounting two SXT devices simultaneously creates a repeater access point or wide sector coverage area.
