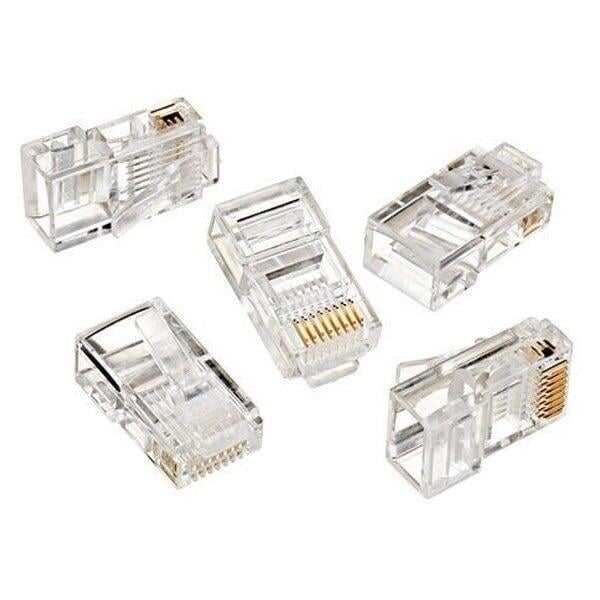

RJ45 CONNECTOR / RJ45 CAT5/CAT6 END 8P8C POWERMASTER (100-PACK)

🔌 PowerMaster RJ45 Connector – 8P8C CAT5/CAT6 (100-Piece Pack)

This product,Ethernet cables (CAT5/CAT5e/CAT6)attached to their ends, used to establish network connections8-pin (8P8C) RJ45 connectorsdir. Generally,crown pliersThe termination process is carried out with.

⚙️ Basic Technical Specifications

• Product Name:RJ45 8P8C Connector – PowerMaster

• Package Contents:100 pieces of connectors

• Category Compatibility:
  ✅ CAT5
  ✅ CAT5e
  ✅ CAT6 (standard, straight cable)

• Connection Type:8P8C(8 pin, 8 contact)
  Standard Ethernet / LAN connector

• Cable Type Compatibility:

  • UTP (Unshielded Twisted Pair)

  • Solid or stranded copper cable

• Malzeme:

  • Transparent polycarbonate body

  • Gold-plated pins (usually 3μ or 50μ inches)

• Conductive MaterialGold plating on phosphor bronze or copper alloy

• Number of Contacts:8 conductor pins

🛠️ Physical and Electrical Properties

• Connector TypeMale, modular

• Entrance Hole SizeCompatible with 24 AWG – 26 AWG cable

• Operating Temperature-10°C to +60°C

• Dayanıklılık:~Up to 750 connection cycles

• Termination MethodCrimping with Krone punchdown tool

✅ Application Areas

• Making Ethernet cable ends

• RJ45 patch cable production

• Network (LAN) installations

• CCTV, IP camera, and VoIP systems

• Switch, router, and access point connections

📦 Package Type

• 100 transparent plastic bags or boxes

• Suitable for mass cable production or technical services.

⚠️ Points to Note

• When terminating CAT6 cable, careful installation is required due to the thick conductor and separator structure.

• It is recommended to use a quality crimping tool.

• This model is not suitable for STP (Shielded) cables; STP compatible metal armored RJ45 should be preferred.
