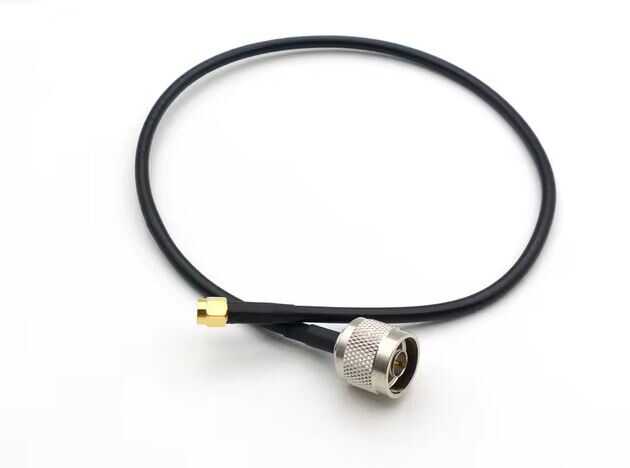

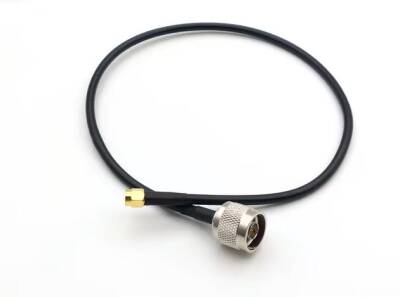

N-Type Male Connector to RP-SMA Pigtail Cable, is a special coaxial cable used to establish connections between wireless network equipment. This cable provides a flexible and low-loss connection between an N-Type male connector and an RP-SMA female connector.
Connector TypesN-Type Male → RP-SMA Female
Cable TypeLow loss LMR-200 or RG58 C/U copper cable
Frequency RangeFrom DC to 6 GHz
Empedans: 50Ω nominal impedance
Transition Loss:
Approximately 0.7 dB at 2 GHz
Approximately 0.8 dB at 2.5 GHz
Approximately 1.0 dB at 3 GHz
Approximately 1.2 dB at 5 GHz
Approximately 1.3 dB at 5.5 GHz
Approximately 1.4 dB at 6 GHz
VSWR (Voltage Standing Wave Ratio):
0–3 GHz range maximum 1.5:1
3–6 GHz range with a maximum of 1.6:1
Operating TemperatureBetween -10°C and +60°C
Storage TemperatureBetween -40°C and +80°C
Cable LengthGenerally 50 cm (optional 1 m or longer options available)
Low Signal LossIt provides high-performance data transmission through the use of low-loss cable.
Flexible ConnectionIt establishes flexible and reliable connections among different connector types.
Easy InstallationIt offers quick and easy installation with plug-and-play capability.
Durable StructureIt is made from materials resistant to outdoor weather conditions.
UyumlulukEnsure that the devices to be used are compatible with the connector types.
Cable LengthAs the cable length increases, signal loss may also increase; therefore, selecting the appropriate length is important.
MontajDuring cable assembly, it must be ensured that the connectors are properly positioned and tight.
N-Type Male to RP-SMA Pigtail Cable, is an ideal solution for establishing reliable and high-quality connections among wireless network equipment. By selecting the appropriate connector type and cable length for your usage purpose and devices, you can enhance your network performance.
