MTAO-LTE-5D-SQ

MikroTik MTAO-LTE-5D-SQ(mANT LTE 5o) is an omnidirectional outdoor antenna specifically designed for LTE frequencies, offering 5 dBi gain. This antenna is specifically optimized to work compatibly with MikroTik's LTE devices (such as the wAP LTE and LtAP series).​wifi-stock.com+10balticnetworks.com+10axuse.com+10

🔧 Technical Specifications

• Model Code: MTAO-LTE-5D-SQ

• Frequency Range: 699 – 2690 MHz (LTE, 3G, 4G)

• Antenna Type: Omnidireksiyonel

• Chain Count: 2x2 MIMO

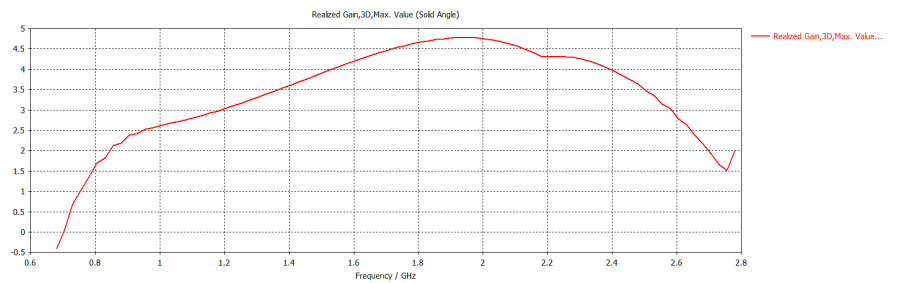

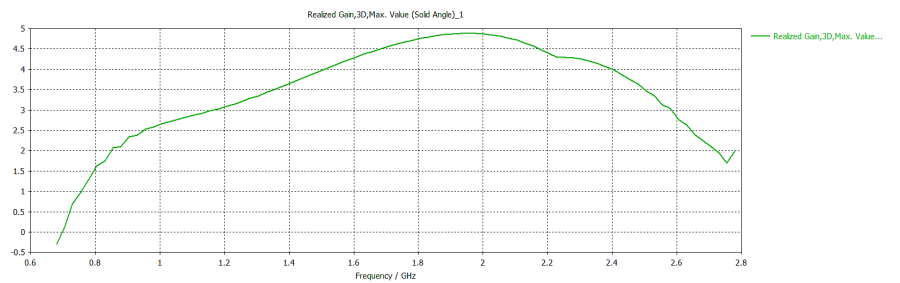

• Antenna Gain: 5 dBi

• Beam Width: 360° (full circumferential)

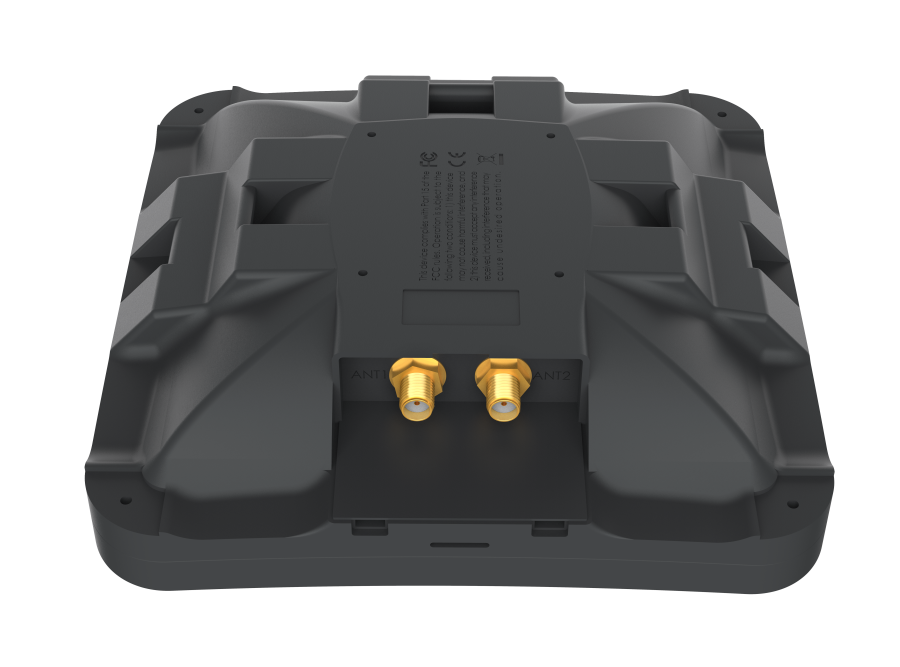

• Konnektörler: 2 x SMA female

• Boyutlar: 129 x 129 x 34 mm

• Operating Temperature: Tested between -40°C and +70°C.

• IP Certificate: IP54 (suitable for outdoor use)

• Mounting Apparatus: A metal mounting ring is included.

• Uyumluluk: It is compatible with MikroTik LTE devices such as wAP LTE, LtAP mini, LtAP LTE, Chateau LTE12. ​

📦 Package Contents

• MTAO-LTE-5D-SQ antenna

• Metal mounting ring

• User manual​

🎯 Areas of Use

• Point-to-Point (PtP) and Point-to-Multipoint (PtMP) Connections: It is ideal for long-distance LTE connections.

• Open Area Applications: Its durable structure resistant to harsh weather conditions provides reliable wireless connections in open areas.

• Mobile Applications: It is suitable for providing in-vehicle internet access.
