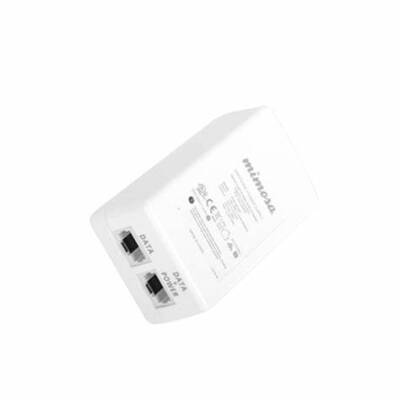

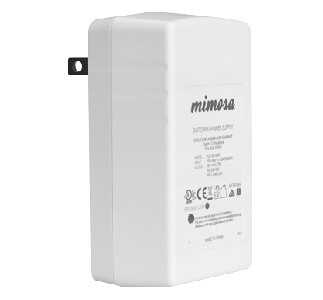

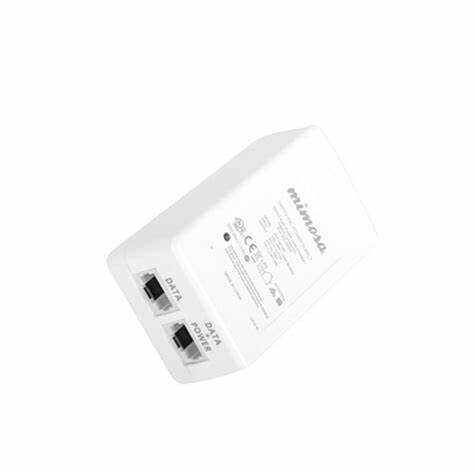

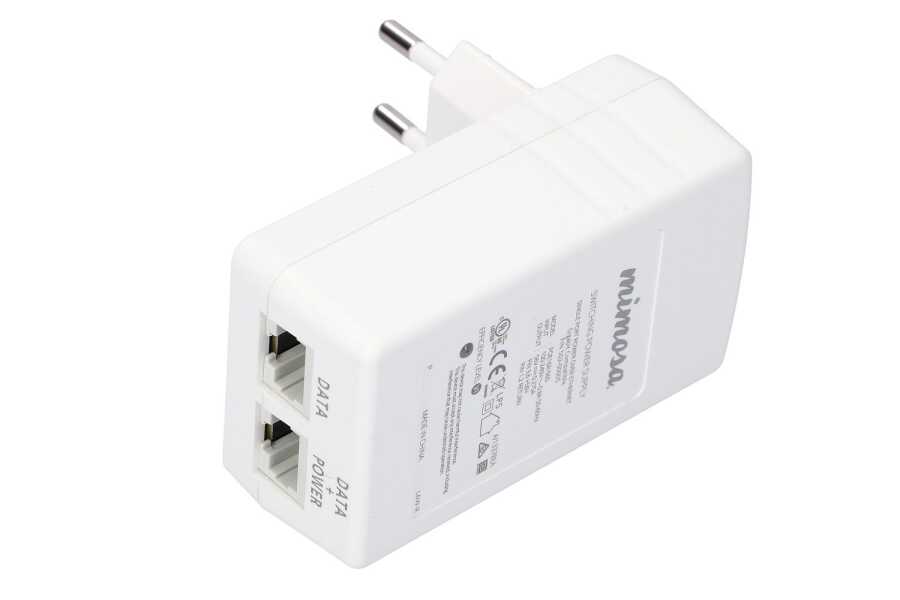

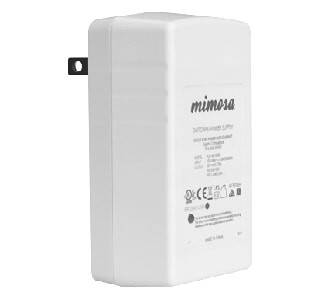

MIMOSA PoE 56V, NA ADAPTOR

The Mimosa PoE 56V NA adapter is a passive Gigabit PoE (Power over Ethernet) injector specifically designed for Mimosa's high-performance wireless devices such as the B5, B5c, B11, A5, A5c, and B24. With its compact structure and reliable power transmission, it is a preferred solution for professional wireless network installations.

🔧 Technical Specifications

• Model Number: 100-00022

• Output Voltage: 56 V DC

• Output Current: 0.93 A

• Maximum Power: 52 W

• Input Voltage: 100–240 VAC ~ 0.8 A, 50–60 Hz

• Ethernet Ports: 2 x RJ-45 (Gigabit supported)

• Pin Configuration:

  • PIN 3/6: +56 V

  • PIN 1/2: GND

• Boyutlar: 86 mm x 51 mm x 33 mm

• Ağırlık: 0.11 kg

• Verimlilik: 84% (Level VI)

• Protection Features: Overcurrent and overvoltage protection

• Operating Temperature: -20°C to +50°C

• Storage Temperature: -20°C to +70°C

• Moisture Resistance: 5% to 90% (non-condensing)

• Compliance and Certifications: UL/cUL 60950-1, CE, CB, RCM/C-Tick, TUV:GS, FCC Part 15 Class B, EN 55022 Class B, IEC61000, WEEE/RoHS

🔌 Compatible Devices

This PoE adapter is compatible with the following Mimosa devices:

• B5 and B5c backhaul radio units

• B11 high bandwidth connection device

• A5 and A5c access points

• B24 24 GHz wireless connection device

📦 Package Contents

• 1 x Mimosa 56V 0.275A Gigabit PoE Wall Plug adapter

• 1 x Country-specific AC power cable (US type plug for NA version)
