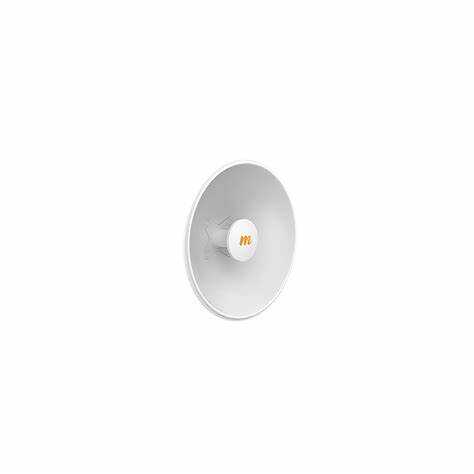

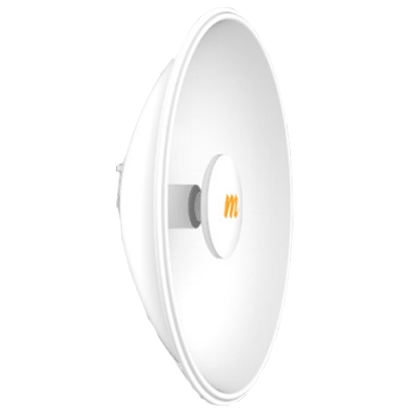

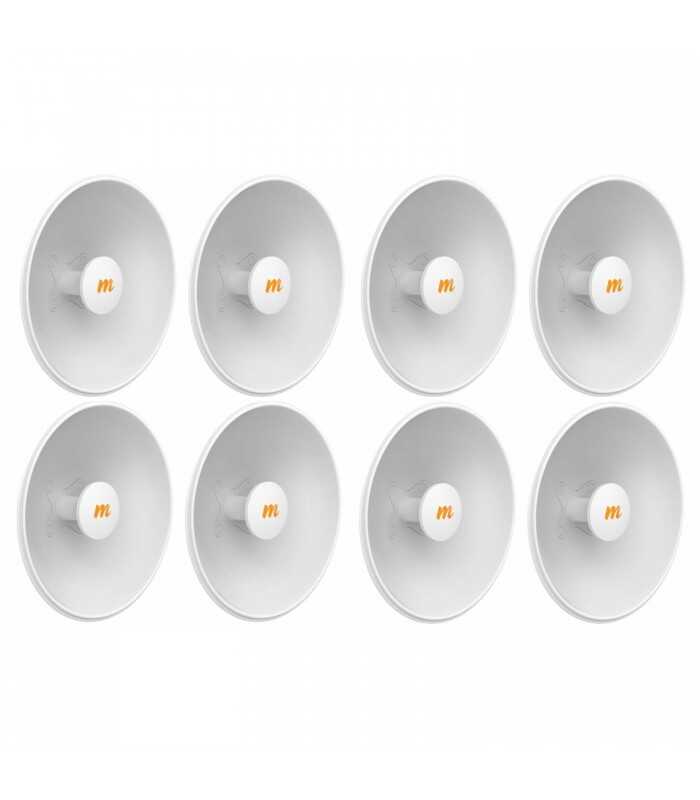

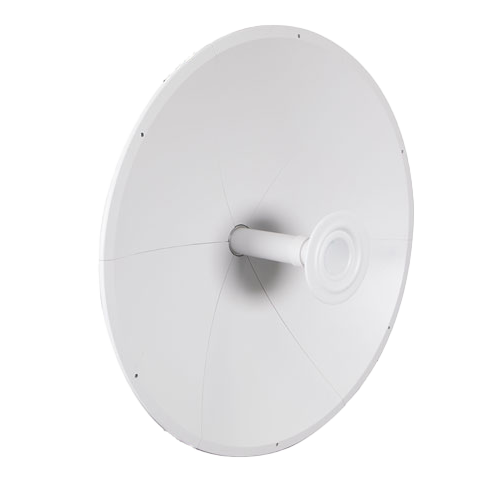

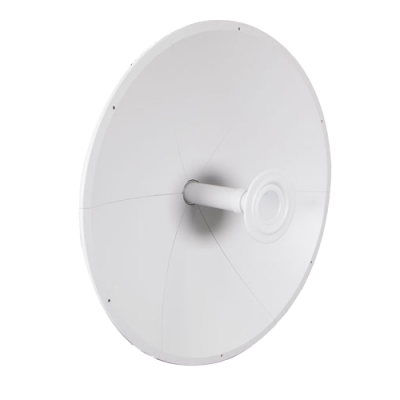

Mimosa N5-X30 is a high-gain, modular parabolic antenna specifically designed for long-distance point-to-point (PtP) and point-to-multipoint (PtMP) wireless connections. This antenna, compatible with Mimosa's C5x, C6x, and B5x radio units, offers easy and lossless installation thanks to its twist-on connection system.
Frequency Range: 4.9 – 6.4 GHz
Kazanç: 30 dBi (in the 5.1–5.9 GHz range), 31 dBi (in the 5.9–6.4 GHz range)
Beamwidth (HPBW): 5° (horizontal and vertical)
Port-to-Port Isolation: 30 dB
Front-to-Back Ratio: 35 dB
Empedans: 50 Ohm
Maximum Input Power: 50 W
Polarizasyon: Vertical/Horizontal or ±45° inclined
Operating Temperature: -40°C to +70°C
Lightning Protection: DC grounded
Çap: 600 mm (60 cm)
Ağırlık: Approximately 6.5 kg
Malzeme: Aluminum body
Montaj: Suitable for direct mounting; tilt adjustment can be made.
Connection Type: Twist-on (direct connection to the radio unit)
Compatible Devices: Mimosa C5x, C6x, and B5x radio units
Usage Scenarios:
Long-distance wireless backhaul connections
High-speed internet access in rural and remote areas
Industrial and corporate network solutions
Applications requiring high bandwidth for telecom operators and service providers
Mimosa N5-X30, with its high gain and narrow beam width, enhances signal quality, especially in environments with high interference rates, ensuring reliable connections. With its modular structure and easy assembly features, it offers flexible solutions for different application needs.
