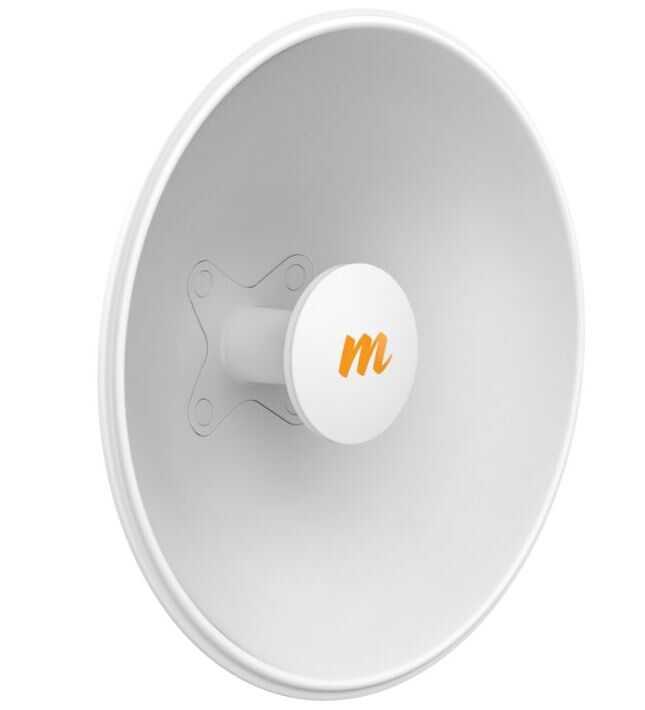

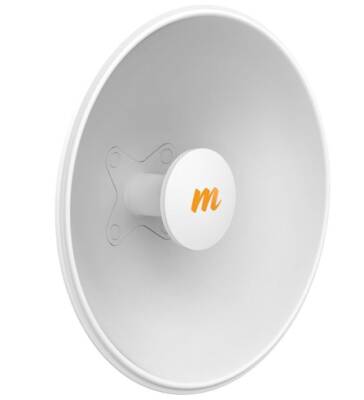

Mimosa N5-X25 is a modular parabolic directional antenna designed specifically for compatibility with Mimosa C5x and C6x radio units, featuring a 25 dBi gain. This antenna operates in the 4.9–6.4 GHz frequency range, delivering high performance in both licensed and unlicensed bands. It is especially ideal for long-distance point-to-point (PtP) and point-to-multipoint (PtMP) connections.
Frequency Range: 4.9 – 6.4 GHz
Kazanç: 25 dBi
Polarizasyon: Dual-slant 45°
Beam Width (3 dB): 8° (symmetric)
Front-Back Ratio (min): 40 dB
Front-Side Ratio (min):45 dB
Boyutlar: Diameter: 429 mm (16.89"), Depth: 116 mm (4.57")
Ağırlık: 0.98 kg (2.15 lbs)
Montaj: Mimosa N5-X twist-on connector
Wind Resistance: 200 km/h (125 mph)
Wind Load: 36.26 kg @ 160 km/h (79.95 lbs @ 100 mph)
Operating Temperature: -40°C to +55°C
Mimosa C5x: With its modular structure, when used together with the N5-X25 antenna, the total gain increases to 25 dBi.
Mimosa C6x: With its advanced features, it works in harmony with the N5-X25 antenna to deliver high performance.
Long-distance PtP and PtMP connections
Broadband service providers
Public safety and emergency communication
Corporate and campus networks
Wi-Fi, video security, and Smart City applications.
