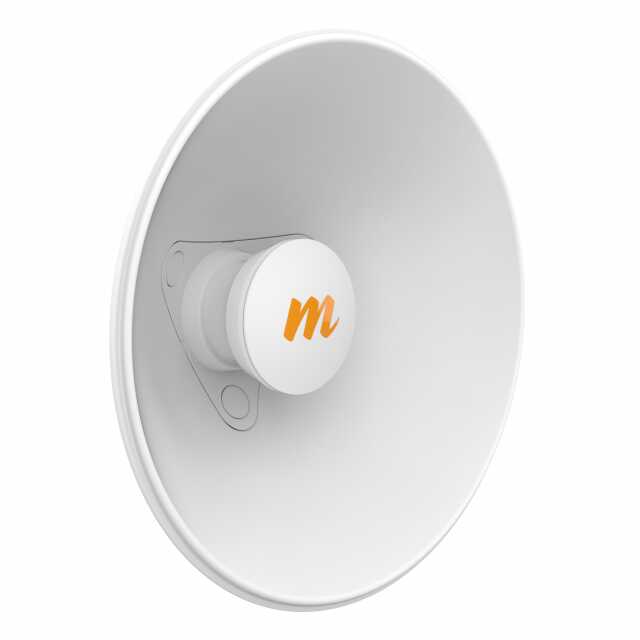

Mimosa N5-X20 is a modular parabolic directional antenna with 20 dBi gain, specifically designed to be compatible with Mimosa C5x and C6x radio units. This antenna operates in the 4.9–6.4 GHz frequency range, delivering high performance in both licensed and unlicensed bands. It is especially ideal for short and medium-range point-to-point (PtP) and point-to-multipoint (PtMP) connections.
Frequency Range: 4.9 – 6.4 GHz
Kazanç: 20 dBi
Polarizasyon: Dual-slant 45°
Beam Width (3 dB): 12° (symmetric)
Front-Back Ratio (min): 35 dB
Front-Side Ratio (min): 37 dB
Boyutlar: Diameter: 270 mm, Depth: 83 mm
Ağırlık: 0.77 kg
Montaj: Mimosa N5-X twist-on connector
Wind Resistance: 200 mph
Wind Load: 14.55 kg @ 160 km/h
Mimosa C5x: With its modular structure, when used with the N5-X20 antenna, it increases the total gain to 20 dBi.
Mimosa C6x: With its advanced features, it works in harmony with the N5-X20 antenna to deliver high performance.
Short and medium range PtP and PtMP connections
Broadband service providers
Public safety and emergency communication
Corporate and campus networks
Wi-Fi, video security, and Smart City applications.
