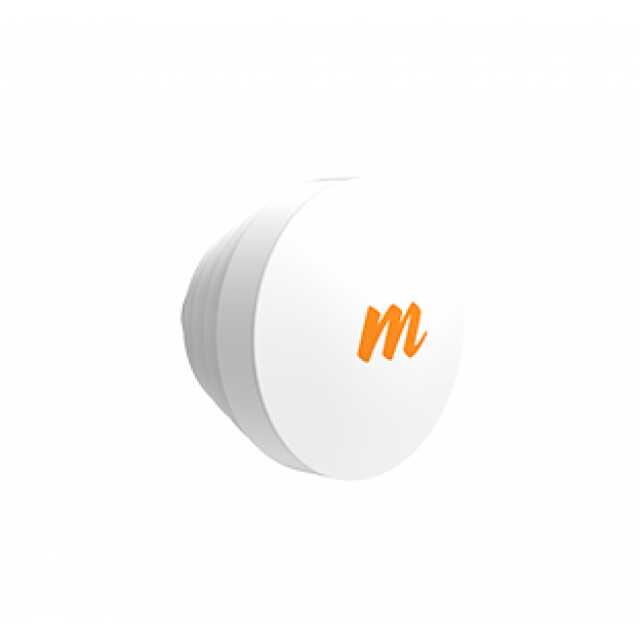

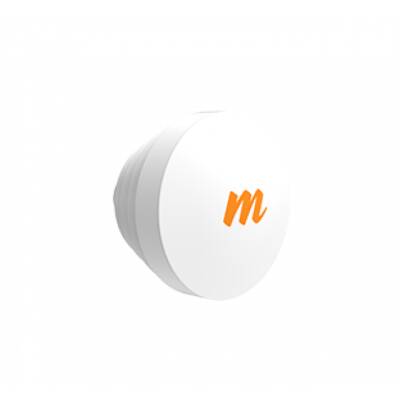

MIMOSA N5-X16

Mimosa N5-X16 is a modular horn antenna designed specifically to be compatible with Mimosa C5x and C6x radio units, featuring a 16 dBi gain. This antenna operates in the 4.9–6.4 GHz frequency range, delivering high performance in both licensed and unlicensed bands. It is particularly ideal for short and medium-range point-to-point (PtP) and point-to-multipoint (PtMP) connections.

📡 Basic Technical Specifications

• Frequency Range4.9 – 6.4 GHz

• Kazanç: 16 dBi

• PolarizasyonDual-slant 45°

• Beam Width (3 dB)22° (symmetric)

• Front-Back Ratio (min)50 dB

• Front-Side Ratio (min): 43 dB

• MontajMimosa N5-X twist-on connector

• BoyutlarDiameter: 160 mm (6.29"), Depth: 116 mm (4.57")

• Ağırlık0.61 kg (1.35 lbs)

• Wind Resistance: 200 km/h (125 mph)

• Wind Load5.13 kg @ 160 km/h (11.30 lbs @ 100 mph)

• Operating Temperature-40°C to +55°C

🔧 Compatible Devices

• Mimosa C5xWith its modular structure, when used with the N5-X16 antenna, the total gain increases to 16 dBi.

• Mimosa C6xWith its advanced features, it works in harmony with the N5-X16 antenna to deliver high performance.

🎯 Application Areas

• Short and medium range PtP and PtMP connections

• Broadband service providers

• Public safety and emergency communication

• Corporate and campus networks

• Wi-Fi, video security, and Smart City applications.
