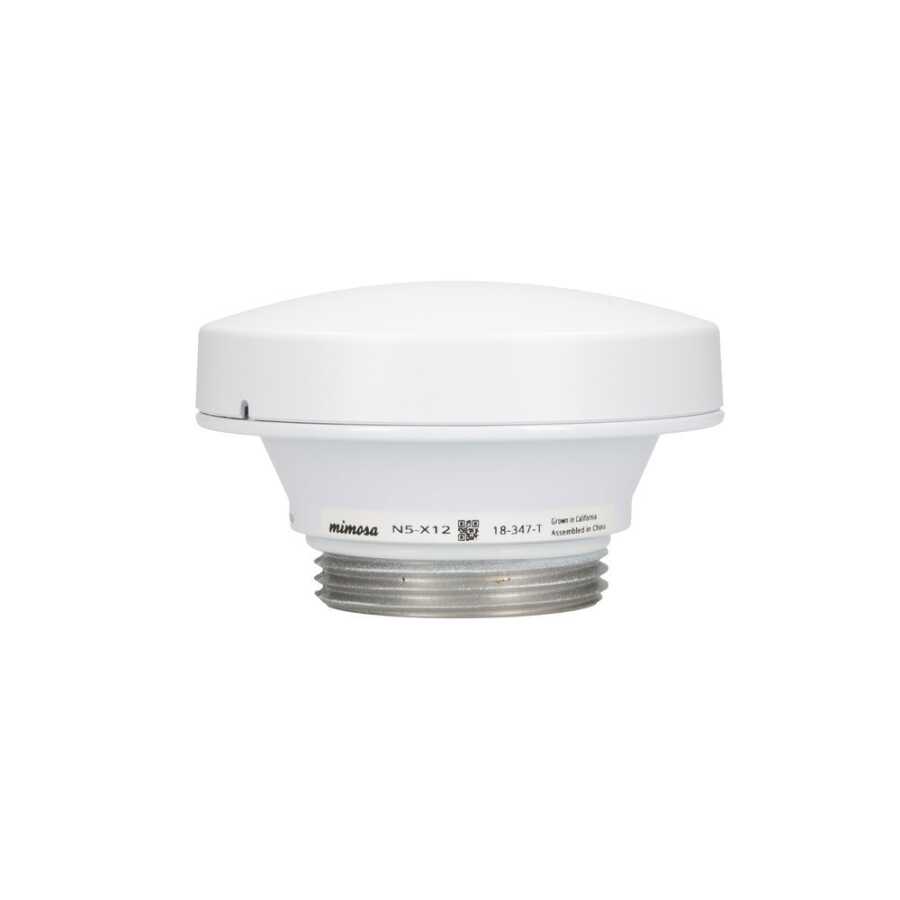

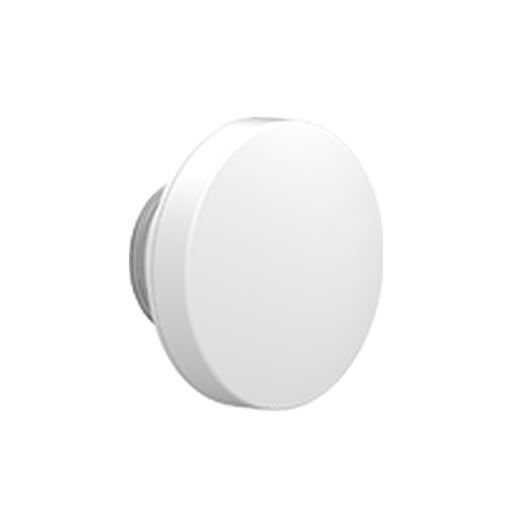

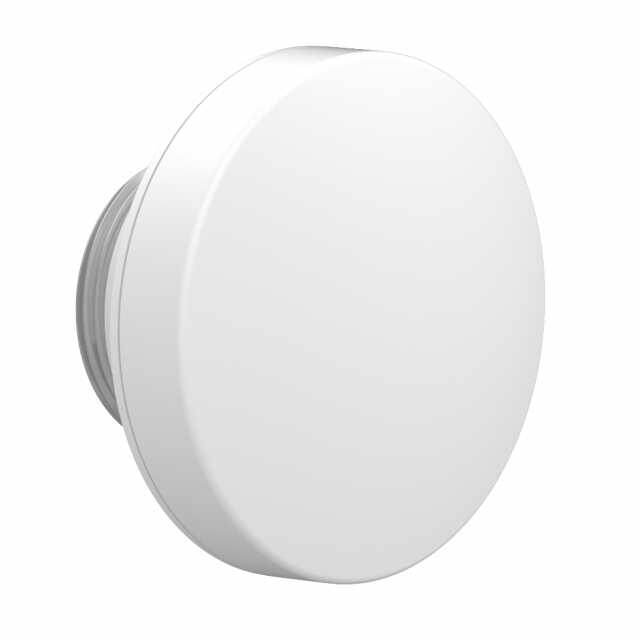

Mimosa N5-X12 is a modular horn antenna with 12 dBi gain, specifically designed to be compatible with Mimosa C5x and C6x radio units. This antenna operates in the 4.9–6.4 GHz frequency range, delivering high performance in both licensed and unlicensed bands. It is especially ideal for short and medium-range point-to-point (PtP) and point-to-multipoint (PtMP) connections.
Frequency Range: 4.9 – 6.4 GHz
Kazanç: 12 dBi
Polarizasyon: Dual-slant 45°
Beam Width (3 dB): 38° (symmetric)
Front-Back Ratio (min): 29 dB
Front-Side Ratio (min): 27 dB
Montaj: Mimosa N5-X twist-on connector
Boyutlar: Diameter: 76 mm (2.99"), Depth: 67 mm (2.63")
Ağırlık: 0.16 kg (0.35 lbs)
Wind Resistance: 200 km/h (125 mph)
Wind Load: 3.27 kg @ 160 km/h (7.20 lbs @ 100 mph)
Operating Temperature: -40°C to +55°C
Mimosa C5x: With its modular structure, when used together with the N5-X12 antenna, the total gain increases to 12 dBi.
Mimosa C6x: With its advanced features, it works in harmony with the N5-X12 antenna to deliver high performance.
Short and medium range PtP and PtMP connections
Broadband service providers
Public safety and emergency communication
Corporate and campus networks
Wi-Fi, video security, and Smart City applications.
