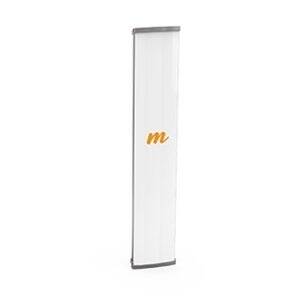

Mimosa N5-45x4 is a 4-port beamforming antenna operating in the 4.9–6.4 GHz frequency range, offering 45° sector coverage and providing 22 dBi gain. It is specifically designed for use with the Mimosa A5c 4x4 MIMO access point and offers long-distance performance with high noise rejection.
Frequency Range: 4.9 – 6.4 GHz
Kazanç: 22 dBi (with +3 dB beamforming)
Polarizasyon: Dual-slant 45°
Azimuth Beamwidth (3 dB)42°
Elevation Beamwidth (3 dB)9°
Electrical Obliquity2°
Front-to-Back Ratio: ≥ 43 dB
Cross Polarization Isolation:30 dB
Port to Port Isolation:10 dB
Empedans: 50 Ω
Maximum Input Power: 30 dBm
Boyutlar: Height: 734 mm, Width: 143 mm, Depth: 76 mm
Ağırlık: 4.08 kg

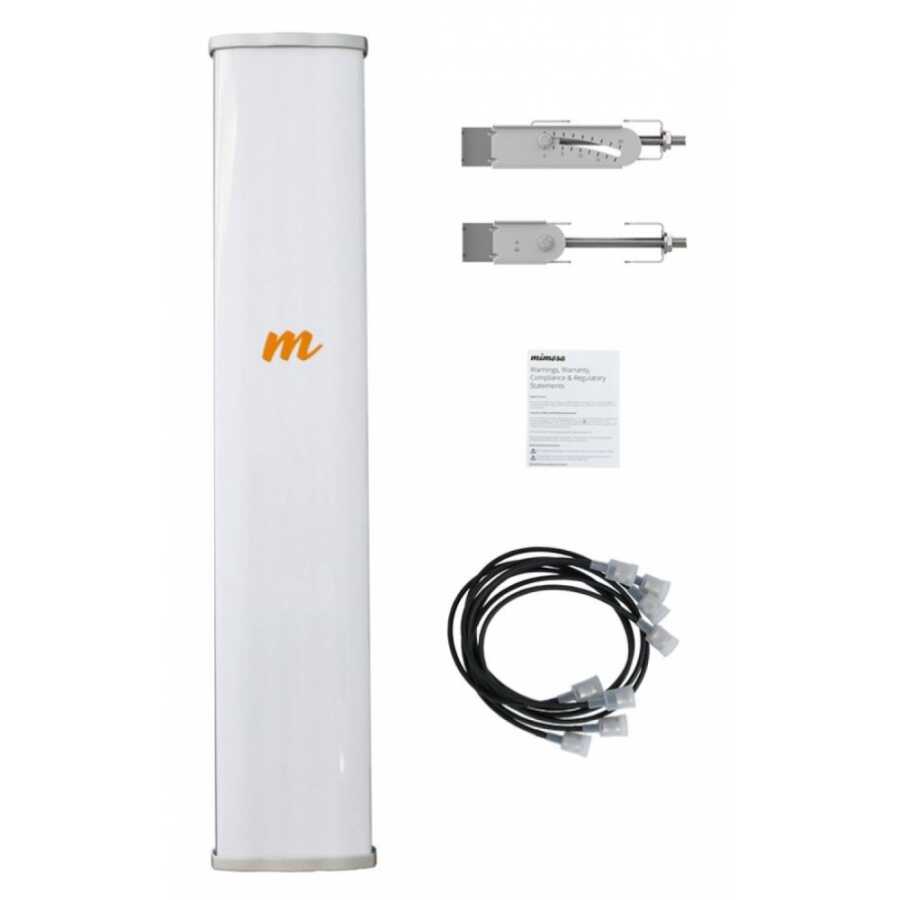

RF Connectors: 4 pieces of N type female connectors (including 1 meter LMR 240 N-N cables)

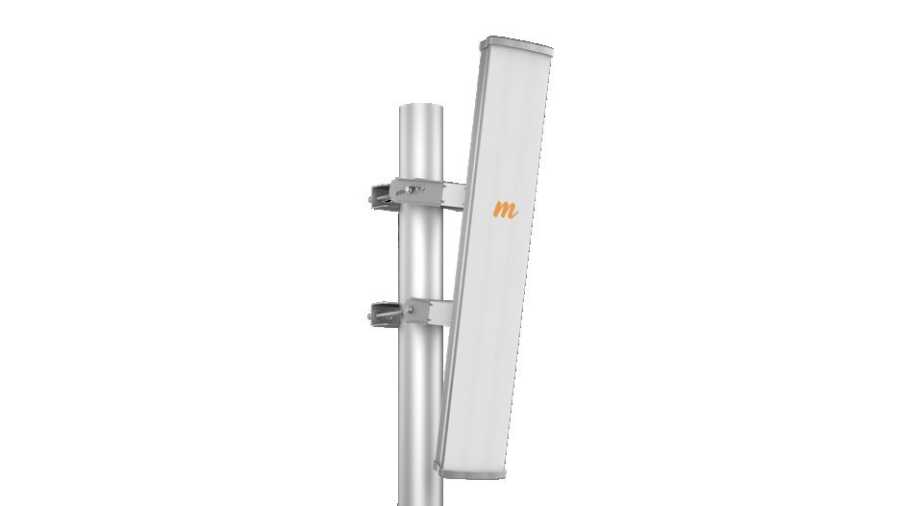

Montaj: Galvanized steel, dual-link pole mounting; 20° mechanical up/down tilt adjustment; 1.5"–3.5" (38–90 mm) pole diameter compatibility.
Wind Resistance: 200 mph
Wind Load: 4.77 kg @ 160 km/h
Operating Temperature: -40°C to +55°C
Protection ClassIP55
Mimosa A5c: It is fully compatible with the 4x4 MIMO access point.
Third Party 2x2 MIMO Radio Devices: It can double the coverage capacity per tower by operating on two different channels simultaneously.
Broadband internet distribution in rural and semi-urban areas
Public safety and emergency communication networks

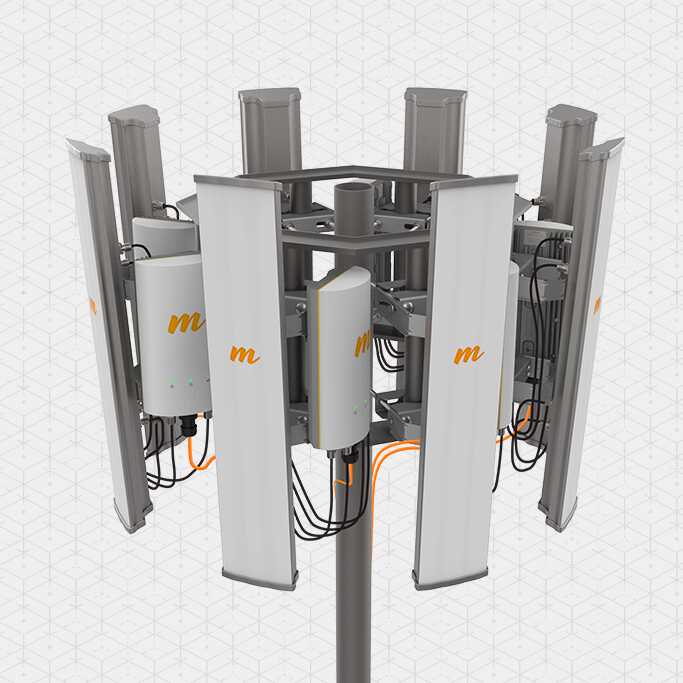

In tower and field installations, scenarios requiring high spectrum efficiency and channel reuse.
High noise rejection and long-distance connection requirements in environments with intense interference.
