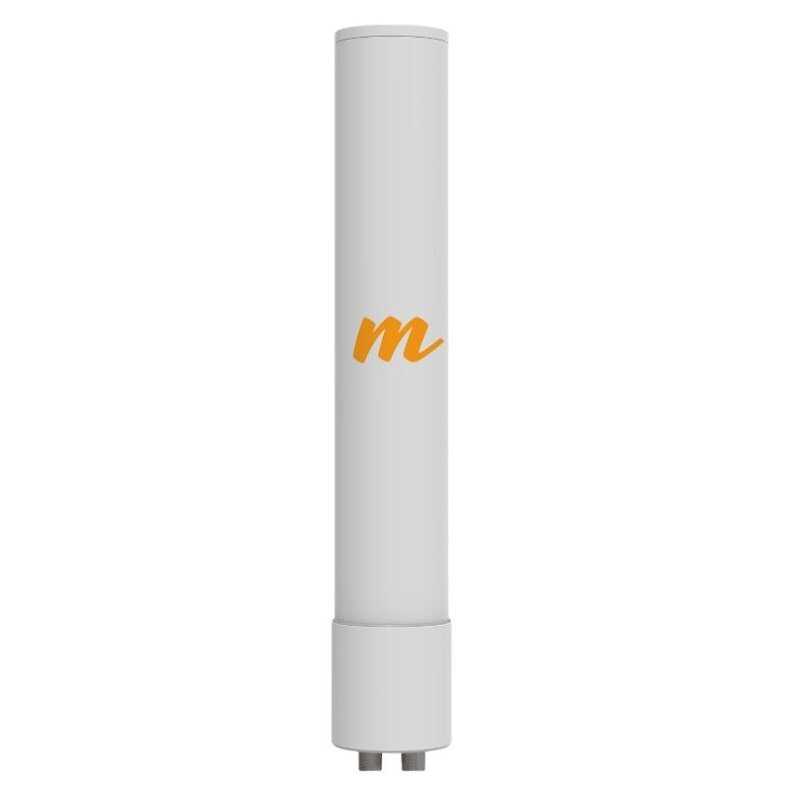

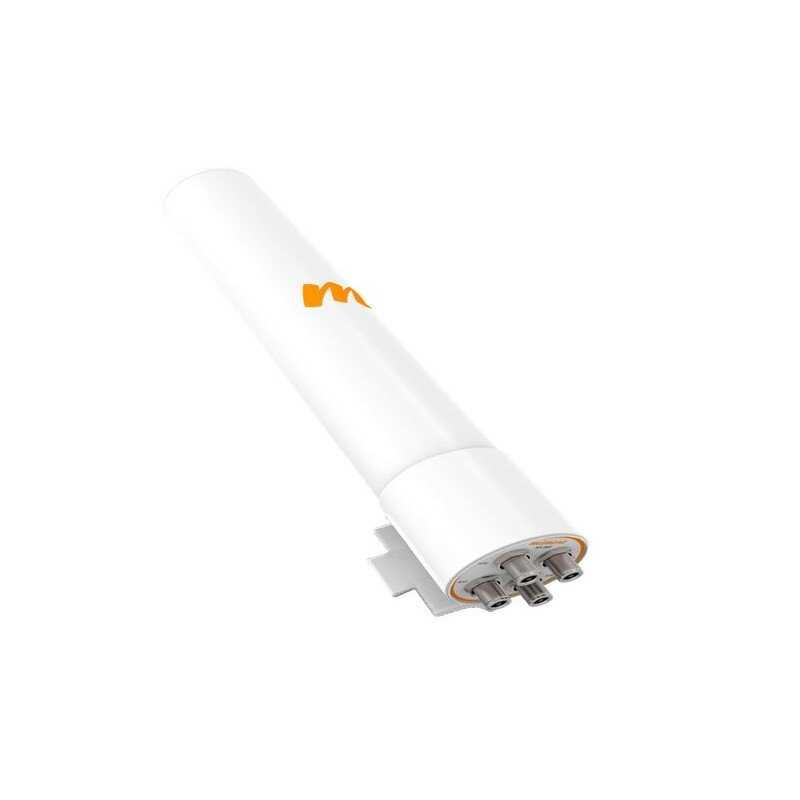

Mimosa N5-360 is the industry's first 4-port, 360° beamforming antenna, specifically designed for use with the Mimosa A5c access point. This antenna was developed to enhance coverage and performance for Mimosa's MicroPoP deployments.
Frequency Range: 4.9 – 6.4 GHz
Gain: 15 dBi
Polarizasyon: Dual Vertical + Horizontal (Dual H+V)
Azimuth Beam Width: 360° (with 4 overlapping sectors of 180° each)
Elevation Beamwidth (3 dB)8°
Downtilt2°
Cross Polarization Isolation:40 dB
Port-to-Port Isolation:25 dB
Empedans: 50 Ω
Maximum Input Power: 30 dBm
Boyutlar: Height: 492 mm (19.37"), Width: 80 mm (3.15")
Ağırlık: 1.11 kg (2.45 lbs)

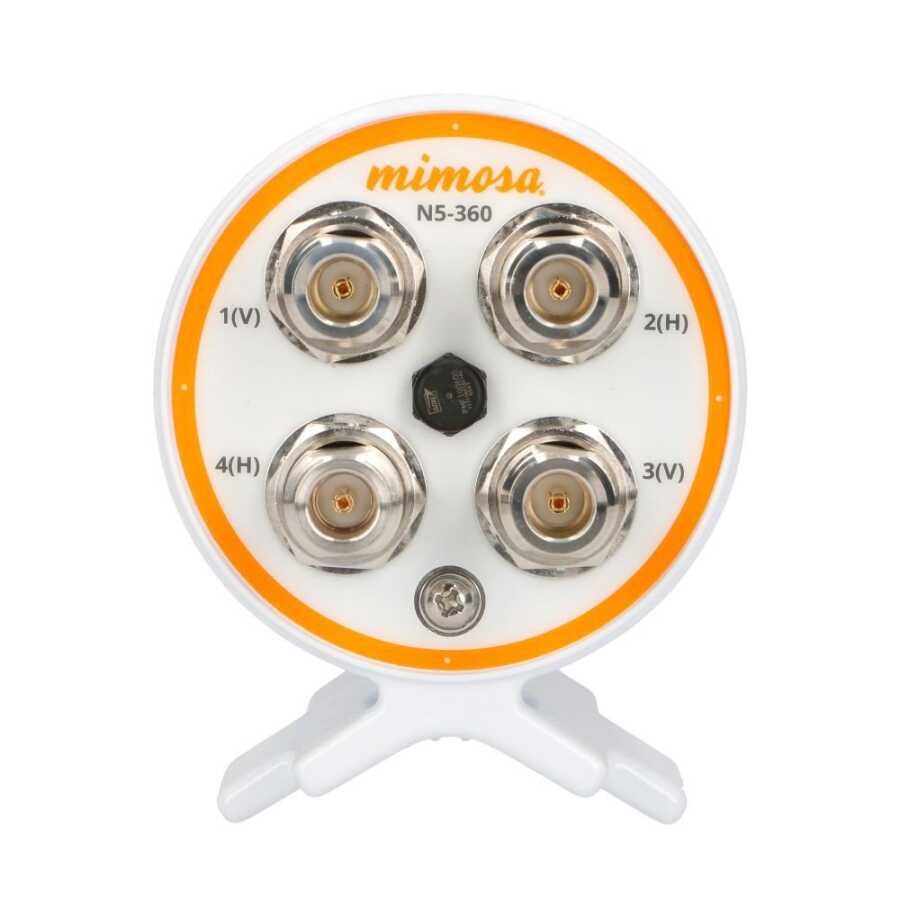

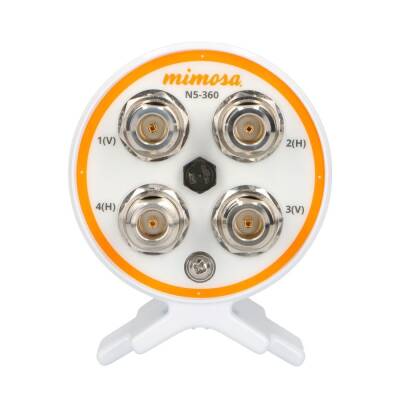

RF Connectors: 4 pieces of N-type female (at the bottom of the antenna)
Cash Register Material: UV resistant engineering polymer designed for outdoor use.
Montaj: Mounting with double pole strap; maximum pole diameter 5.7 cm (2.25”)
Wind Resistance: 200 km/h (125 mph)
Wind Load: 4.77 kg @ 160 km/h (10.49 lbs @ 100 mph)
Protection Class: IP67 (dust and water resistant)
Operating Temperature: -40°C to +55°C
Working Moisture: 5% to 100% (concentrated)
Working Height: Maximum 4,420 m (14,500’)
Shock and Vibration Resistance: ETS 300-019-2-4 class 4M5
Beamforming Technology: Range extender beamforming technology with four 180° overlapping antenna polarizations providing a 3 dB performance increase.
Wide Frequency Range: It operates in the 4.9 – 6.4 GHz range, supporting licensed public safety bands and other extended frequencies.
Optimized for MicroPoP Deployments: By doubling the coverage area, it can easily serve homes up to 500 m in dense, last-mile, suburban regions.
