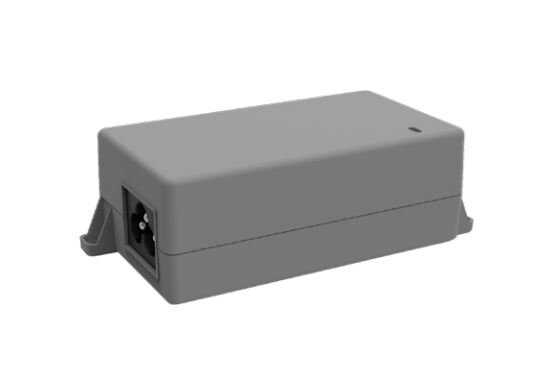

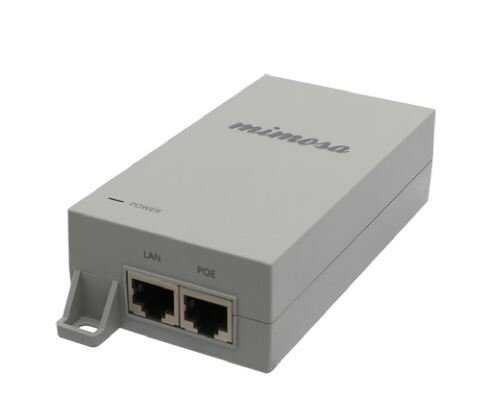

Mimosa Gigabit PoE Injector (50 V)

🔌 Mimosa Gigabit PoE Injector – 50V Technical Specifications

This PoE injector is designed to safely and efficiently power Mimosa devices. Typically,Mimosa C5x, C5c, B5x, A5xIt is used with products such as.

⚙️ General Features

• Model NameMimosa Gigabit PoE Injector (50V)

• Output Voltage:50 V DC(nominal output)

• Output Power:Maksimum 25–30 Watt

• Output Current:~0.6 A (maximum)

• Ethernet Support:10/100/1000 Mbps (Gigabit)
  It is not compatible with IEEE 802.3af/at (uses passive PoE).

• Connection Type2 x RJ45 (Data In / Data+Power Out)

• PoE Type:Passive PoE (non-standard)
  Therefore, it should only be used with Mimosa-compatible devices.

🔌 Electrical Properties

• Input Voltage:
  100–240 V AC, 50/60 Hz (AC adapter version)

• Protection Features:

  • Overvoltage protection

  • Short circuit protection

  • Grounding protection

🛠️ Physical Properties

• BoyutlarApproximately 100 mm x 45 mm x 30 mm

• Cable EntryUsually with the device,AC power cable veya wall type plugincome (by region)

• Operating Temperature0°C to +40°C

• Moisture Resistance:%10 – %90 (non-condensing)

✅ Compatible Mimosa Devices

• Mimosa C5x

• Mimosa C5c

• Mimosa B5x

• Mimosa A5x

• Mimosa A5c

• Mimosa B5c

• (All Mimosa devices generally using 50–56V passive PoE)

⚠️ Points to Consider

• Standard PoE devices (802.3af/at)should not be connected; incompatibility and device damage may occur.

• It is recommended to be used only with the devices specified by Mimosa.

• PoE output via PoE portdesteklemez, it only provides access.
