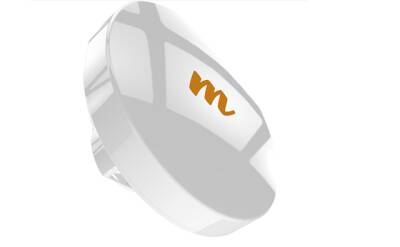

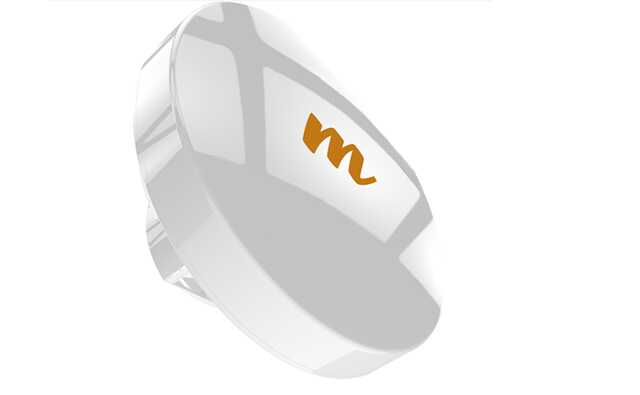

MIMOSA C5-G2

📡 Mimosa C5c Gen2 – Technical Specifications

📶 Wireless Connection

• Frequency Range:4.9 GHz – 6.4 GHz(licensed/unlicensed, may vary by country)

• Maximum Capacity:700+ Mbps(gerçek verim)

• Channel Width:20 / 40 / 80 MHz

• ModülasyonQPSK – 256-QAM (Adaptive)

• TeknolojiOFDM, TDMA, Auto-TDD

• MIMO:2x2 MIMO

• Polarizasyon:Dual-linear

📡 Antenna Connection

• Konnektörler:2x N-Type (External antenna connection)

• Antenna SupportCompatible with parabolic, horn, or sectoral antennas (supports 25 dBi – 30+ dBi)

🌐 Network Interface

• 1x Gigabit Ethernet (RJ45)

• PoE SupportPassive PoE 24V – 56V

  • Mimosa PoE adapter is recommended.

⚙️ Hardware / Software Specifications

• Operating SystemMimosa Network OS

• YönetimWeb interface (HTTPS)

  • SNMP

  • Mimosa Cloud support

  • CLI and local government

• Özellikler:

  • Time synchronization with GPS

  • DFS support

  • VLAN, QoS, routing / bridging modes

  • Automatic channel selection

  • High spectrum efficiency

⚡ Power & Environmental Features

• Power Consumption: 8 W (average)

• Operating Temperature: -40°C to +55°C

• IP Rating: IP67(full external environment resistance)

• Boyutlar230 x 86 x 45 mm

• Ağırlık: ~400 g

🎯 Areas of Use

• Point-to-Point (PtP) ve Point-to-Multipoint (PtMP) bağlantılar

• WISP deployment, wireless backbone connection between villages/cities

• Long-range CPE or backhaul solution

✅ Avantajlar

• External antenna support for flexibility

• Capacity up to 700+ Mbps

• Unlicensed spectrum wide frequency

• Durable, IP67 housing
