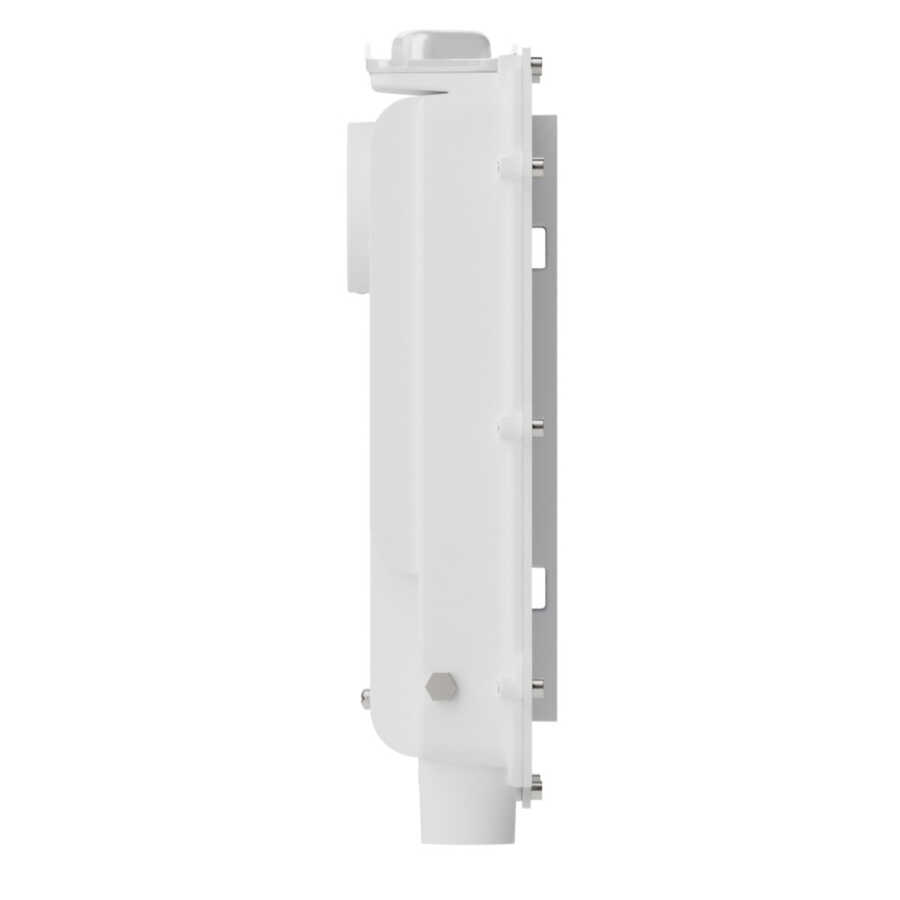

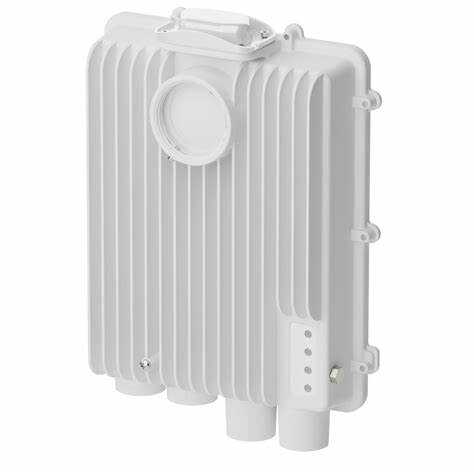

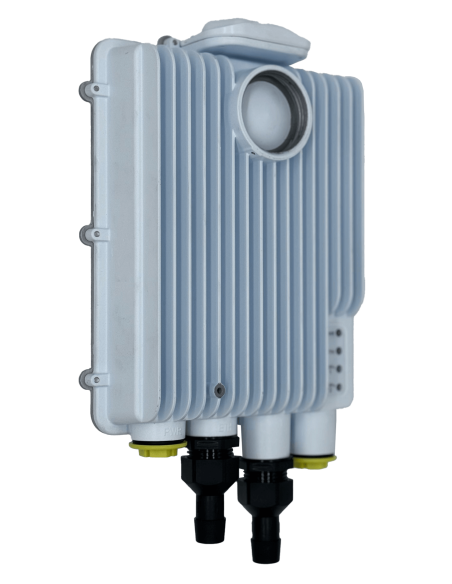

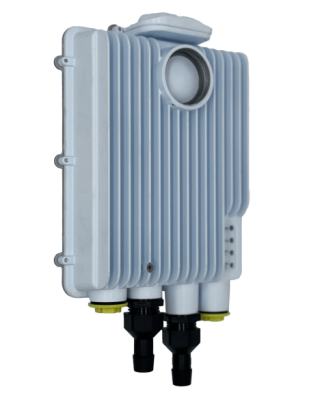

Mimosa B6x is a high-speed, modular backhaul solution designed for short and medium-range point-to-point (PtP) wireless connections. Thanks to Wi-Fi 6E technology and wide frequency support, it offers high performance and flexibility, especially in dense spectrum environments.
Maximum Data Rate: 3.0 Gbps over IP (3.4 Gbps PHY)
Frequency Range: 5.15 – 6.425 GHz (may vary by country)
Modülasyon: 4x4 MU-MIMO, OFDMA, 1024-QAM
Channel Width: Single or dual 160 MHz channel, totaling 320 MHz
Output Power: 27 dBm
Gecikme: <1 ms (in automatic mode)
Boyutlar: 290 mm (H) x 167 mm (W) x 89 mm (D)
Ağırlık: 1.7 kg
Connector Type: N5-X twist-on (modular antenna connection)
Cash Register Material: Cast aluminum
Protection Class: IP67 (dust and water resistant)
Operating Temperature: -40°C to +55°C
Power Consumption: Maximum 30 W
Power Supply: 48–56 V passive PoE or via a separate DC port.
The B6x, with an integrated 8 dBi gain, is compatible with Mimosa's N5-X series modular antennas (12, 16, 20, 25, or 30 dBi). In this way, the antenna gain can be increased according to the application requirements. For example, if you are looking for a high-gain antenna, you can choose the Mimosa N5-X25 (25 dBi) antenna.
GPS Synchronization: It allows multiple devices to operate in the same area without causing interference.
Yönetim: Connection health and performance can be monitored via the Mimosa Management Platform.
Easy Installation: Connection planning and verification can be performed with Mimosa Design Tool.
Mimosa B6x is an ideal option for those seeking a high-speed, reliable, and flexible wireless backhaul solution. Thanks to its modular structure and wide frequency support, it adapts to various application scenarios.
