MIMOSA B5x

📡 Mimosa B5x – Technical Specifications

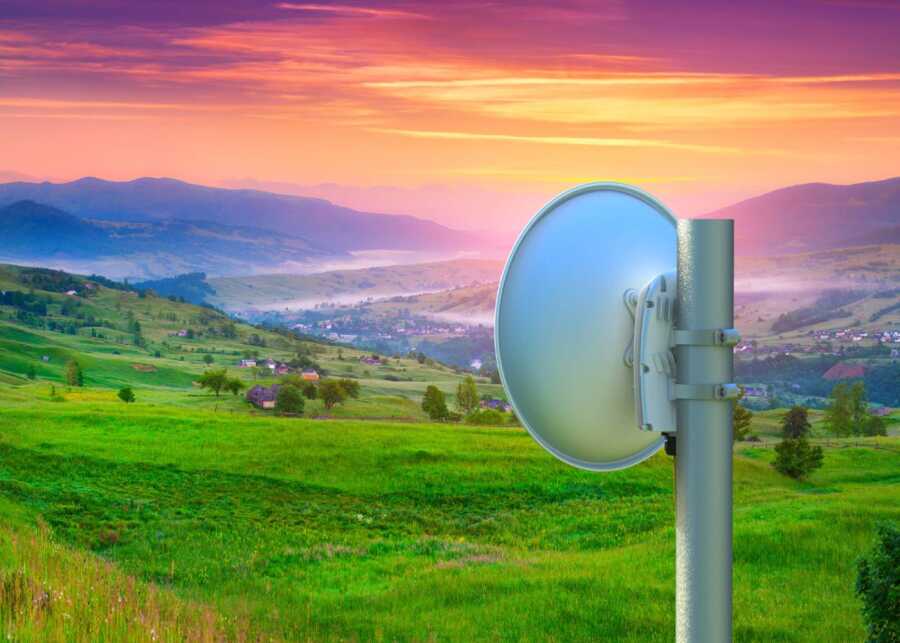

Mimosa B5x, operating in the unlicensed 5 GHz band, modular and high-speedPoint-to-Point (PTP)It is a backhaul solution. Designed for long-distance and high-bandwidth connections with its small form factor, extensive antenna support, and high capacity.

📶 Radio Features

• Frequency Range4.9 – 6.4 GHz

• Channel Width:20 / 40 / 80 MHz (DFS supported)

• Maximum Data Rate1.5+ Gbps (aggregate PHY)~1 Gbps IP throughput

• MIMO / Modulation:2x2:2 MIMO up to 256 QAM

• Radio TechnologyTDMA, OFDM

• Senktronizasyon:GPS Sync supported (SRS – Spectrum Reuse Synchronization)

🔌 Hardware Specifications

• Ethernet Port1 x Gigabit Ethernet (RJ-45)

• Power Input:24–56V DC (Passive PoE)
  Maximum power consumption: 12.9 W
  Average: 9.2 W

• PoE Adapter CompatibilityMimosa PoE 56V or other 802.3at compliant PoE injectors

📏 Physical Properties

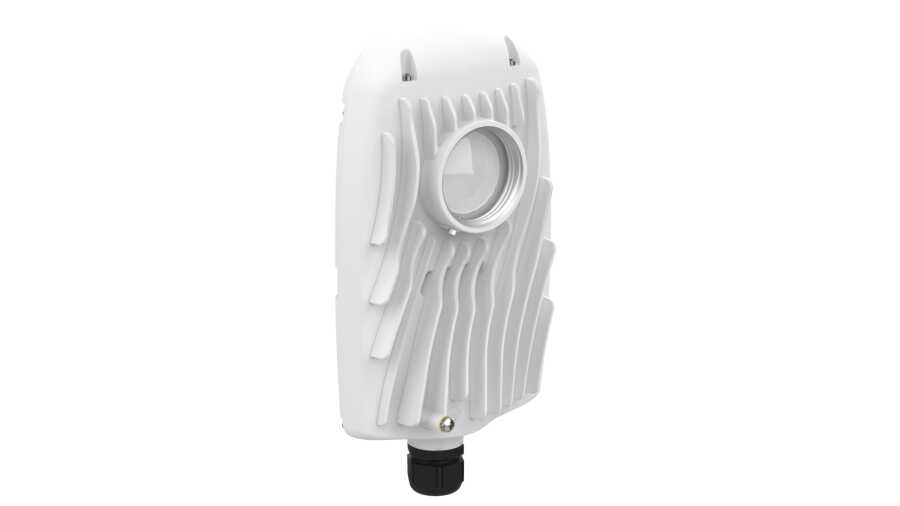

• Dimensions (Radio Unit)175 mm x 70 mm x 61 mm

• Ağırlık:370 g (excluding antenna)

• Antenna MountingTwist-on N5-X antenna system

• Protection Class:IP67 (water and dust resistant)

• Operating Temperature-40°C to +55°C

• Wind Resistance:200 km/h (125 mph)

📡 Compatible Antennas (N5-X Series)

• N5-X8– 8 dBi

• N5-X12- 12 dBi

• N5-X16- 16 dBi

• N5-X20– 20 dBi

• N5-X25– 25 dBi

Quick and easy antenna change is possible thanks to the twist-on mechanism.

🎯 Areas of Use

• Rural broadband backhaul

• Video surveillance links

• Bridging between remote campus/campuses

• ISP backhaul connections

• LTE/5G backhaul infrastructures
