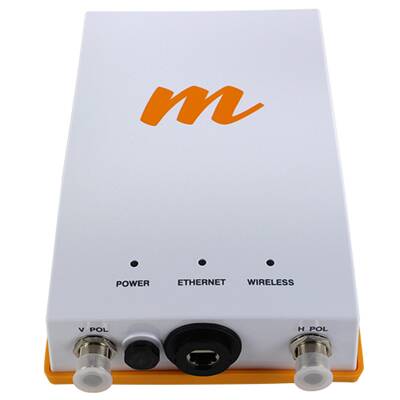

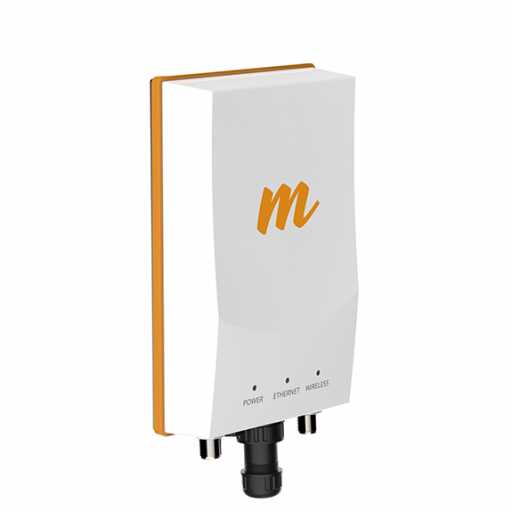

MIMOSA B5C

Product Code : ST00145
19,998.50 TL + VAT
Price Alert
19,998.50 TL + VAT

📡 Mimosa B5c – Technical Specifications

Mimosa B5c is a high-capacity, unlicensed frequency band operating device that offers flexible antenna options.Point-to-Point (PTP)It is a wireless backhaul device. It is particularly ideal for long-distance connections and high bandwidth requirements.


🔧 General Features

  • Frequency Range:
    4900 – 6000 MHz (Unlicensed 5 GHz band)

  • Channel Widths:
    20 / 40 / 80 MHz supported (DFS supported)

  • Maximum Data Rate:
    1.5+ Gbps (aggregate PHY capacity)

  • MIMO / Modulation:
    4x4:4 MIMO OFDM
    Support up to 256 QAM.

  • Senktronizasyon:
    Time synchronization with GPS (TDMA)

  • Operating Modes:
    TDD (Time Division Duplex)


🔌 Hardware and Power

  • Ethernet Port:
    2 x Gigabit Ethernet

  • PoE Power Input:
    48–56V DC, Passive PoE
    Maximum power consumption: 20W


📏 Physical and Environmental Characteristics

  • Antenna Support:
    External N-type connector antenna (2x2 or 4x4 panel or parabolic)

  • Protection Class:
    IP67 – Dust and water resistant outdoor device.

  • Operating Temperature:
    -40°C to +55°C

  • Boyutlar:
    270 mm x 160 mm x 80 mm (wireless unit)

  • Ağırlık:
    Approximately 1.5 kg


🎯 Usage Scenarios

  • Long distance PTP connections

  • Backhaul for Internet Service Providers (WISP)

  • Corporate networks and security systems

  • Network expansion applications
