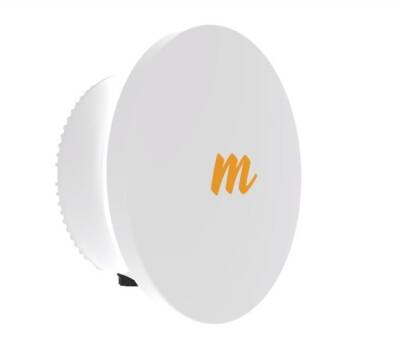

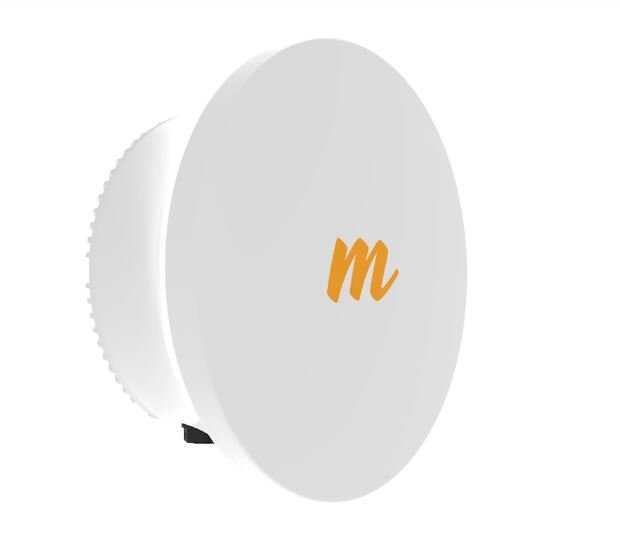

MIMOSA B24

📡 Mimosa B24 – Technical Information

🔧 Wireless Features

• Frequency Band: 24.05 – 24.25 GHz(unlicensed, 24 GHz band)

• Maximum Capacity: 1.5 Gbpstotal (750 Mbps uplink + 750 Mbps downlink – symmetric)

• Channel Width100 MHz

• Modülasyon64-QAM, 16-QAM, QPSK, BPSK (adaptive)

• TeknolojiTDD (Time Division Duplex)

• Maximum Range: ~3 km (depending on weather conditions)

📶 Anten

• Antenna TypeIntegratedparabolic antenna

• Antenna Gain: 33 dBi

• Beam Width3.5° (for narrow focus connection)

• PolarizasyonDual-polarization (MIMO)

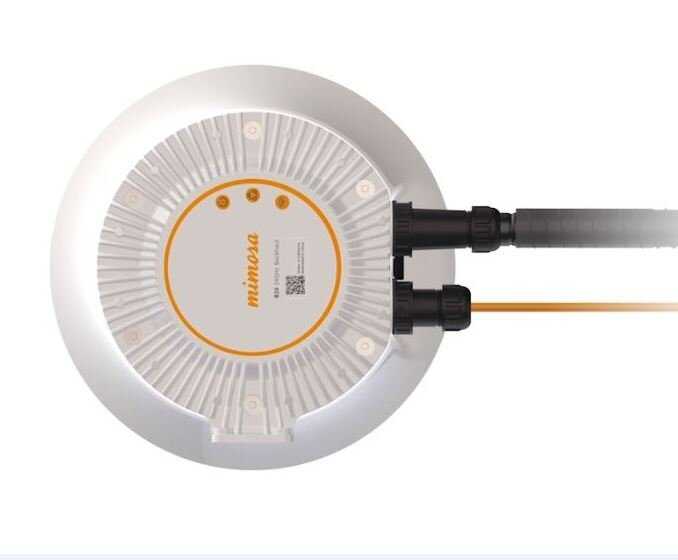

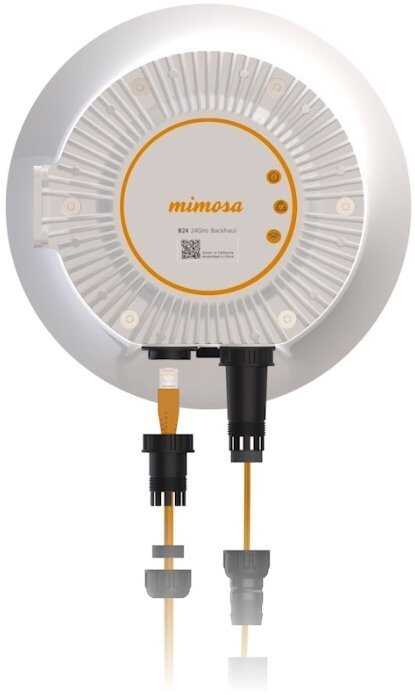

🌐 Ports

• 1x 1 Gbps Ethernet (RJ45)- PoE supported

• 1x 10 Gbps SFP+- for fiber connection

• 1x GPS port– for time synchronization (GNSS)

⚙️ Management and Software

• Web interface

• SNMP

• Integration with Mimosa Cloud

• Powerful spectrum analysis tools

• Live monitoring features such as link quality, traffic, signal level

⚡ Power and Physical Characteristics

• Power Input48V PoE (Recommended with Mimosa PoE adapter)

• Power ConsumptionMax. 19.5 W

• IP Protection: IP67– Fully resistant to harsh external environmental conditions

• Operating Temperature: -40°C to +55°C

• Boyutlar305 x 305 x 92 mm

• Ağırlık2.7 kg (assembly apparatus not included)
