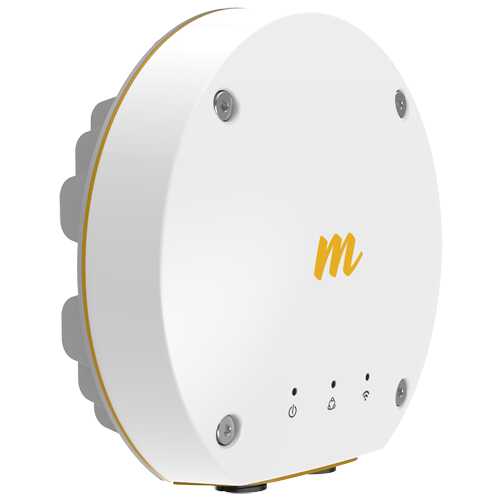

MIMOSA B11

📡 Mimosa B11 – Technical Specifications

📶 Wireless Features

• Frequency Range10.7 – 11.7 GHz (11 GHz licensed band – may vary by country)

• Channel Width20 / 40 / 80 MHz

• Maximum Capacity: 1.5+ Gbpsfull duplex

• ModülasyonQPSK – 1024-QAM (dynamically adjusted)

• Transmission DistanceUp to 20+ km (depending on the antenna)

• ZamanlamaTDD/FDD (Supports Symmetric Full Duplex)

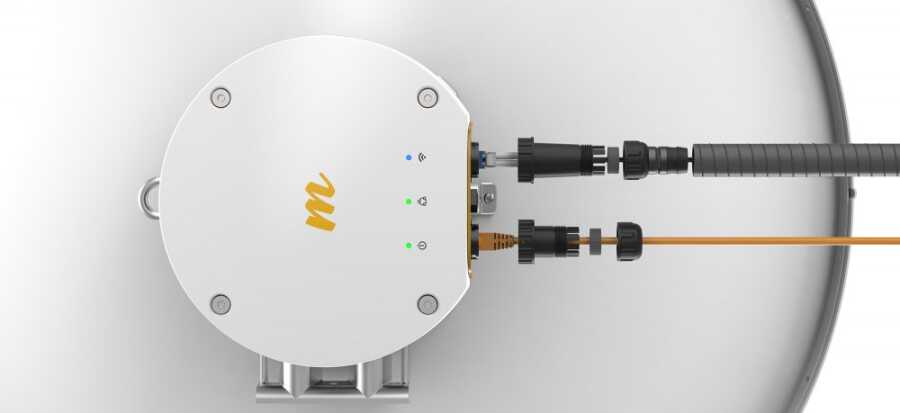

• Antenna SupportExternal 2-way N-Type RF output (connects to dual-polarization parabolic antenna)

🌐 Ethernet and Connections

• 1x 1 Gbps Ethernet (RJ45)– With PoE support

• 1x 10 Gbps SFP+ port- for fiber connection

• 1x GPS connection point– for time synchronization

• PoE Input: 48–56V DC (Not compatible with Gigabit 802.3at, Mimosa PoE adapter recommended)

⚙️ General Hardware

• İşlemci: 4-core ARM processor

• RAM: 2 GB

• Depolama8 GB internal Flash

• Yönetim:

  • Web interface

  • SNMP

  • HTTPS

  • Integration with CLI and Mimosa Cloud

  • GPS synchronized time control

⚡ Power and Environmental

• Power ConsumptionMax. 20W

• Operating Temperature: -40°C to +55°C

• Moisture Resistance: 100% non-condensing

• IP ProtectionIP67 – fully resistant for outdoor use.

• Boyutlar232 mm × 340 mm × 80 mm

• Ağırlık2.4 kg (excluding antenna)
