MIMOSA A6

📡 Mimosa A6 – Technical Specifications

Mimosa A6Mimosa's newest generationWi-Fi 6E(802.11ax) technology equippedPoint-to-Multipoint (PTMP)It is an access point. It is designed for service providers who want high-density deployment scenarios and gigabit-level access.

📶 Radio Features

• StandartlarIEEE 802.11ax (Wi-Fi 6E), TDMA-based Mimosa SRS protocol

• Frequency Range5.150 – 6.425 GHz (including DFS)

• Channel Widths:20 / 40 / 80 / 160 MHz

• Maximum Data Rate:7 Gbps PHY speed
  ~1.5 Gbps+ IP throughput (in multi-client scenarios)

• MIMO / Modulation:8x8:8 MIMO
  OFDMA + MU-MIMO support
  1024-QAM modulation

• SenktronizasyonGPS timing supported (SRS – Spectrum Reuse Sync)

📡 Antenna Features

• Antenna TypeIntegrated 8x8 MIMO panel antenna

• Coverage Angle:65° sector coverage

• Antenna GainApproximately 24 dBi

🔌 Hardware Specifications

• Ethernet Port:

• 1 x 2.5 Gbps Ethernet (RJ45)

• 1 x 1 Gbps Ethernet (RJ45)

• Power Input:48 – 56 VDC Passive PoE (802.3at compliant)
  Maximum power consumption: ~35 W

• PoE Output:Desteklenmez

• YönetimMimosa Cloud, web interface, SNMP

🛠️ Physical and Environmental Characteristics

• Protection ClassIP67 – outdoor resistant

• BoyutlarApproximately 490 mm x 230 mm x 105 mm

• Ağırlık4.5 kg (approximately)

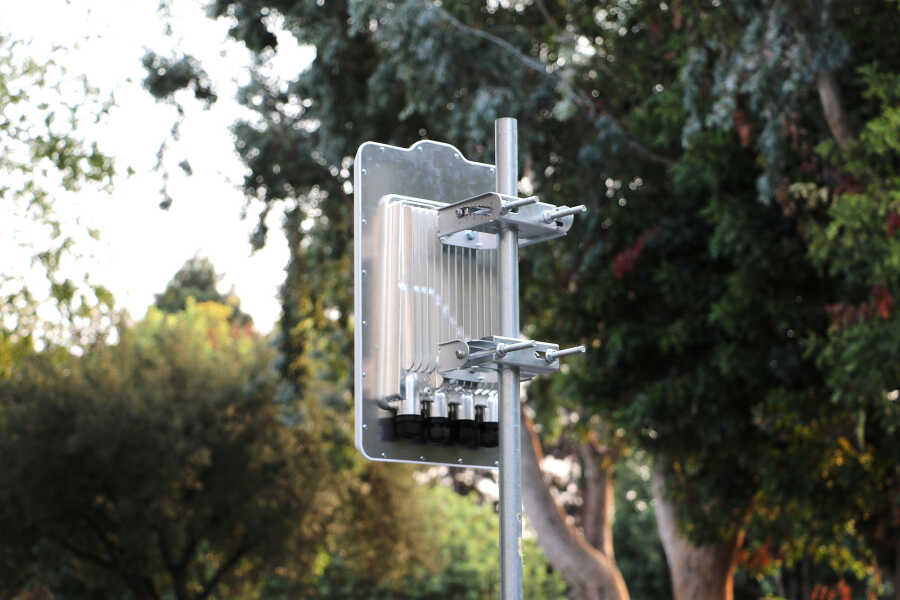

• MontajIncludes direct and wall mounting apparatus.

• Operating Temperature-40°C to +55°C

🎯 Areas of Use

• Gigabit broadband PTMP installations

• Areas with high user density

• 4K video, CCTV, and IoT networks

• Service provider access infrastructure (WISP, municipalities, etc.)
