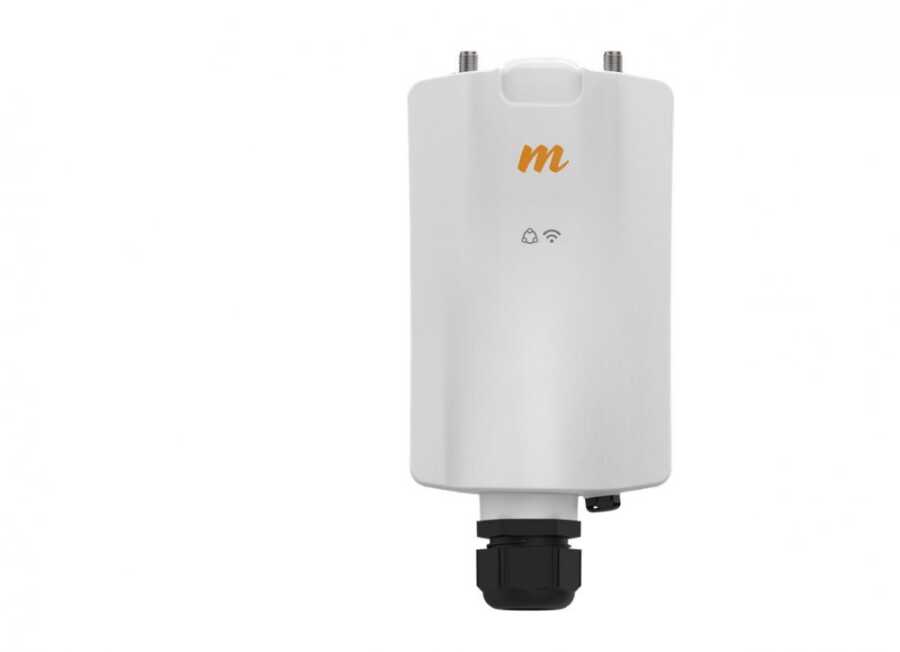

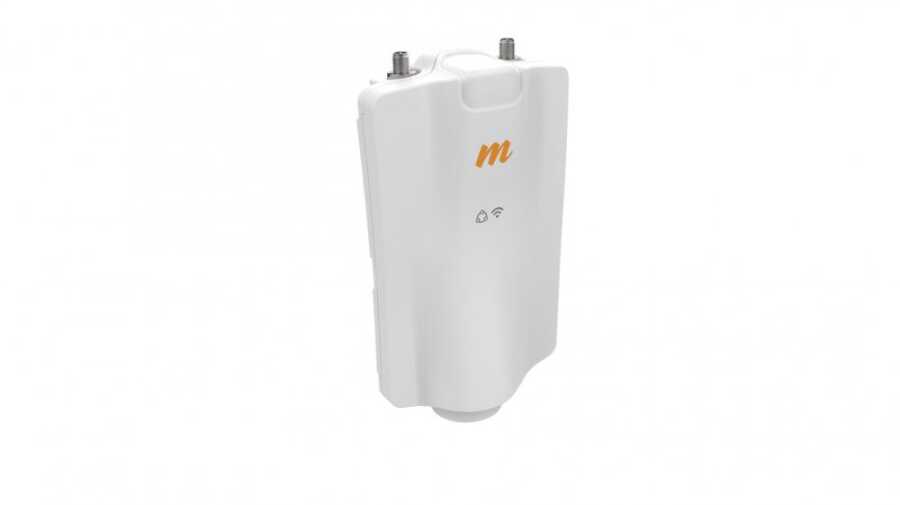

MIMOSA A5x

📡 Mimosa A5x – Technical Specifications

Mimosa A5x, affordable but high-performancePoint-to-Multipoint (PTMP)It is an access point solution. With a small form factor and flexible antenna option,kırsal, semi-urban ve high density areasis suitable for

📶 Radio Features

• Frequency Range4.9 GHz – 6.4 GHz

• Channel Width:20 / 40 / 80 MHz (DFS supported)

• Total Data Rate (Aggregate):700+ Mbps IP throughput (with 4:1 download/upload ratio)

• Radio Technology:TDMA-based Mimosa SRS Protocol (synchronized)
  or WiFi Interop (for standard 802.11ac clients)

• Modulation / MIMO:2x2 MIMO
  Support up to 256 QAM

📡 Antenna Features

• Antenna TypeExternal antenna connection (2 x N-Type female connectors)

• Compatible Antennas:

  • Mimosa N5-45x2

  • 3. party 2x2 MIMO sector antennas

  • Circular or directional antenna options

🔌 Hardware Specifications

• Ethernet Port1 x Gigabit Ethernet (RJ-45)

• Power Input:24–56 V DC Passive PoE
  Maximum power consumption: ~10.5 W

• PoE CompatibilityMimosa PoE 56V adapter or 802.3af/at compliant injectors

🛠️ Physical and Environmental Characteristics

• Protection Class:IP67 (water and dust resistant outdoor class)

• BoyutlarApproximately 170 mm x 70 mm x 60 mm

• Ağırlık:265 g (excluding antenna)

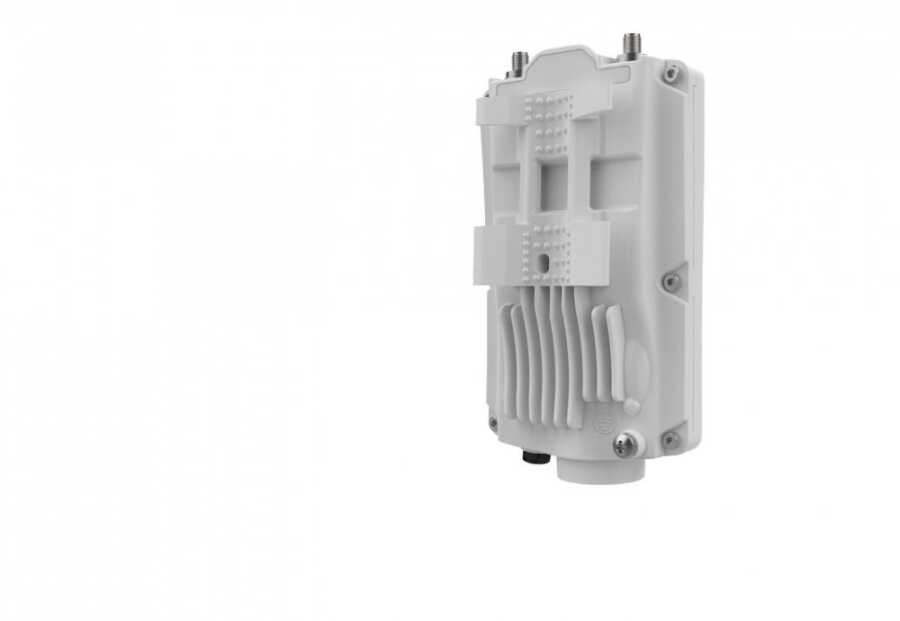

• MontajIncluding the pole mounting bracket

• Operating Temperature-40°C to +55°C

🎯 Usage Scenarios

• WISP access point setup

• Cost-effective PTMP distribution

• Rural broadband networks

• Wireless access infrastructure for camera and IoT systems.

https://mimosa.co/sites/default/files/2020-08/A5x_Datasheet.pdf
