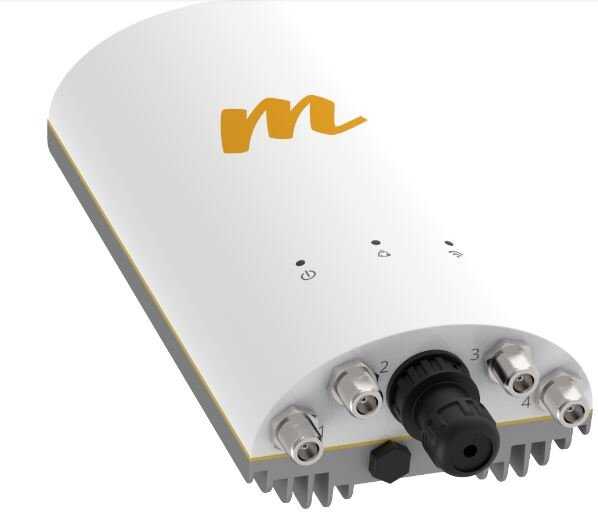

Mimosa A5c, high capacity, outdoor operating,Point-to-Multipoint (PTMP)It is a wireless access solution. It is designed to be used with sectoral antennas,connectorizedIt is a base station device (with external antenna connection).
Frequency Range4.9 – 6.4 GHz (including DFS)
Channel Width:20 / 40 / 80 MHz
Maximum Data Rate1+ Gbps IP throughput
Radio PHY capacity: up to 1.7 Gbps
MIMO / Modulation:4x4:4 MIMO
Support for 256 QAM modulation
Radio Technology:TDMA-based Mimosa SRS protocol
(GPS synchronized timing)
Ethernet Ports:2 x Gigabit Ethernet
(1 x PoE input, 1 x passthrough output)
Power Input:48–56 VDC Passive PoE
Max. power consumption: 20 W
PoE PassthroughPower transmission to other devices can be done through the second Ethernet port.
SenktronizasyonGPS synchronization (integrated GPS antenna)
Antenna TypeExternal antenna connection (4x N-type connectors)
Antenna CompatibilityN5-45x4, compatible with 3rd party 4x4 MIMO panel or sector antennas.
Protection ClassIP67 – Resistant to water, dust, and external environmental conditions.
BoyutlarApproximately 179 mm x 179 mm x 57 mm
AğırlıkApproximately 1.4 kg

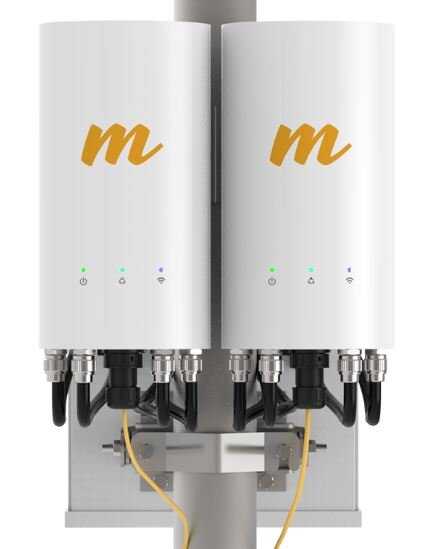

Assembly OptionsIncluding the pole mounting bracket
Operating Temperature-40°C to +55°C
WISP access points
Wide area PTMP installations
Rural and semi-urban broadband applications
Corporate WiFi backbone
Smart city networks and camera systems
