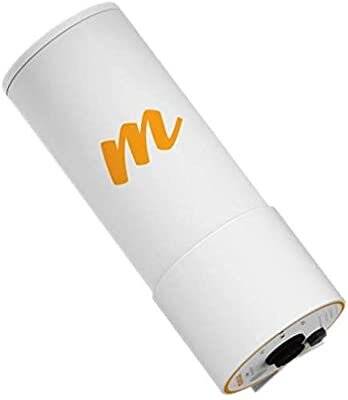

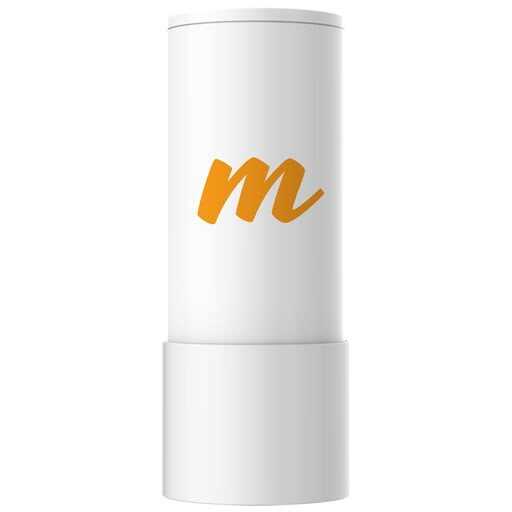

MIMOSA A5-360 14DBI

📡 Mimosa A5-360 14 dBi – Technical Specifications

Mimosa A5-360, high capacityPoint-to-Multipoint (PTMP)It is a base station device designed for applications, featuring an integrated 360° sector antenna. It offers wide coverage thanks to its 14 dBi antenna.

📶 Radio Features

• Frequency Range4.9 GHz – 6.4 GHz

• Channel Width:20 / 40 / 80 MHz (DFS supported)

• Maximum Total Data Rate:1 Gbps+ IP Throughput
  Actual speed varies depending on the number of connected clients.

• MIMO / Modulation:4x4:4 MIMO
  256 QAM modulation

• Radio Technology:TDMA-based Mimosa SRS protocol
  It supports GPS synchronization.

📡 Antenna Features

• Coverage Angle:360° integrated antenna

• Antenna Gain:14 dBi

• PolarizasyonDual slant (±45°)

• Beam Width (For Each Sector)Fully circular (Omni-directional)

🔌 Hardware Specifications

• Ethernet Ports2 x Gigabit Ethernet (1 PoE input, 1 output)

• Power InputPassive PoE (48–56 V DC)
  Maximum Power Consumption: 20 W

• PoE Output (Passthrough)It can transmit power to other devices.

🛠️ Physical Properties

• Protection ClassIP67 – Water and dust resistant

• BoyutlarApproximately 266 mm (H) x 194 mm (D)

• AğırlıkApproximately 1.7 kg

• MontajIt comes with the direct mounting kit.

• Operating Temperature-40°C to +55°C

🎯 Areas of Use

• WISP backbone stations

• Wide area wireless internet distribution

• Broadband solution in rural areas

• Smart city infrastructure

• IoT networks
