XS+85LC01D

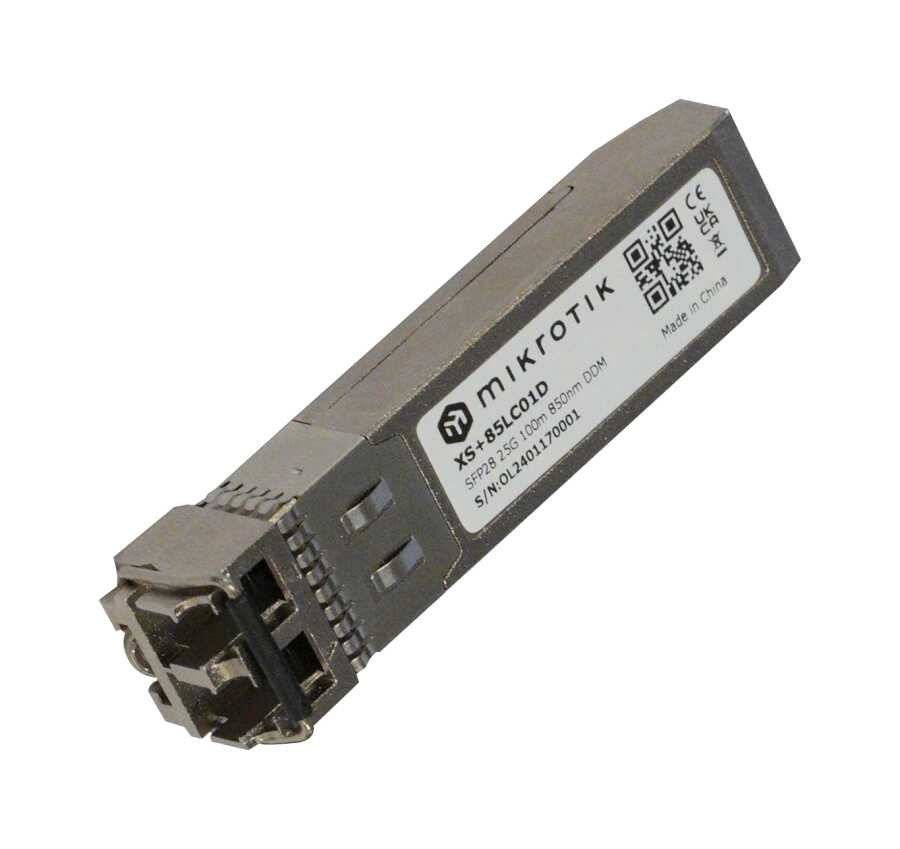

MikroTik XS+85LC01D, is a multimode SFP28 optical transceiver module designed for short-range high-speed fiber connections. It supports 1.25G, 10G, and 25G data rates, offering flexible usage across different network infrastructures.

🔧 Technical Specifications

• Product Code: XS+85LC01D

• Supported Data Rates: 1.25G / 10G / 25G

• Module Type: SFP / SFP+ / SFP28

• Connector Type: Dual LC UPC

• Fiber Type: Multimodal (MM)

• Wavelength: 850 nm

• Maximum Connection Distance: 100 meters (in 25G mode)

• Power Consumption:1 W

• Operating Temperature: -40°C to +85°C

• DDM (Digital Diagnosis Monitoring): Available (optical power, temperature, voltage, and laser current monitoring)

✅ Compatible Devices

The XS+85LC01D module is compatible with the following MikroTik devices:

• RB5009

• CCR2116

• netPower series

• CRS and CSS keys

Additionally, it can also be used with other brand devices that support the SFP28 standard.

💡 Usage Areas

This module is ideal for short-distance high-speed fiber connections such as data centers, enterprise networks, and campus connections. In particular, it provides data transmission at 25G speed for connections up to 100 meters.

📦 Box Contents

• 1 unit MikroTik XS+85LC01D SFP28 module
