MikroTik wsAP ac lite(RBwsAP-5Hac2nD) is a dual-band wireless access point in wall outlet form, designed for use in accommodations and public areas such as hotels, shopping malls, hospitals, and airports. Thanks to its aesthetic and compact design, it blends into the environment without drawing attention by being mounted on standard wall sockets.
Frequency Bands: 2.4 GHz and 5 GHz (simultaneous operation)
Wireless Standards:
2.4 GHz: 802.11b/g/n (Wi-Fi 4)
5 GHz: 802.11a/n/ac (Wi-Fi 5)
Maximum Data Rates:
2.4 GHz: 300 Mbps
5 GHz: 433 Mbps
MIMO:
2.4 GHz: 2x2
5 GHz: 1x1
Antenna Gains:
2.4 GHz: 1.5 dBi
5 GHz: 3 dBi
İşlemci: Qualcomm QCA9531, 650 MHz, single-core
RAM: 64 MB
Depolama: 16 MB Flash
Ethernet Ports: 3 x 10/100 Mbps

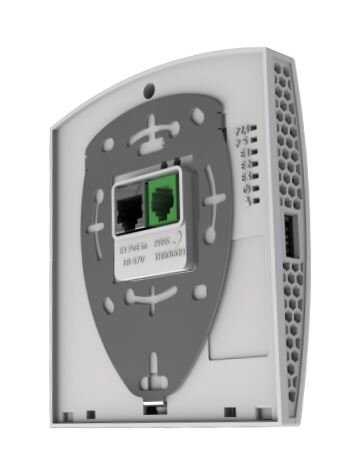

At the back, there is 1 PoE input port.

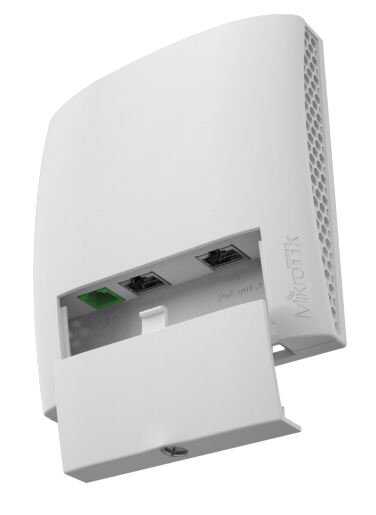

Under the front cover, there are 2 LAN ports.
USB Port: 1 x USB 2.0 (0.5A)
Phone Connection: RJ11 pass-through telephone jack
Boyutlar: 112 x 126 x 30 mm
Soğutma: Pasif
Operating Temperature: -40°C to +60°C
MTBF: Approximately 100,000 hours @25°C
Power Input: 18–57V over PoE (802.3af/at)
Maximum Power Consumption:
Device only: 6 W
With additional devices: 20 W
PoE Output: Passive PoE via Ether3 port (max. 420 mA)
Operating System: MikroTik RouterOS (License Level 4)
Management Features: Central AP management with CAPsMAN support, bandwidth control, firewall, user access control, and other RouterOS features
Default IP: 192.168.88.1 (Username: admin, password: none)
RBwsAP-5Hac2nD device

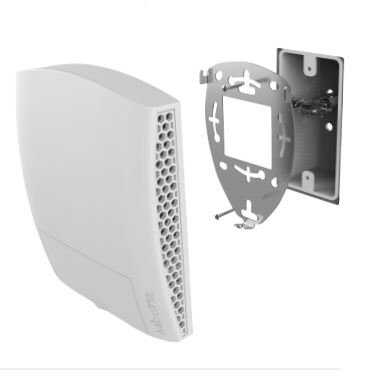

Mounting plate (compatible with EU and US type wall sockets)
Cable organizer and screw set
Note: The power adapter and PoE injector are not included in the box.
wsAP ac lite is ideal for use in accommodation and public areas such as hotels, shopping malls, hospitals, and airports, thanks to its aesthetic and compact design. You can manage multiple access points from a single central location with CAPsMAN.
