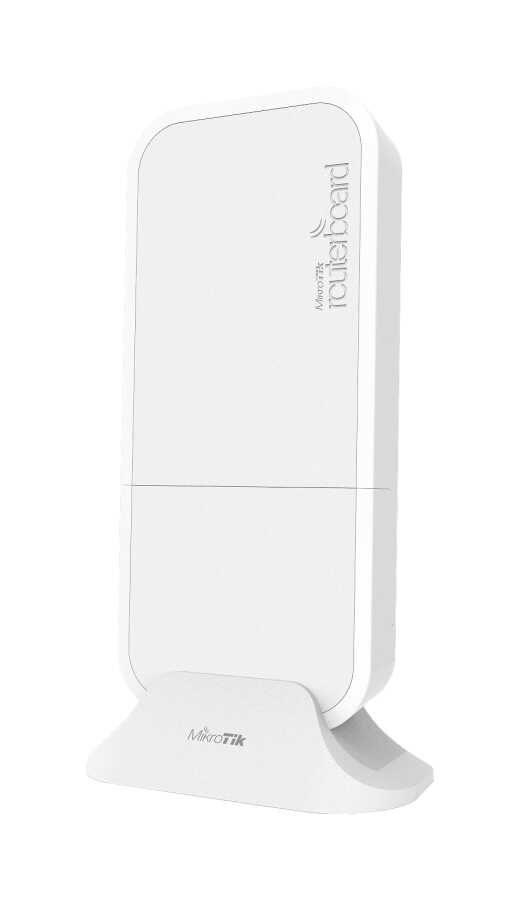

MikroTik wAPR-2nD&EC200A-EU(wAP LTE kit 2024) is a compact and durable LTE-supported wireless access point designed for outdoor use. This device offers wireless connectivity on the 2.4 GHz band with Wi-Fi 4 (802.11b/g/n) support and provides internet access over mobile networks through its integrated LTE modem. Additionally, it offers flexible installation options with various power choices and mounting accessories.
Product Code: wAPR-2nD&EC200A-EU
İşlemci: QCA9531, 650 MHz, 1 core (MIPSBE architecture)
RAM: 64 MB DDR2
Depolama: 16 MB Flash
Operating System: RouterOS v7 (License Level 4)
Boyutlar: 185 x 85 x 30 mm
Operating Temperature: Between -40°C and +60°C
MTBF: Approximately 100,000 hours (at 25°C)
Frequency Band: 2.4 GHz
Wireless Standards: 802.11b/g/n (Wi-Fi 4)
Maximum Data Rate: 300 Mbps
MIMO Support: 2x2 MIMO
Antenna Gain: 2 dBi
Wireless Chipset: QCA9531
Modem: EC200A-EU (MiniPCI-e)
SIM Card Slot: 1 x Mini SIM
LTE Category: Category 4 (150 Mbps download / 50 Mbps upload)
LTE FDD Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
LTE TDD Bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)
3G Bands: 1 (2100 MHz), 5 (850 MHz), 8 (900 MHz)
2G Bands: 3 (1800 MHz), 8 (900 MHz)
LTE Antenna Gain: 4 dBi

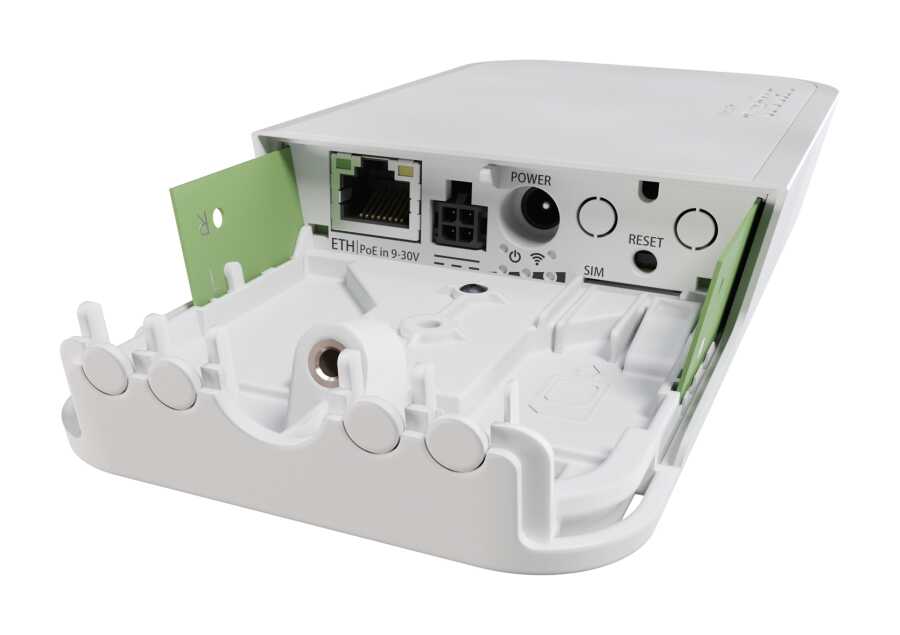

Ethernet Port: 1 x 10/100 Mbps RJ45
MiniPCI-e Slot: 1 unit (for LTE modem)
Power Input Options:
DC Jack: 9–30 V
PoE-In: 9–30 V (Passive PoE)
Automotive Input: 9–30 V
Maximum Power Consumption:7 W
Soğutma: Pasif
IP Protection Class: IP54 (protected against dust and water splashes)
Sertifikalar: CE, E-MARK, EAC, ROHS
Hardware Monitoring: PCB temperature and voltage monitor
Assembly Options: Suitable for wall, ceiling, or desktop mounting.
wAPR-2nD&EC200A-EU device
24V 0.8A power adapter
PoE injector
K-52 assembly kit
K-50 locking set
wAP desktop stand
wAP mounting fixture
0.35m 4-pin automotive adapter cable
wAP ceiling mounting bracket
