wAPG-5HaxD2HaxD

MikroTik wAPG-5HaxD2HaxD, It is a dual-band, high-performance wireless access point designed for outdoor use with Wi-Fi 6 (802.11ax) support. With its compact design and robust structure, it provides reliable connectivity even in harsh weather conditions.

📡 Wireless Features

• Frequency Bands: 2.4 GHz and 5 GHz

• Wi-Fi Standards:

  • 2.4 GHz: 802.11b/g/n/ax

  • 5 GHz: 802.11a/n/ac/ax

• Maximum Data Rates:

  • 2.4 GHz: 574 Mbps

  • 5 GHz: 2400 Mbps

• Total Wireless Speed: AX3000

• Antenna Gain:

  • 2.4 GHz: 6.9 dBi

  • 5 GHz: 7 dBi

• MIMO: 2x2 (for each band)

• Wireless Chipsets:

  • 2.4 GHz: IPQ-5010

  • 5 GHz: QCN-6102

⚙️ Hardware Specifications

• İşlemci: Dual-core IPQ-5010, 800 MHz (ARM 64-bit)

• RAM: 256 MB DDR3L

• Depolama: 128 MB NAND

• Ethernet Ports: 2 units of 10/100/1000 Mbps Gigabit Ethernet

• Operating System: RouterOS v7 (License Level 4)

🔌 Power and Physical Features

• Power Input: 2 pieces (DC jack and PoE-IN)

• DC Jack Input Voltage: 12–57 V

• PoE-IN: 802.3af/at, 18–57 V

• Maximum Power Consumption9 W

• Soğutma: Pasif

• Operating Temperature: Between -40°C and +70°C

• Protection Class: IP54 (resistant to dust and water splashes)

📦 Box Contents

• wAPG-5HaxD2HaxD device

• 24V 0.8A power adapter

• Gigabit PoE injector

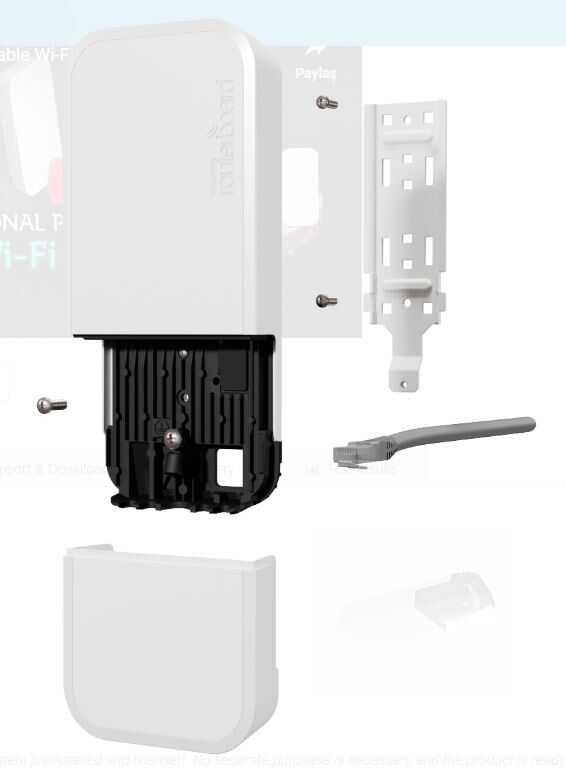

• Mounting apparatus (for wall and ceiling mounting)

• Hose clamp

✅ Featured Features

• With Wi-Fi 6 support, higher speed and lower latency.

• Dual-band structure provides wider coverage area.

• Robust and compact design suitable for outdoor use.

• Flexible connection options with dual Gigabit Ethernet ports

• Easy installation thanks to PoE support.
