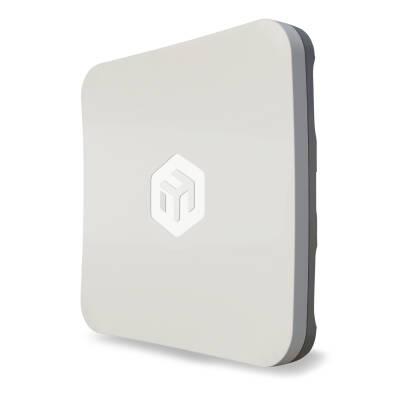

The MikroTik SXTsq-5axD is a compact wireless CPE (Customer Premises Equipment) device designed for outdoor use, offering Wi-Fi 6 (802.11ax) support. It is particularly suitable for point-to-point (PtP) or point-to-multipoint (PtMP) connections.
Model Code: SXTsq-5axD
İşlemci: Dual-core IPQ-5010, 800 MHz (ARM 64-bit architecture)
RAM: 256 MB DDR3L
Depolama: 128 MB NAND
Operating System: RouterOS v7 (License Level 4)
Ethernet Port: 1 unit 10/100/1000 Mbps Gigabit Ethernet
Wireless Features:
Frequency Range: 5 GHz (802.11a/n/ac/ax)
Maximum Data Rate: 1200 Mbps
Antenna Gain: 16 dBi integrated antenna
Wireless Chipset: QCN-6102 (Wi-Fi 6)
Chain Count: 2 (2x2 MIMO)
Power Input: Passive PoE (12–28 V)
Maximum Power Consumption:6 W
Soğutma: Pasif
Operating Temperature: Between -40°C and +70°C
Protection Class: IP55 (resistant to dust and water splashes)
Boyutlar: 129 x 129 x 34 mm
SXTsq-5axD device
24V 0.38A power adapter
Gigabit PoE injector
Hose clamp for assembly
SXTsq-5axD offers higher data speeds and lower latency thanks to Wi-Fi 6 support. With these features, it provides effective performance especially in applications requiring high bandwidth and environments with heavy data traffic. The device can provide a connection range of up to 10 km in open areas.
