SXTR&FG621-EA

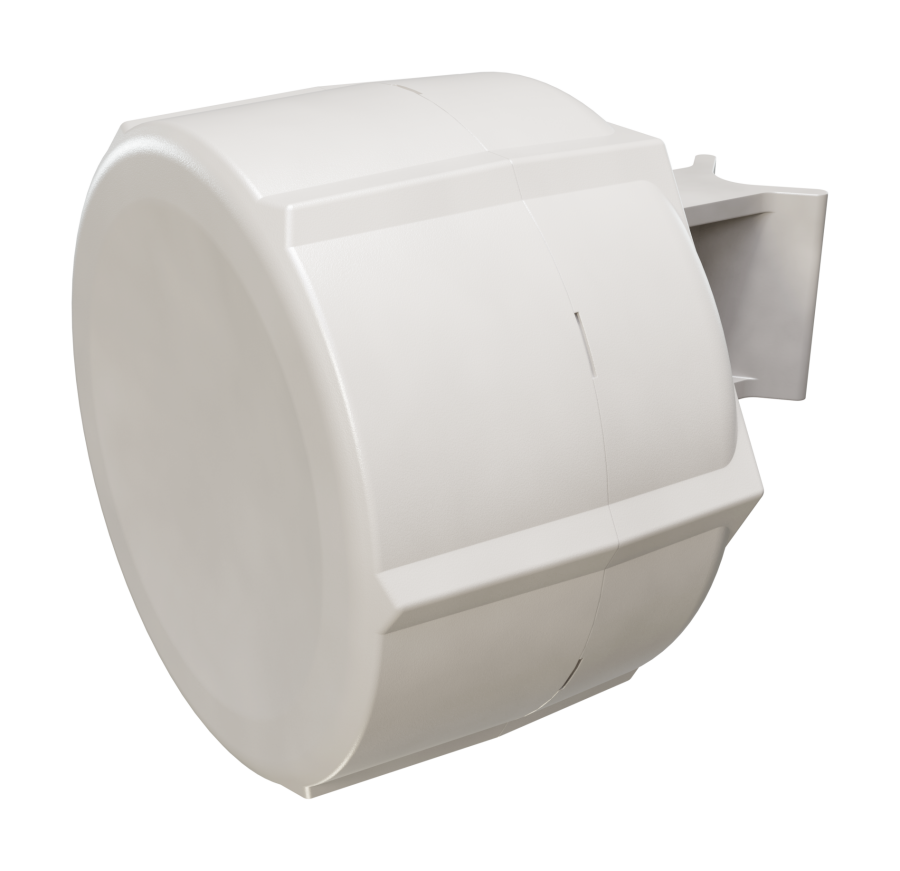

The MikroTik SXTR&FG621-EA is a compact and durable outdoor router designed to provide reliable LTE connectivity in remote areas. Modern LTE Cat6 modem technology and RouterOS v7 support offer flexible configuration capability.​

📦 Technical Specifications

• Product Code: SXTR&FG621-EA

• İşlemci: Qualcomm QCA9531, 650 MHz, 1 core

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS v7 (License Level 3)

• Boyutlar: 140 x 140 x 56 mm

• Antenna Gain: 9 dBi (60° beamwidth)

• Operating Temperature: -40°C to +60°C

• MTBF: Approximately 200,000 hours @ 25°C​

📡 LTE and Mobile Network Support

• LTE Category: 6 (Cat6)

• Download Speed: 300 Mbps

• Loading Speed: 50 Mbps

• LTE Band Support:

  • FDD: Band 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)

  • TDD: Band 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)

• 3G Band Support: Band 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)

• SIM Slot: 2 pieces of Micro SIM (for backup connection)

• Modem: R11e-LTE6​

🔌 Connection and Power

• Ethernet Ports: 2 units of 10/100 Mbps port

  • Ether1: PoE-in (802.3af/at)

  • Ether2: PoE-out (Passive PoE)

• Input Voltage: 12–57 V (PoE)

• Power Consumption:

  • Maksimum: 22 W

  • Maximum (with PoE-out)5 W

• Soğutma: Passive (fanless)
