S-85DLC05D

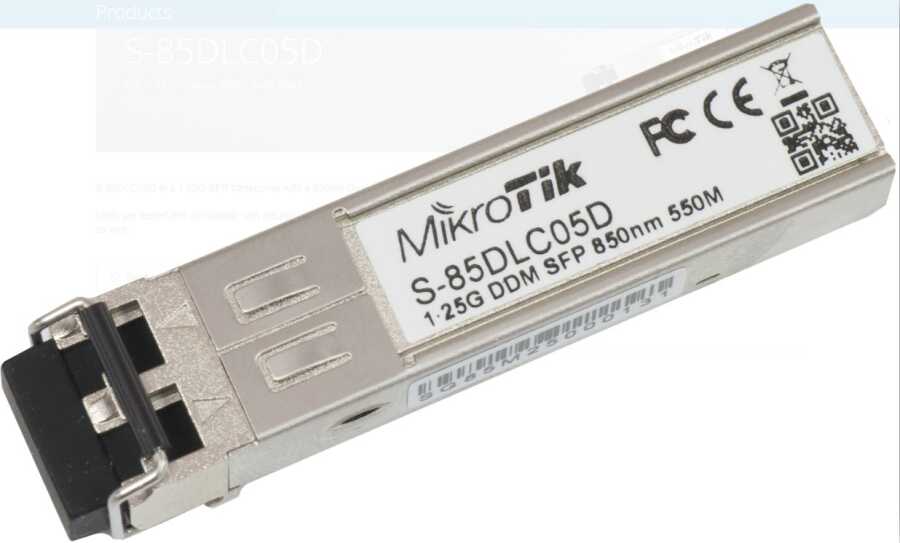

MikroTik S-85DLC05D, a 1.25 Gbps speed, designed for multi-mode fiber connectionsSFP (Small Form-factor Pluggable)It is a transceiver module. It provides an economical and reliable solution for short-distance fiber connections.

🔧 Technical Specifications

• Product Code: S-85DLC05D

• Data Rate: 1.25 Gbps

• Maximum Distance: 550 meters (with multimode fiber)

• Wavelength: 850 nm

• Connector Type: Dual LC UPC

• Mod: Multi Mode (MM)

• Format: SFP

• DDM (Digital Diagnostic Monitoring): Desteklenir

• Operating Temperature: -40°C to +85°C

• Uyumluluk: Tested with RB260GS, RB2011LS, RB2011LS-IN, RB2011UAS-IN, RB2011UAS-RM, RB2011UAS-2HnD, RB2011UAS-2HnD-IN, CCR1036-12G-4S, and other MikroTik devices with 1G SFP slots. Also compatible with non-MikroTik SFP devices.

📦 Box Contents

• 1 unit of S-85DLC05D SFP module

💡 Usage Areas

• Short Distance Fiber Connections: It provides cost-effective and low-latency fiber connections between devices located in the same or adjacent racks.

• Gigabit Ethernet Applications: It is used in network infrastructures that require data transmission at a speed of 1.25 Gbps.

• DDM Support: It enables monitoring of parameters such as temperature, voltage, and optical power.
