RBSXTsq2nD SQ Lite2

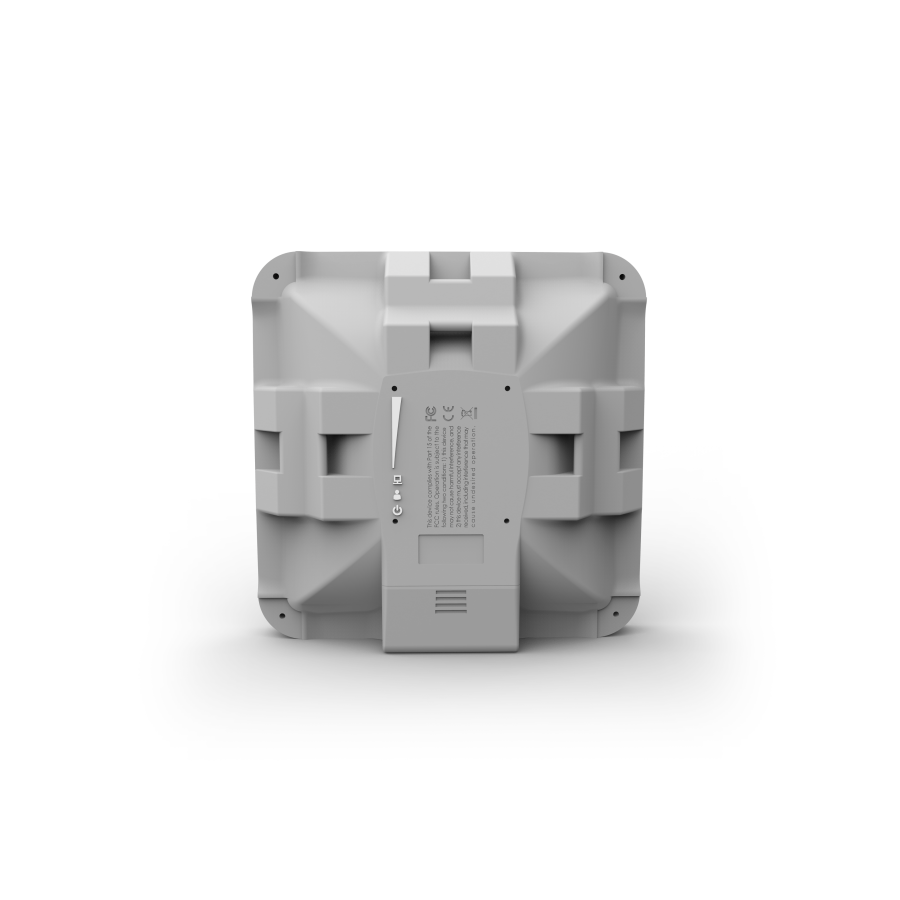

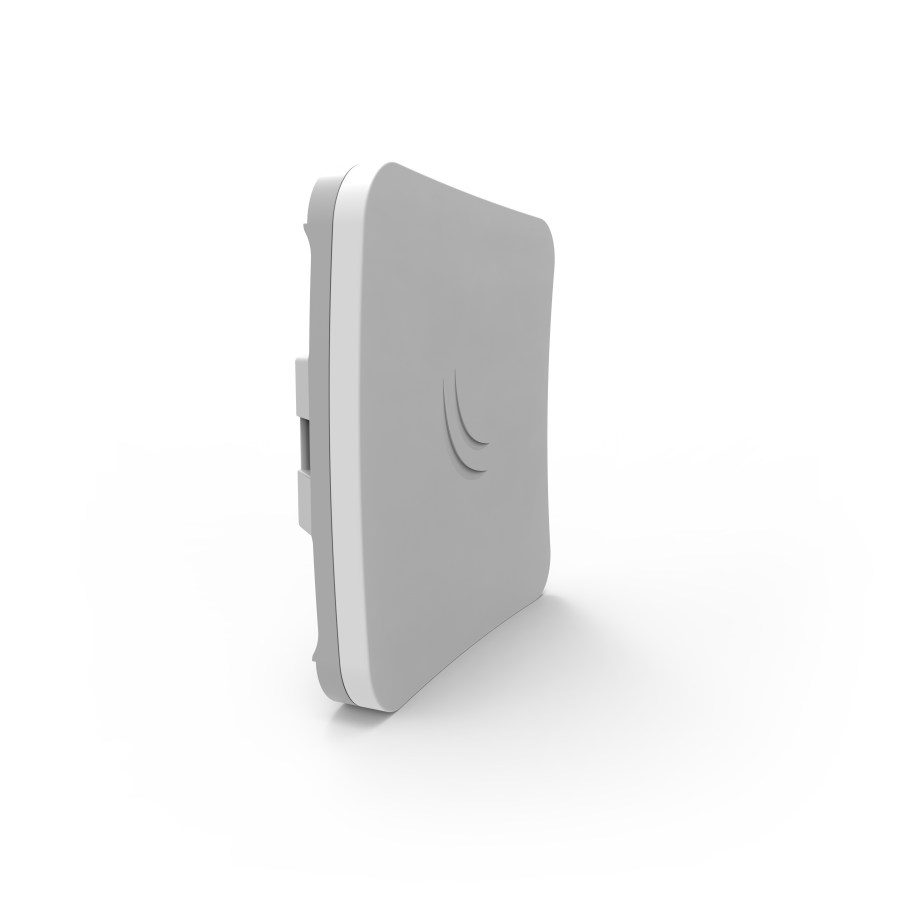

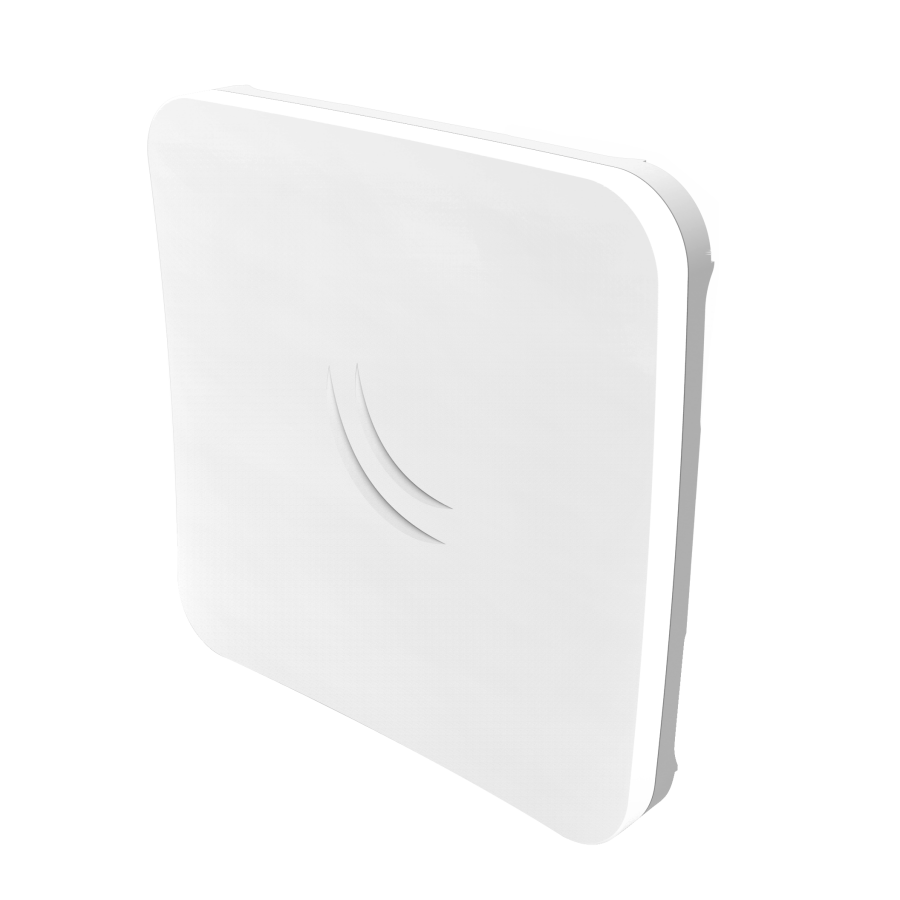

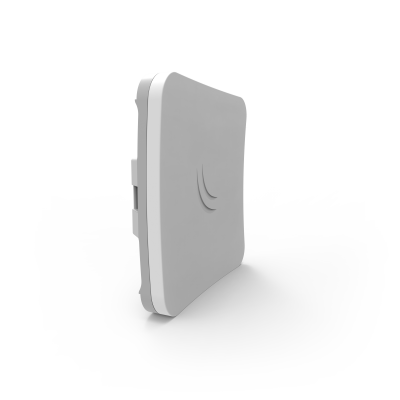

MikroTik SXTsq Lite2(model code:RBSXTsq2nD), it is a compact and lightweight outdoor wireless device operating in the 2.4 GHz frequency band. Thanks to its integrated 10 dBi directional antenna, it is suitable for point-to-point (PtP) connections or use as a customer premise equipment (CPE). Compared to the previous model, the SXT Lite2, the antenna design has been improved and the physical size has been significantly reduced—the device is half as thick as the previous model.

🔧 Technical Specifications

• Product Code: RBSXTsq2nD

• İşlemci: QCA9533, single-core, 650 MHz

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS, License Level 3

• Boyutlar: 129 x 129 x 34 mm

• Operating Temperature: -40°C to +70°C

• Protection Class: IP54

• MTBF: Approximately 100,000 hours @ 25°C

⚡ Power and Connection

• Ethernet Port: 1 x 10/100 Mbps

• Power Input: 1 x DC (PoE-IN)

• PoE Support: Passive PoE, 10–30 V

• Maximum Power Consumption:5 W

• Soğutma: Pasif

📡 Wireless Features

• Frequency Band: 2.4 GHz

• Wireless Standards: 802.11b/g/n (Wi-Fi 4)

• Maximum Data Rate: 300 Mbps

• Antenna Gain: 10 dBi

• Chain Count: 2 (Dual Chain)

• Wireless Chipset: QCA9533

📦 Box Contents

• SXTsq Lite2 device

• 24V 0.38A power adapter

• Metal mounting ring

• PoE injector
